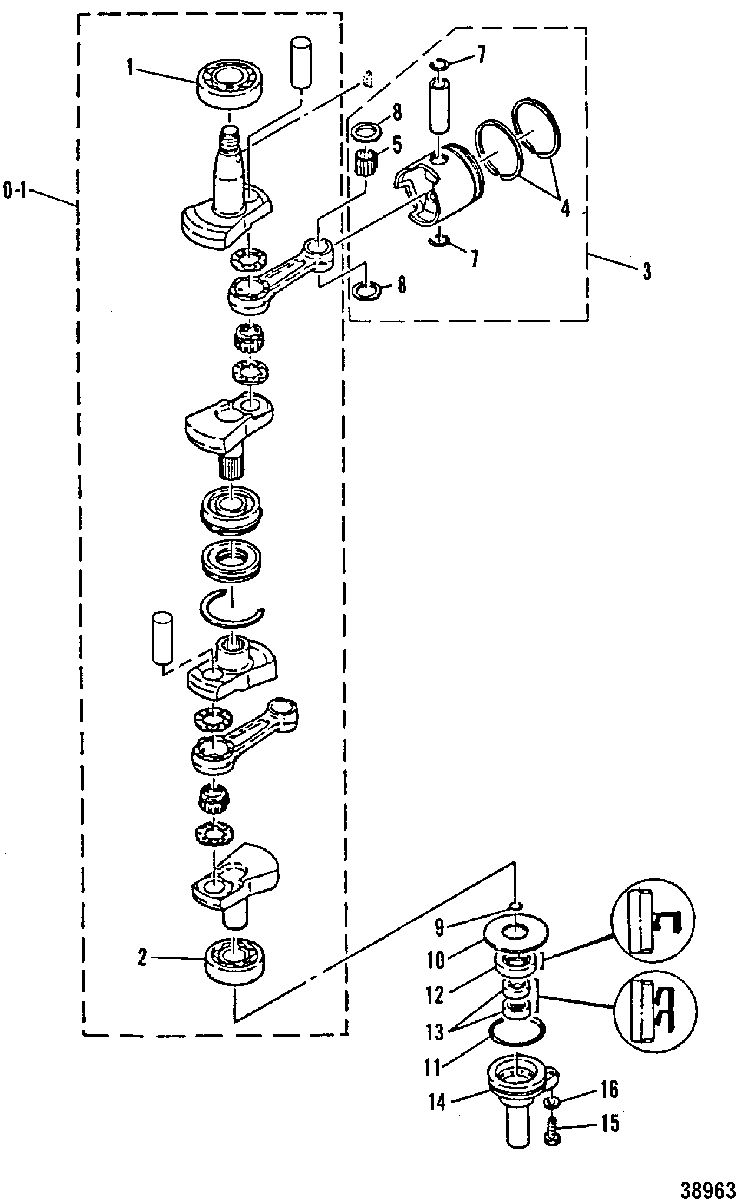

CRANKSHAFT AND PISTON для Mariner - 30A 689-411947 THRU 689-550100 (EL)

  • №
    Артикул
    Название
  • -
    463-9068M CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 1
    30-96659T BEARING, UPPER
    BEARING, UPPER
  • 2
    30-18971T BEARING, LOWER
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
    BEARING, LOWER
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
  • 2
    30-82307T BEARING, LOWER
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
    BEARING, LOWER
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
  • 3
    761-8484M PISTON ASSEMBLY
    (STANDARD)
    PISTON ASSEMBLY
    (STANDARD)
  • 3
    761-8485T PISTON ASSEMBLY
    (1ST OVERSIZE 72.25MM)
    PISTON ASSEMBLY
    (1ST OVERSIZE 72.25MM)
  • 3
    761-8486T PISTON ASSEMBLY
    (2ND OVERSIZE 72.50MM)
    PISTON ASSEMBLY
    (2ND OVERSIZE 72.50MM)
  • 4
    39-14235T RING SET, Piston
    (STANDARD)
    RING SET, Piston
    (STANDARD)
  • 4
    39-84747T RING SET, Piston
    (1ST OVERSIZE 72.25MM)
    RING SET, Piston
    (1ST OVERSIZE 72.25MM)
  • 4
    39-14236T RING SET, Piston
    (2ND OVERSIZE 72.50MM)
    RING SET, Piston
    (2ND OVERSIZE 72.50MM)
  • 5
    29-84452M BEARING, NEDDLE
    BEARING, NEDDLE
  • 7
    53-81264M CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 8
    12-84750M WASHER
    WASHER
  • 9
    25-82268M O-RING
    O-RING
  • 10
    23-81842M SPACER
    SPACER
  • 11
    25-84089M O-RING
    O-RING
  • 12
    26-19133M SEAL, Oil, LOWER
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
    SEAL, Oil, LOWER
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
  • 12
    26-84752M SEAL, Oil, LOWER
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
    SEAL, Oil, LOWER
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
  • 13
    26-83347M SEAL, Oil, LOWER
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
    SEAL, Oil, LOWER
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
  • 13
    26-83347M SEAL, Oil, LOWER
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
    SEAL, Oil, LOWER
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
  • 14
    8M0059029 HOUSING, LOWER OIL SEAL
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
    HOUSING, LOWER OIL SEAL
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
  • 14
    8M0059029 HOUSING, LOWER OIL SEAL
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
    HOUSING, LOWER OIL SEAL
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
  • 15
    10-94526M BOLT
    BOLT
  • 16
    12-82214M WASHER
    WASHER
  • -
    27-96658M GASKET SET
    GASKET SET
