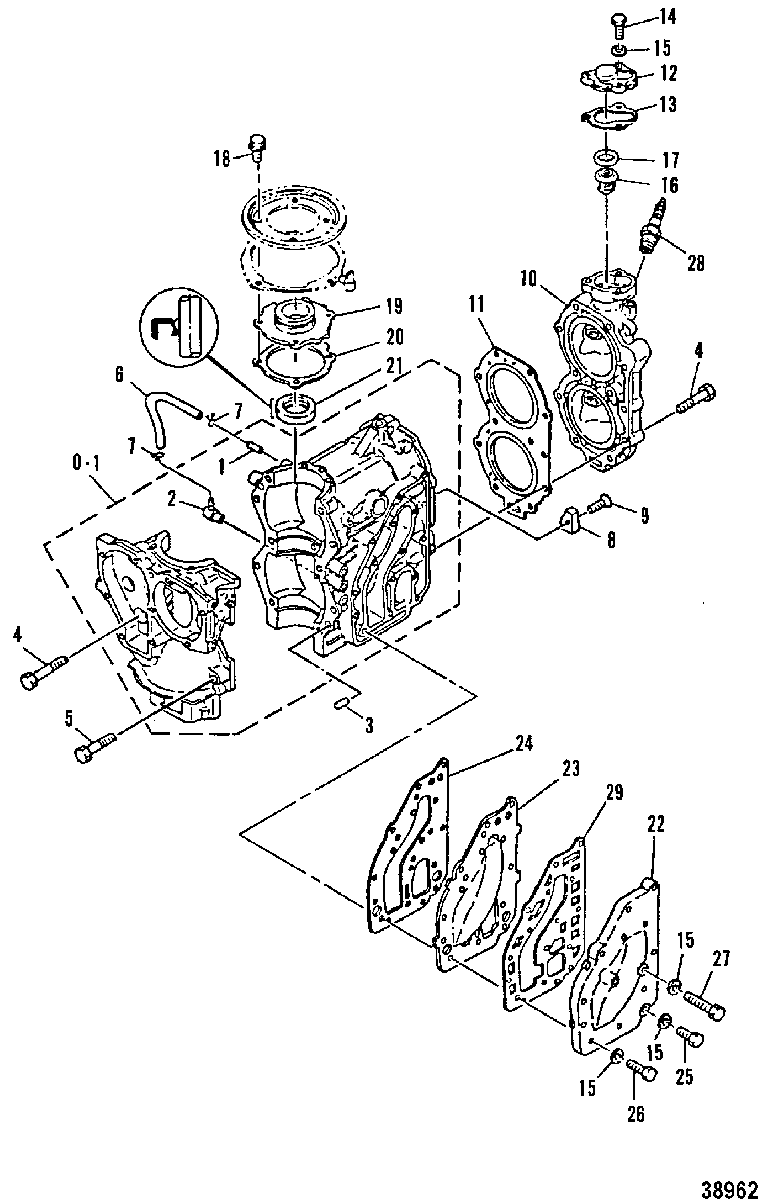

CRANKCASE AND CYLINDER HEAD для Mariner - 30A 689-411947 THRU 689-550100 (EL)
-
№АртикулНазвание
-
-870-9371M CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
122-80122M FITTING, DRAINFITTING, DRAIN
-
221-80727M CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
317-82364M PIN, DowelPIN, Dowel
-
410-41885M BOLT, WITH WASHERBOLT, WITH WASHER
-
510-8M0101617 BOLT, (M8 x 55), WITH WASHERBOLT, (M8 x 55), WITH WASHER
-
632-811045M HOSEHOSE
-
754-82046M CLAMP, HOSECLAMP, HOSE
-
897-84732M ANODEANODE
-
910-95209M SCREWSCREW
-
10968-7194M CYLINDER HEADCYLINDER HEAD
-
1127-19138 GASKET, CYLINDER HEAD
SN# M-030662, ML-329959, E-108559, EL-418520 & UpGASKET, CYLINDER HEAD
SN# M-030662, ML-329959, E-108559, EL-418520 & Up -
1127-19138 GASKET, CYLINDER HEAD
SN# M-030661, ML-329958, E-108558, EL-418519 & BelowGASKET, CYLINDER HEAD
SN# M-030661, ML-329958, E-108558, EL-418519 & Below -
1281030M COVER, THERMOSTATCOVER, THERMOSTAT
-
1327-81031 GASKET, COVERGASKET, COVER
-
1410-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1512-82214M WASHERWASHER
-
1695679M THERMOSTATTHERMOSTAT
-
1712-81835M WASHERWASHER
-
1810-84735M BOLT , WITH WASHERBOLT , WITH WASHER
-
1984736M HOUSING, UPPER OIL SEALHOUSING, UPPER OIL SEAL
-
2027-84737M GASKET, OIL SEAL HOUSINGGASKET, OIL SEAL HOUSING
-
2126-811021M SEAL, Oil, UPPERSEAL, Oil, UPPER
-
2295680M COVER, Outer ExhaustCOVER, Outer Exhaust
-
2395681M COVER, Inner ExhaustCOVER, Inner Exhaust
-
2427-84741M GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
2510-82405M BOLTBOLT
-
2610-83285M BOLTBOLT
-
2710-84931M BOLTBOLT
-
2833-8M0114739 SPARK PLUGSPARK PLUG
-
2927-96656M GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
-95678M POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-96658M GASKET SETGASKET SET
