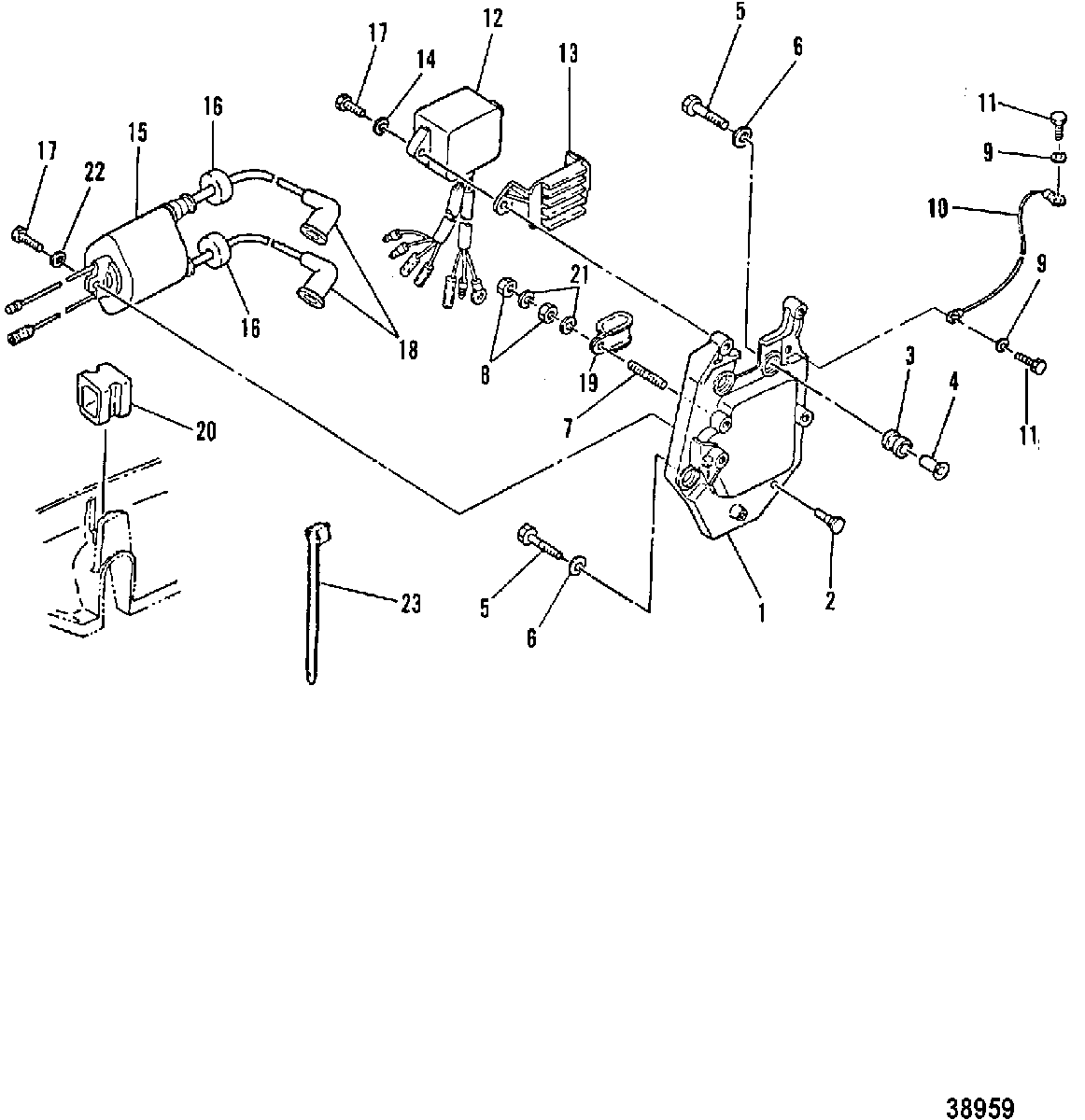

C.D.I. IGNITION COMPONENTS для Mariner - 30A 689-411947 THRU 689-550100 (EL)

№

Артикул

Название
1

84868M BRACKET, C.D.I. UNIT MOUNTING

BRACKET, C.D.I. UNIT MOUNTING

0 ₽
2

84869M DAMPER

DAMPER

0 ₽
3

25-881304 DAMPER
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

DAMPER
SN# M-030662, ML-329959, E-108559, EL-418520 & Up

280 ₽
3

81523M DAMPER
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

DAMPER
SN# M-030661, ML-329958, E-108558, EL-418519 & Below

0 ₽
4

23-804344003 BUSHING

BUSHING

440 ₽
5

10-82405M BOLT

BOLT

0 ₽
6

12-83769M WASHER

WASHER

0 ₽
7

16-84870M STUD

STUD

0 ₽
8

11-82389M NUT

NUT

0 ₽
9

13-82212M LOCKWASHER

LOCKWASHER

40 ₽
10

84-84871M WIRE, GROUND

WIRE, GROUND

0 ₽
11

10-91772M BOLT

BOLT

150 ₽
12

84872T CDI UNIT ASSEMBLY

CDI UNIT ASSEMBLY

32 310 ₽
13

84873M BRACKET, C.D.I. UNIT

BRACKET, C.D.I. UNIT

0 ₽
14

12-82214M WASHER

WASHER

30 ₽
15

84874T COIL, Ignition

COIL, Ignition

49 500 ₽
16

25-82069M GROMMET

GROMMET

230 ₽
17

10-82405M BOLT

BOLT

0 ₽
18

85-815119M CAP, Spark Plug, NOISE SUPPRESSOR
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up

CAP, Spark Plug, NOISE SUPPRESSOR
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up

4 410 ₽
18

85-815119M PROTECTER, NOISE SUPPRESSOR
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below

PROTECTER, NOISE SUPPRESSOR
SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below

4 410 ₽
18

85-63709A1 CAP ASSEMBLY, Spark Plug

CAP ASSEMBLY, Spark Plug

550 ₽
19

54-96653M CLAMP, WIRE

CLAMP, WIRE

0 ₽
20

25-84876M GROMMET

GROMMET

420 ₽
21

13-82212M LOCKWASHER

LOCKWASHER

40 ₽
22

12-82214M WASHER
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

WASHER
SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up

30 ₽
23

81541M BAND, SWITCH CORD
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up

BAND, SWITCH CORD
SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up

0 ₽
