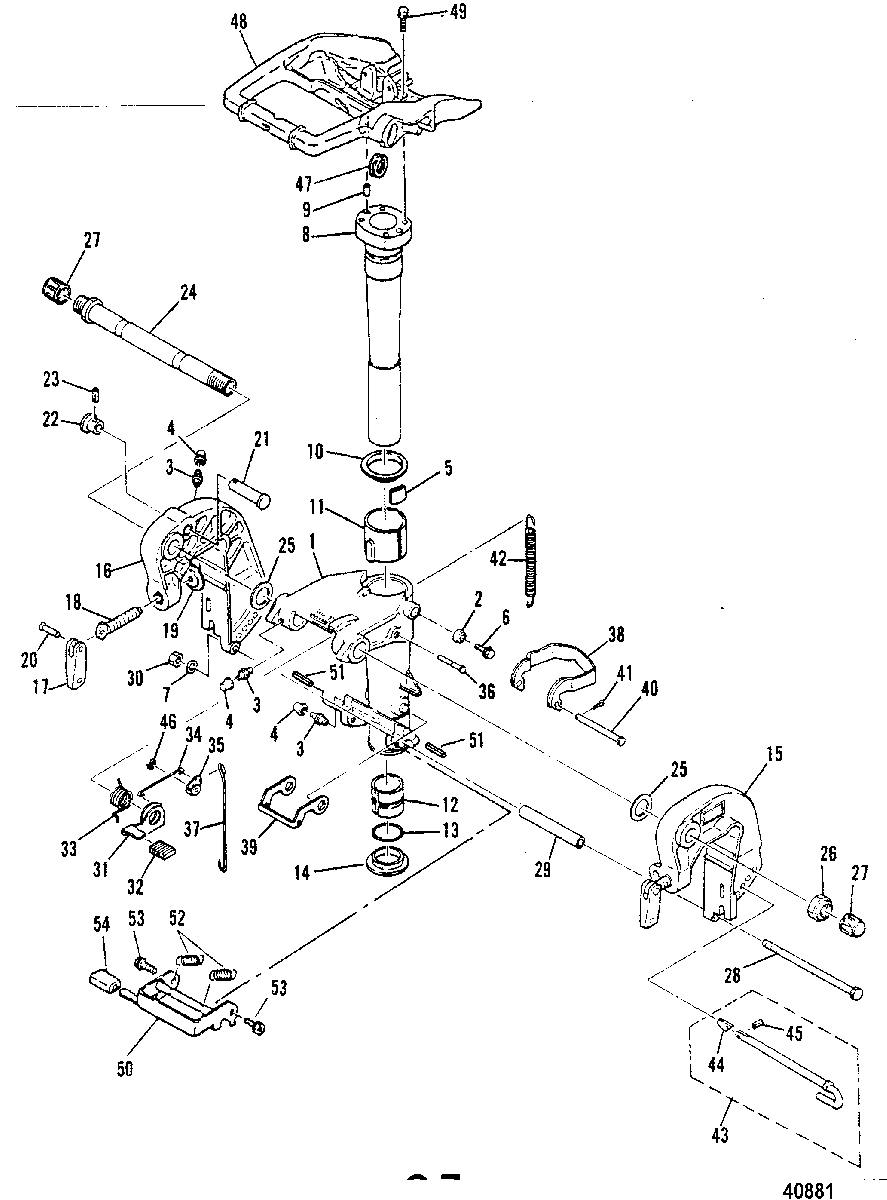

BRACKETS(M-007186/ML-308701/E-101516/EL-404001 and Up) для Mariner - 30A 689-401216 THRU 411946
-
№АртикулНазвание
-
11485-9246M SWIVEL BRACKET
SN# M-018821/ML-318387/E-104276/EL-409416 & UpSWIVEL BRACKET
SN# M-018821/ML-318387/E-104276/EL-409416 & Up -
11485-9246M SWIVEL BRACKET
SN# M-007186/ML-308701/E-101516/EL-404001 THRU M-018820/ML-318386/E-104275/EL-409415SWIVEL BRACKET
SN# M-007186/ML-308701/E-101516/EL-404001 THRU M-018820/ML-318386/E-104275/EL-409415 -
226-91637M SEALSEAL
-
322-82369M FITTING, GREASEFITTING, GREASE
-
481439M CAP, GREASE FITTINGCAP, GREASE FITTING
-
580633M PLATE, FRICTIONPLATE, FRICTION
-
110-96382M SCREWSCREW
-
712-82217M WASHER, LOCKWASHER, LOCK
-
884833M SHAFT, STEERING PIVOTSHAFT, STEERING PIVOT
-
917-82368M PIN, DOWELPIN, DOWEL
-
1012-81873M WASHERWASHER
-
1123-81964M BUSHING, PIVOT SHAFT-UPPERBUSHING, PIVOT SHAFT-UPPER
-
1223-81961M BUSHING, PIVOT SHAFT-LOWERBUSHING, PIVOT SHAFT-LOWER
-
1325-82274M O-RING, PIVOT SHAFT BUSHINGO-RING, PIVOT SHAFT BUSHING
-
1423-81959M BUSHINGBUSHING
-
151484-9797M BRACKET, PORTBRACKET, PORT
-
161484-8246M BRACKET, STARBOARDBRACKET, STARBOARD
-
17809959M HANDLE, TRANSOM CLAMP SCREWHANDLE, TRANSOM CLAMP SCREW
-
1810-81756M SCREW, TRANSOM CLAMPSCREW, TRANSOM CLAMP
-
1912-80638M PAD, TRANSOM CLAMP SCREWPAD, TRANSOM CLAMP SCREW
-
2017-81888M PIN, ROLLPIN, ROLL
-
2184835M SHAFT, TILT STOPSHAFT, TILT STOP
-
2295650M KNOB, TILT STOP SHAFTKNOB, TILT STOP SHAFT
-
2317-82148M PIN, ROLLPIN, ROLL
-
2410-91639M BOLT, STEERINGBOLT, STEERING
-
2512-81836M WASHERWASHER
-
2611-879172252 NUTNUT
-
27811914M CAPCAP
-
2810-82924M BOLTBOLT
-
2923-19108M SPACER, CLAMP BRACKETSPACER, CLAMP BRACKET
-
3011-82382M NUTNUT
-
3191640M LEVER, LOCK/RELEASELEVER, LOCK/RELEASE
-
3291641M COVER, LEVERCOVER, LEVER
-
3324-91642M SPRING, TENSIONSPRING, TENSION
-
3491643M LINK, REVERSE LOCK LEVERLINK, REVERSE LOCK LEVER
-
3580648M CAM, TILTCAM, TILT
-
3617-19109M PINPIN
-
3780645M ROD, REVERSE LOCK LEVERROD, REVERSE LOCK LEVER
-
3884837M HOOK, REVERSE LOCK-REARHOOK, REVERSE LOCK-REAR
-
3980643M HOOK, REVERSE LOCK-FRONTHOOK, REVERSE LOCK-FRONT
-
4017-81882M PINPIN
-
4118-82125M COTTER PINCOTTER PIN
-
4224-19110M SPRING, REVERSE LOCKSPRING, REVERSE LOCK
-
4317-94569M PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
4482857M PLATE, StopperPLATE, Stopper
-
4517-82144M PIN, ROLLPIN, ROLL
-
4653-82330M RING, SnapRING, Snap
-
4725-82070M GROMMETGROMMET
-
4819113M BRACKET, STEERINGBRACKET, STEERING
-
4910-84830M BOLTBOLT
-
5095551M LEVER, SHALLOW WATER DRIVE
(MANUAL) SN# M-018821/ML-318387 & UpLEVER, SHALLOW WATER DRIVE
(MANUAL) SN# M-018821/ML-318387 & Up -
5117-95552M PIN
(MANUAL) SN# M-018821/ML-318387 & UpPIN
(MANUAL) SN# M-018821/ML-318387 & Up -
5224-95553M SPRING
(MANUAL) SN# M-018821/ML-318387 & UpSPRING
(MANUAL) SN# M-018821/ML-318387 & Up -
5310-95554M BOLT
(MANUAL) SN# M-018821/ML-318387 & UpBOLT
(MANUAL) SN# M-018821/ML-318387 & Up -
5411932M COVER
(MANUAL) SN# M-018821/ML-318387 & UpCOVER
(MANUAL) SN# M-018821/ML-318387 & Up
