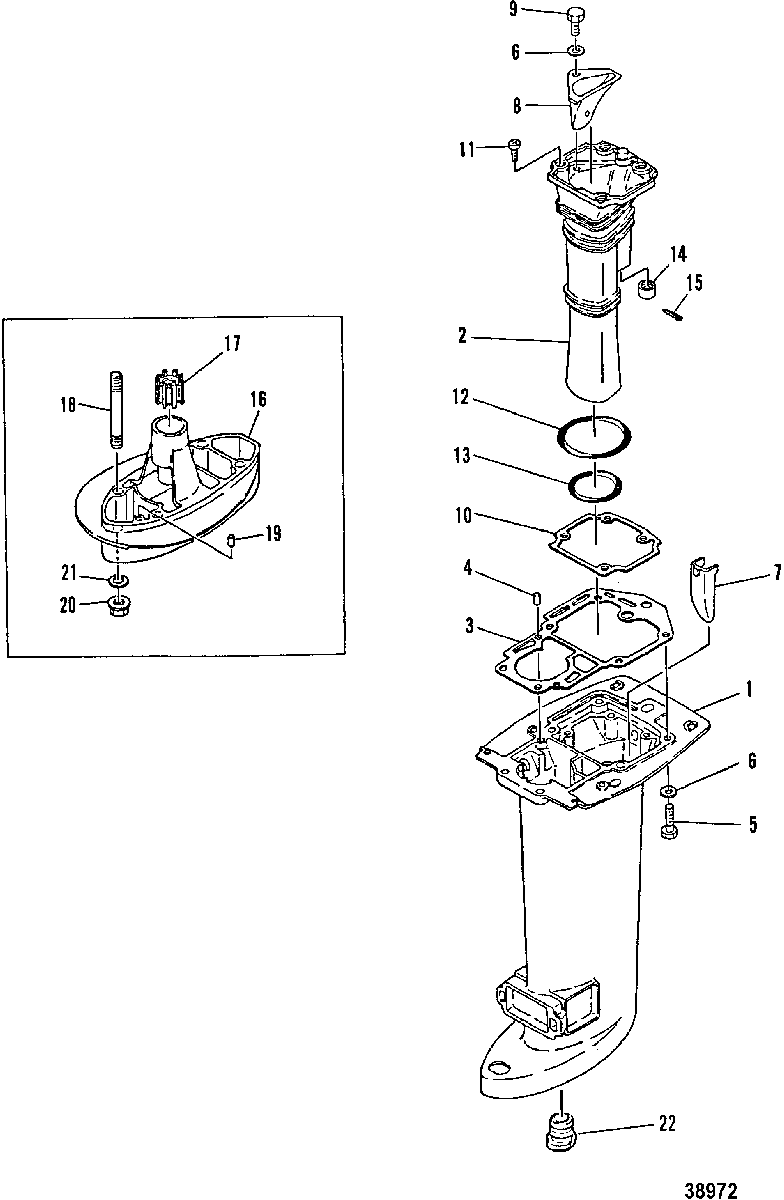

DRIVESHAFT HOUSING для Mariner - 30A 689-401216 THRU 411946

  • №
    Артикул
    Название
  • 1
    1587-9244M HOUSING, Driveshaft
    (SHORT) SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    HOUSING, Driveshaft
    (SHORT) SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 1
    1587-7842M HOUSING, Driveshaft
    (SHORT) SN# M-018820/ML-318386/E-104275/EL-409415 & Below
    HOUSING, Driveshaft
    (SHORT) SN# M-018820/ML-318386/E-104275/EL-409415 & Below
  • 1
    1587-7843M HOUSING, Driveshaft
    (LONG/X-LONG)
    HOUSING, Driveshaft
    (LONG/X-LONG)
  • 2
    811170M MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 3
    27-84775 GASKET, DRIVESHAFT HOUSING
    GASKET, DRIVESHAFT HOUSING
  • 4
    17-82364M PIN, Dowel
    PIN, Dowel
  • 5
    10-95416M BOLT
    BOLT
  • 6
    12-82217M WASHER
    WASHER
  • 7
    84776M GUIDE, Exhaust
    (SHORT)
    GUIDE, Exhaust
    (SHORT)
  • 7
    84777M GUIDE, Exhaust
    (LONG/X-LONG)
    GUIDE, Exhaust
    (LONG/X-LONG)
  • 8
    84778M GUIDE, Exhaust
    GUIDE, Exhaust
  • 9
    10-95206M BOLT
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    BOLT
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
  • 9
    10-95206M BOLT
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
    BOLT
    SN# M-018820/ML-318386/E-104275/EL-409415 & Below
  • 10
    27-826991M GASKET, EXHAUST MANIFOLD
    GASKET, EXHAUST MANIFOLD
  • 11
    10-83870M SCREW
    SCREW
  • 12
    26-84780M SEAL, UPPER
    SEAL, UPPER
  • 13
    26-84781M SEAL, LOWER
    SEAL, LOWER
  • 14
    26-97635M SEAL, WATER TUBE
    (SHORT) SN# M-008626/E-200101 & Up
    SEAL, WATER TUBE
    (SHORT) SN# M-008626/E-200101 & Up
  • 14
    26-84782M SEAL, WATER TUBE
    (SHORT) SN# (M-008625/E-200100 & Below
    SEAL, WATER TUBE
    (SHORT) SN# (M-008625/E-200100 & Below
  • 14
    26-84782M SEAL
    (LONG/X-LONG
    SEAL
    (LONG/X-LONG
  • 15
    18-82132M COTTER PIN
    COTTER PIN
  • 16
    84783M EXTENSION
    (X-LONG)
    EXTENSION
    (X-LONG)
  • 17
    23-84784M BUSHING, DRIVESHAFT
    (X-LONG)
    BUSHING, DRIVESHAFT
    (X-LONG)
  • 18
    16-84785M STUD
    (X-LONG)
    STUD
    (X-LONG)
  • 19
    17-82364M PIN, Dowel
    (X-LONG)
    PIN, Dowel
    (X-LONG)
  • 20
    11-84786M NUT
    (X-LONG)
    NUT
    (X-LONG)
  • 21
    12-82220M WASHER
    (X-LONG)
    WASHER
    (X-LONG)
  • 22
    26-43114M SEAL
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
    SEAL
    SN# M-018821/ML-318387/E-104276/EL-409416 & Up
