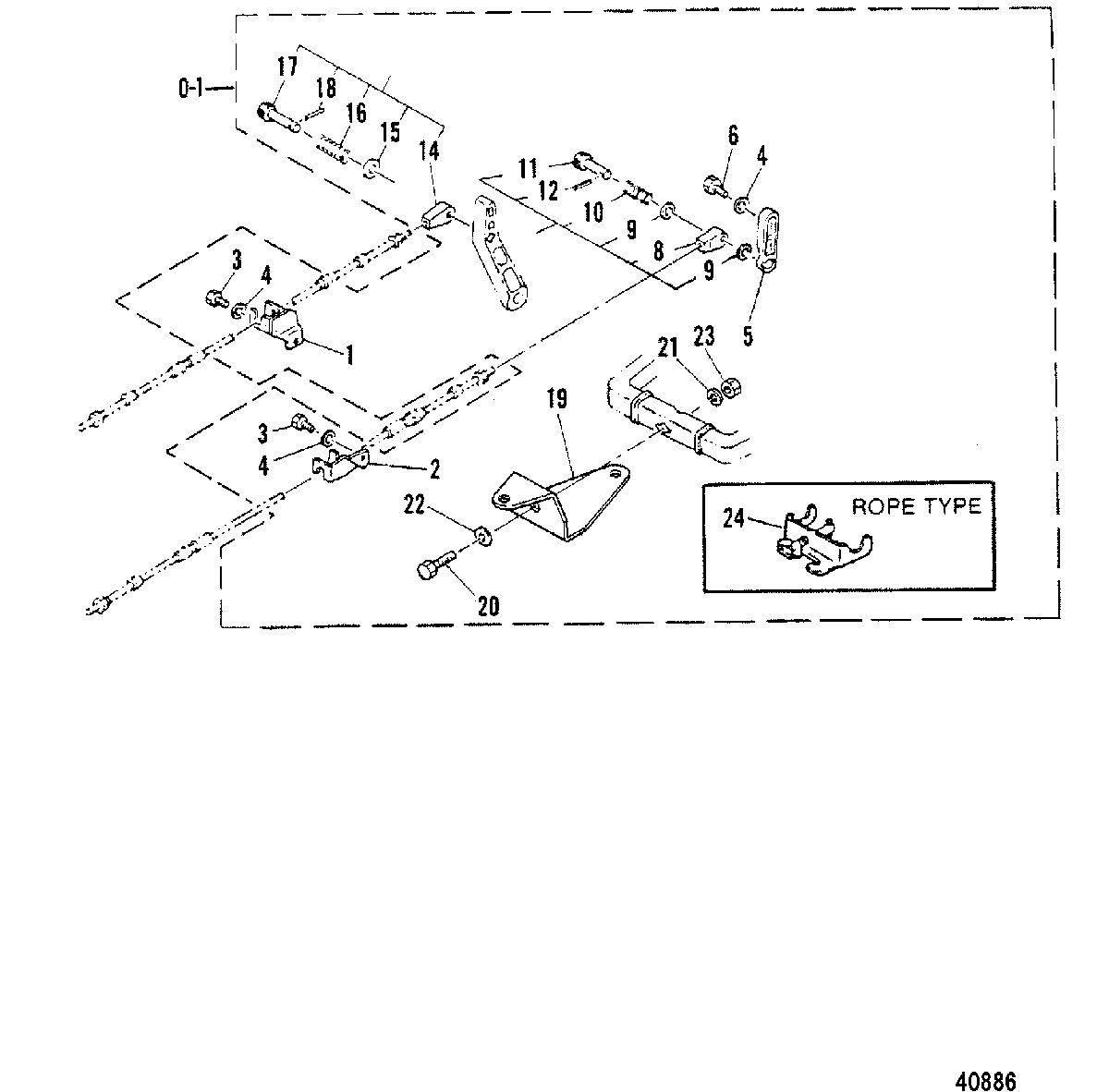

REMOTE CONTROL ATTACHING KIT для Mariner - 30A 689-401216 THRU 411946

  • №
    Артикул
    Название
  • 0-1
    43991A1 ATTACHING KIT
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    ATTACHING KIT
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • 0-1
    8M0116998 ATTACHING KIT
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    ATTACHING KIT
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • 1
    84221M BRACKET, GEAR SHIFT
    BRACKET, GEAR SHIFT
  • 2
    83717M BRACKET, THROTTLE
    BRACKET, THROTTLE
  • 3
    10-826957M BOLT
    BOLT
  • 4
    12-82214M WASHER
    WASHER
  • 5
    84222M LEVER, Throttle
    LEVER, Throttle
  • 6
    10-91772M BOLT
    BOLT
  • 7
    83933M END, Cable, THROTTLE
    END, Cable, THROTTLE
  • 8
    83934M END, Cable
    END, Cable
  • 9
    12-82216M WASHER
    WASHER
  • 10
    24-83725M SPRING
    SPRING
  • 11
    17-814499M HOOK
    HOOK
  • 12
    17-82146M PIN, ROLL
    PIN, ROLL
  • 13
    83719M END, Cable, SHIFT
    END, Cable, SHIFT
  • 14
    83720M END, Cable
    END, Cable
  • 15
    12-82216M WASHER
    WASHER
  • 16
    24-83721M SPRING
    SPRING
  • 17
    17-814500M HOOK
    HOOK
  • 18
    17-82146M PIN, ROLL
    PIN, ROLL
  • 19
    91635M BRACKET, STEERING
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
    BRACKET, STEERING
    SN# M-007186/ML-308701/E-101516/EL-404001 & Up
  • 19
    11670T BRACKET, STEERING
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
    BRACKET, STEERING
    SN# M-007185/ML-308700/E-101515/EL-404000 & Below
  • 20
    10-91636M BOLT
    BOLT
  • 21
    13-82218M LOCKWASHER
    LOCKWASHER
  • 22
    12-82220M WASHER
    WASHER
  • 23
    11-81785M LOCKNUT
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
    LOCKNUT
    SN# M-010646/ML-311476/E-102356/EL-405456 & Up
  • 23
    11-82395M NUT
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
    NUT
    SN# M-010645/ML-311475/E-102355/EL-405455 & Below
