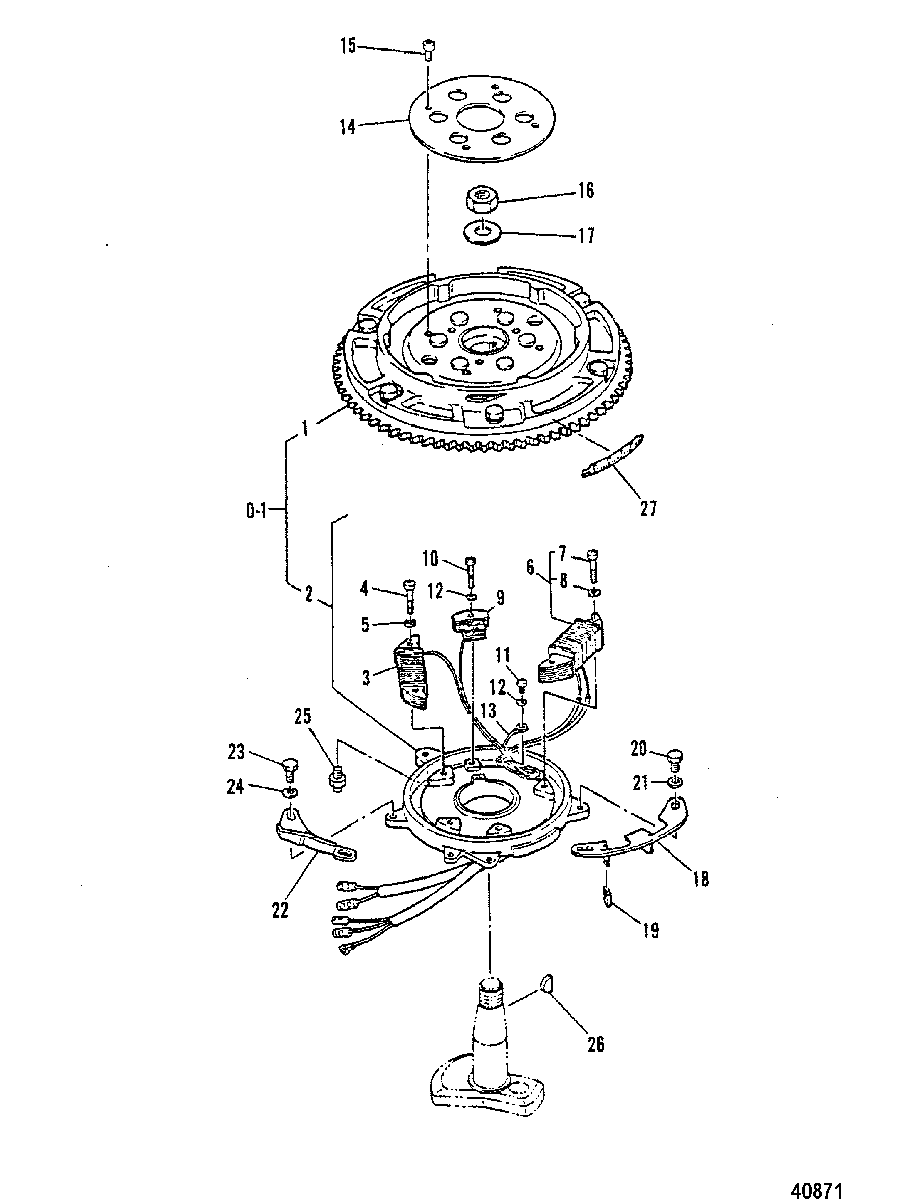

C.D.I MAGNETO ASSEMBLY для Mariner - 30A 689-401216 THRU 411946

№

Артикул

Название
0-1

253-8483M CDI MAGNETO ASSEMBLY
(ELECTRIC WITH LIGHTING COIL) SN# M-007186/ML-308701/E-101516/EL-404001 & Up

CDI MAGNETO ASSEMBLY
(ELECTRIC WITH LIGHTING COIL) SN# M-007186/ML-308701/E-101516/EL-404001 & Up

0 ₽
0-1

253-7850M MAGNETO ASSEMBLY
(ELECTRIC WITH LIGHTING COIL) SN# M-007185/ML-308700/E-101515/EL-404000 & Below

MAGNETO ASSEMBLY
(ELECTRIC WITH LIGHTING COIL) SN# M-007185/ML-308700/E-101515/EL-404000 & Below

0 ₽
0-1

253-8483M CDI MAGNETO ASSEMBLY
(MANUAL WITH LIGHTING COIL)

CDI MAGNETO ASSEMBLY
(MANUAL WITH LIGHTING COIL)

0 ₽
1

253-8482M FLYWHEEL
(ELECTRIC) SN# M-007186/ML-308701/E-101516/EL-404001 & Up

FLYWHEEL
(ELECTRIC) SN# M-007186/ML-308701/E-101516/EL-404001 & Up

84 620 ₽
1

253-8482M FLYWHEEL
(MANUAL) SN# M-007186/ML-308701/E-101516/EL-404001 & Up

FLYWHEEL
(MANUAL) SN# M-007186/ML-308701/E-101516/EL-404001 & Up

84 620 ₽
1

253-7851M FLYWHEEL
(ELECTRIC AND MANUAL) SN# M-007185/ML-308700/E-101515/EL-404000 & Below

FLYWHEEL
(ELECTRIC AND MANUAL) SN# M-007185/ML-308700/E-101515/EL-404000 & Below

0 ₽
2

811176M BASE ASSEMBLY
(WITHOUT LIGHTING COIL)

BASE ASSEMBLY
(WITHOUT LIGHTING COIL)

0 ₽
2

811176M BASE ASSEMBLY
(WITH LIGHTING COIL)

BASE ASSEMBLY
(WITH LIGHTING COIL)

0 ₽
3

84879T COIL, IGNITION

COIL, IGNITION

13 890 ₽
4

10-83108M SCREW

SCREW

0 ₽
5

13-82186M WASHER, LOCK

WASHER, LOCK

0 ₽
6

84881M COIL ASSEMBLY, Lighting

COIL ASSEMBLY, Lighting

0 ₽
7

10-83108M SCREW

SCREW

0 ₽
8

13-82186M WASHER, LOCK

WASHER, LOCK

0 ₽
9

84877M PULSER

PULSER

0 ₽
10

253-8482M FLYWHEEL

FLYWHEEL

84 620 ₽
11

10-82499M SCREW

SCREW

0 ₽
12

13-82206M LOCKWASHER, LOCK

LOCKWASHER, LOCK

70 ₽
13

84-84883M WIRE, GROUND

WIRE, GROUND

0 ₽
14

96649M COVER

COVER

0 ₽
15

10-82436M BOLT
SN# M-007186/ML-308701/E-101516/EL-404001 & Up

BOLT
SN# M-007186/ML-308701/E-101516/EL-404001 & Up

0 ₽
15

10-83523M SCREW
SN# M-007185/ML-308700/E-101515/EL-404000 & Below

SCREW
SN# M-007185/ML-308700/E-101515/EL-404000 & Below

0 ₽
16

11-96650M NUT, (M16), FLYWHEEL
SN# M-007186/ML-308701/E-101516/EL-404001 & Up

NUT, (M16), FLYWHEEL
SN# M-007186/ML-308701/E-101516/EL-404001 & Up

420 ₽
16

11-893789 NUT, FLYWHEEL
SN# 00000000 THRU 00007185 SN# M-007185/ML-308700/E-101515/EL-404000 & Below

NUT, FLYWHEEL
SN# 00000000 THRU 00007185 SN# M-007185/ML-308700/E-101515/EL-404000 & Below

680 ₽
17

12-96651M WASHER
SN# M-007186/ML-308701/E-101516/EL-404001 & Up

WASHER
SN# M-007186/ML-308701/E-101516/EL-404001 & Up

100 ₽
17

12-893762 WASHER
SN# M-007185/ML-308700/E-101515/EL-404000 & Below

WASHER
SN# M-007185/ML-308700/E-101515/EL-404000 & Below

290 ₽
18

84885M STOP, MAGNETO BASE
SN# M-007186/ML-308701/E-101516/EL-404001 & Up

STOP, MAGNETO BASE
SN# M-007186/ML-308701/E-101516/EL-404001 & Up

0 ₽
18

94652M STOP, MAGNETO BASE
SN# M-007185/ML-308700/E-101515/EL-404000 & Below

STOP, MAGNETO BASE
SN# M-007185/ML-308700/E-101515/EL-404000 & Below

0 ₽
19

84886M CAP

CAP

0 ₽
20

10-84088M BOLT

BOLT

130 ₽
21

12-82214M WASHER, LOCK
SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820,ML-318386/E-104275/EL-409415

WASHER, LOCK
SN# M-010646/ML-311476/E-102356/EL-405456 THRU M-018820,ML-318386/E-104275/EL-409415

30 ₽
22

84887M CAM, THROTTLE ACCEL

CAM, THROTTLE ACCEL

2 420 ₽
23

10-84313M BOLT

BOLT

0 ₽
24

12-82211M WASHER

WASHER

40 ₽
25

84305M JOINT

JOINT

340 ₽
26

28-81915M KEY, FLYWHEEL

KEY, FLYWHEEL

490 ₽
27

37-84888M DECAL, TIMING MARK
SN# M-018820/ML-318386/E-104275/EL-409415 & Below

DECAL, TIMING MARK
SN# M-018820/ML-318386/E-104275/EL-409415 & Below

0 ₽
