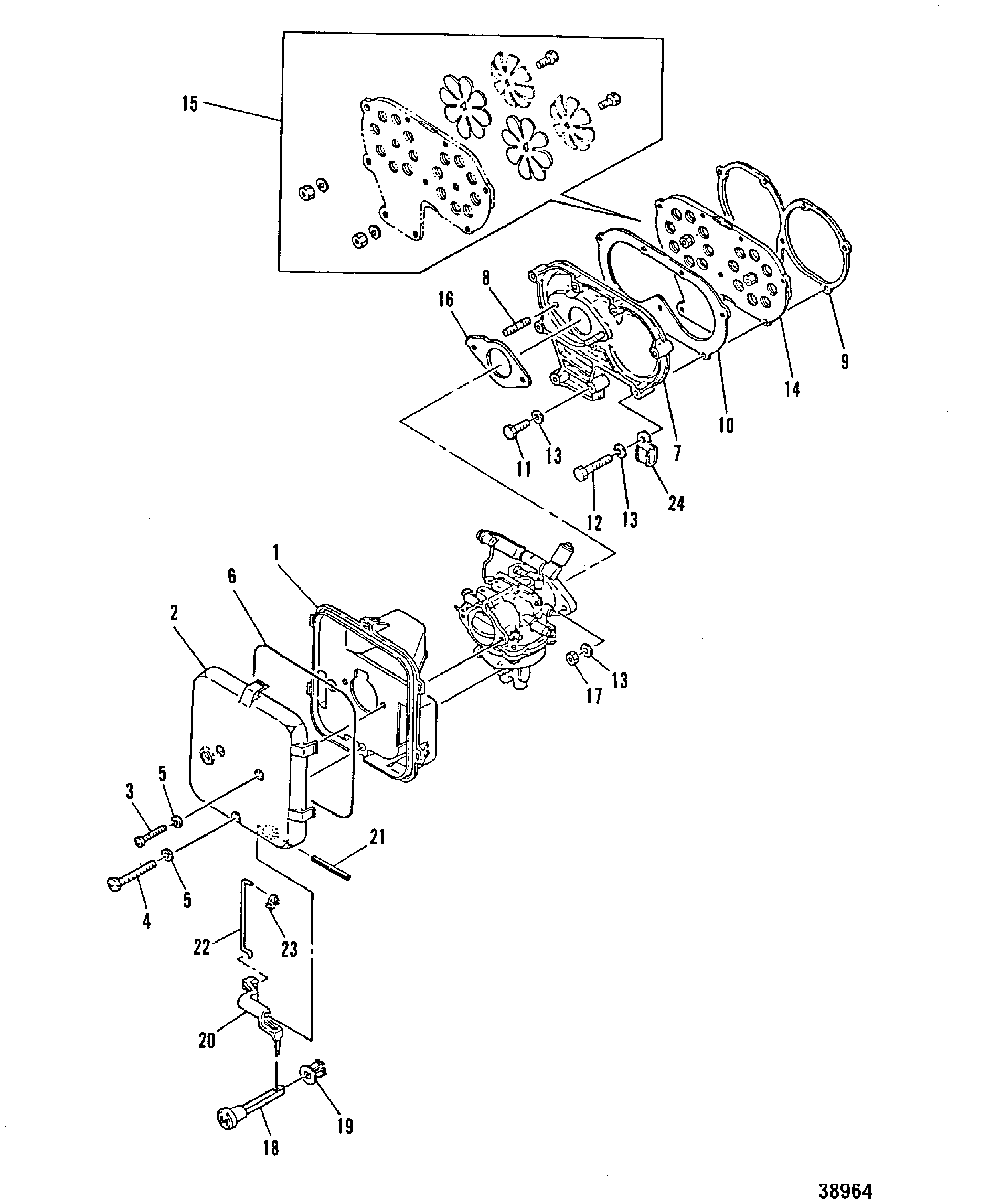

INTAKE MANIFOLD для Mariner - 30A 689-321377 THRU 689-250100 (E)

  • №
    Артикул
    Название
  • 1
    811031M COVER, Air Intake, INNER
    COVER, Air Intake, INNER
  • 2
    95682M COVER, Air Intake, OTER
    COVER, Air Intake, OTER
  • 3
    10-82522M SCREW
    SCREW
  • 4
    10-17148M SCREW
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
    SCREW
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
  • 4
    10-17148M SCREW
    SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below
    SCREW
    SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below
  • 5
    12-82211M WASHER
    WASHER
  • 6
    25-84757M O-RING
    O-RING
  • 7
    80570002 MANIFOLD
    MANIFOLD
  • 8
    16-91735M STUD
    STUD
  • 9
    27-80569M GASKET, REED VALVE
    GASKET, REED VALVE
  • 10
    27-80571M GASKET, INTAKE MANIFOLD
    GASKET, INTAKE MANIFOLD
  • 11
    10-82405M BOLT
    BOLT
  • 12
    10-83285M BOLT
    BOLT
  • 13
    12-82214M WASHER
    WASHER
  • 14
    811027M REED VALVE ASSEMBLY
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
    REED VALVE ASSEMBLY
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
  • 14
    94650M REED VALVE ASSEMBLY
    SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below
    REED VALVE ASSEMBLY
    SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below
  • 15
    34-84759M REED SET (REED STOPS NOT INCLUDED)
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
    REED SET (REED STOPS NOT INCLUDED)
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
  • 15
    34-94639M REED SET (REED STOPS NOT INCLUDED)
    SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below
    REED SET (REED STOPS NOT INCLUDED)
    SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below
  • 16
    27-80572 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 17
    11-82389M NUT
    NUT
  • 18
    83960M KNOB, CHOKE
    KNOB, CHOKE
  • 19
    25-84760M GROMMET
    GROMMET
  • 20
    84761M LEVER, CHOKE
    LEVER, CHOKE
  • 21
    17-84762M PIN, ROLL
    PIN, ROLL
  • 22
    84763M ROD, CHOKE LINK
    ROD, CHOKE LINK
  • 23
    16333 BRACKET, CHOKE LINK ROD
    BRACKET, CHOKE LINK ROD
  • 24
    54-96348M CLAMP, WIRE
    CLAMP, WIRE
  • -
    27-96658M GASKET SET
    GASKET SET
  • -
    811038M REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
