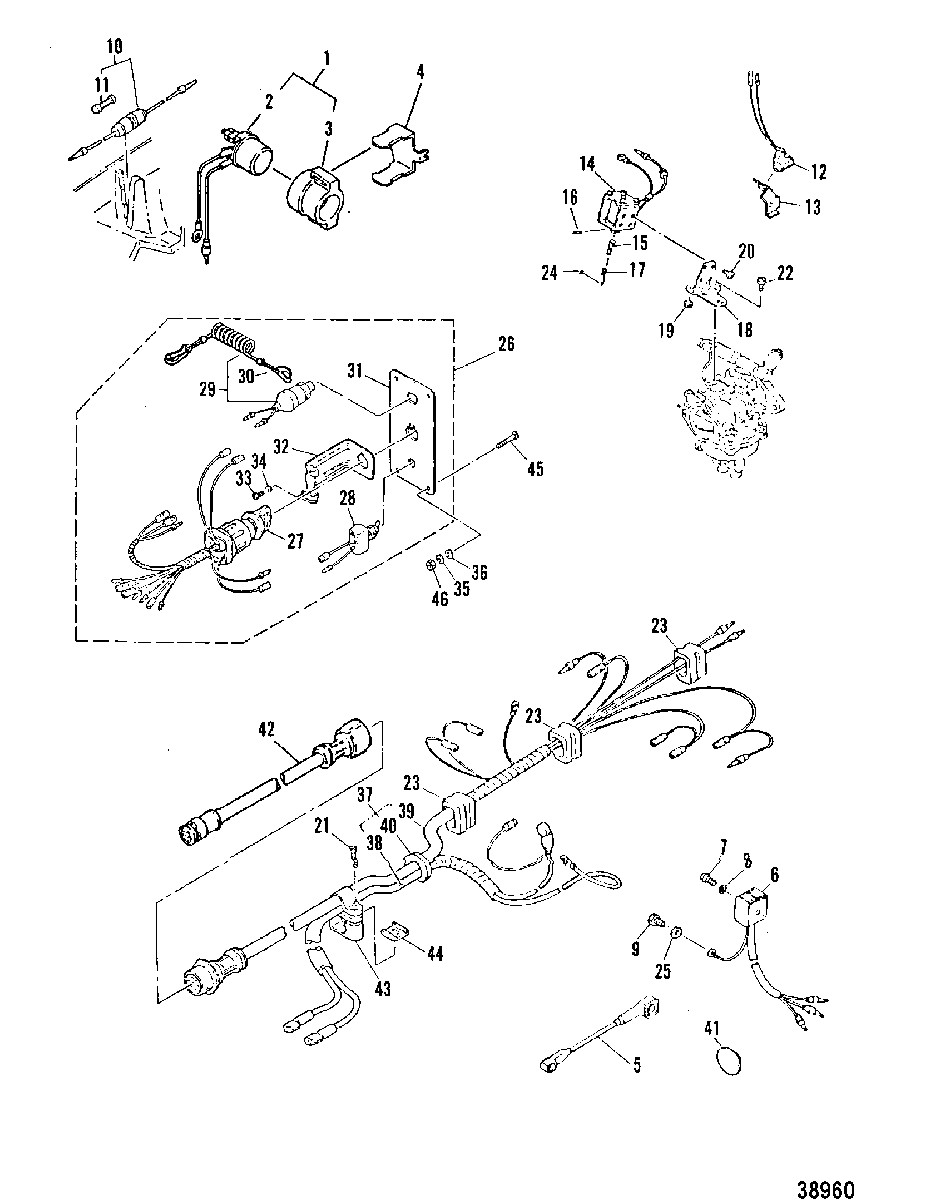

ELECTRIC START COMPONENTS для Mariner - 30A 689-321377 THRU 689-250100 (E)

  • №
    Артикул
    Название
  • 1
    89-8M0098898 SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 2
    89-8M0098898 SOLENOID
    SOLENOID
  • 3
    8M0010250 BRACKET
    BRACKET
  • 4
    84935M PLATE, SOLENOID MOUNTING
    PLATE, SOLENOID MOUNTING
  • 5
    84-84936M WIRE, SOLENOID
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
    WIRE, SOLENOID
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
  • 5
    84-97133M WIRE, SOLENOID
    SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below
    WIRE, SOLENOID
    SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below
  • 6
    8M0091976 RECTIFIER
    RECTIFIER
  • 7
    10-83108M SCREW
    SCREW
  • 8
    12-82211M WASHER
    WASHER
  • 9
    10-91772M BOLT
    BOLT
  • 10
    84937M FUSE ASSEMBLY
    FUSE ASSEMBLY
  • 11
    88-81522M FUSE (12V-20A)
    FUSE (12V-20A)
  • 12
    87-97684M SWITCH ASSEMBLY, Neutral Start
    SWITCH ASSEMBLY, Neutral Start
  • 13
    84939M PLATE, SWITCH AND LOCKOUT MOUNTING
    PLATE, SWITCH AND LOCKOUT MOUNTING
  • 14
    84940M SOLENOID, Choke
    SOLENOID, Choke
  • 15
    84411M HOOK, WIRE
    HOOK, WIRE
  • 16
    17-82145M PIN, ROLL
    PIN, ROLL
  • 17
    24-81667M WIRE, PULL
    WIRE, PULL
  • 18
    84941M PLATE, SOLENOID MOUNTING
    PLATE, SOLENOID MOUNTING
  • 19
    25-82060M GROMMET
    GROMMET
  • 20
    10-82512M SCREW
    SCREW
  • 21
    10-84709M SCREW
    SCREW
  • 22
    10-14232M SCREW
    SCREW
  • 23
    25-84876M GROMMET
    GROMMET
  • 24
    25-82258M O-RING
    O-RING
  • 25
    13-82212M LOCKWASHER
    LOCKWASHER
  • 26
    18975A1 SWITH PANEL ASSEMBLY
    SWITH PANEL ASSEMBLY
  • 27
    87-8M0078321 KEY SWITCH
    KEY SWITCH
  • 28
    87-84944M SWITCH, Choke
    SWITCH, Choke
  • 29
    87-16710M SWITCH ASSEMBLY, Stop
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
    SWITCH ASSEMBLY, Stop
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
  • 29
    87-97682M SWITCH ASSEMBLY, Stop
    SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
    SWITCH ASSEMBLY, Stop
    SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
  • 30
    97756M STOPPER
    STOPPER
  • 31
    16711M PANEL
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
    PANEL
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
  • 31
    42435M PANEL
    SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
    PANEL
    SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
  • 32
    16712M BRACKET
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
    BRACKET
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
  • 32
    81537M BRACKET
    SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
    BRACKET
    SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
  • 33
    10-82500M SCREW
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
    SCREW
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
  • 34
    13-82206M LOCKWASHER, SPRING
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
    LOCKWASHER, SPRING
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
  • 35
    13-82186M WASHER
    WASHER
  • 36
    12-82211M WASHER
    WASHER
  • 37
    84-95677M HARNESS ASSEMBLY, Engine Wiring
    HARNESS ASSEMBLY, Engine Wiring
  • 38
    84-97771M WIRE ASSEMBLY , BATTERY
    WIRE ASSEMBLY , BATTERY
  • 39
    84-95647M WIRE ASSEMBLY, IGNITION
    WIRE ASSEMBLY, IGNITION
  • 40
    25-84950M GROMMET
    GROMMET
  • 41
    82066M GROMMET
    GROMMET
  • 42
    84-18968M EXTENSION, WIRE HARNESS (5M)
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
    EXTENSION, WIRE HARNESS (5M)
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
  • 42
    84-84711M EXTENSION, WIRE HARNESS (5M)
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
    EXTENSION, WIRE HARNESS (5M)
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
  • 43
    54-97772M CLAMP
    CLAMP
  • 44
    84708M PLATE
    PLATE
  • 45
    10-84946M SCREW
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
    SCREW
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
  • 45
    10-80164M SCREW
    SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
    SCREW
    SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
  • 46
    11-82388M NUT, (M5)
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
    NUT, (M5)
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
  • 46
    11-82377M NUT
    SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
    NUT
    SN# M-028477, ML-327902, MUL-601455, E-107928, EL-417074, EUL-620255 & Below
