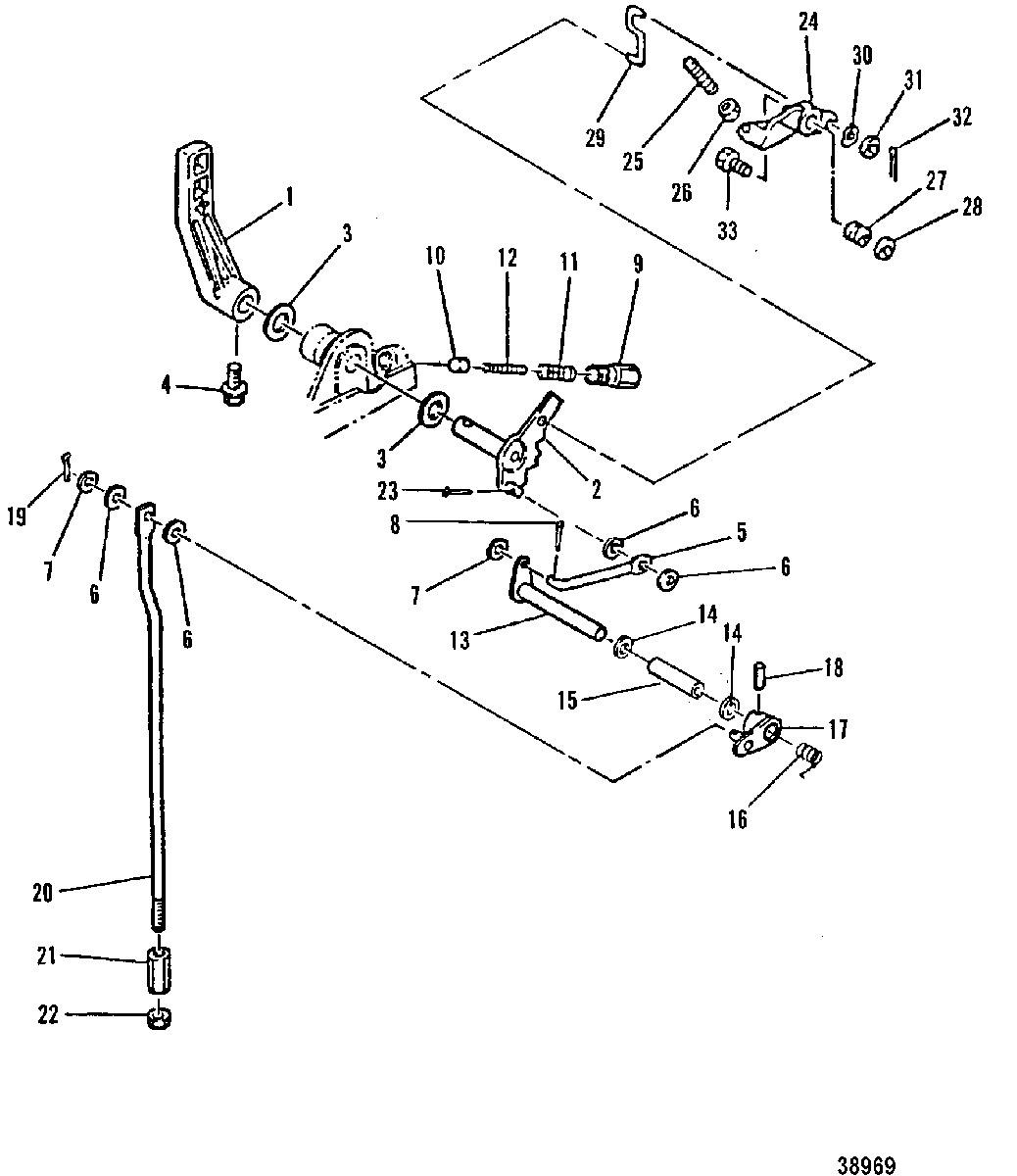

GEAR SHIFT LINKAGE для Mariner - 30A 689-321377 THRU 689-250100 (E)

  • №
    Артикул
    Название
  • 1
    84865M HANDLE, GEAR SHIFT
    HANDLE, GEAR SHIFT
  • 2
    84653M CAM, SHIFT
    CAM, SHIFT
  • 3
    12-81851M WASHER
    WASHER
  • 4
    10-84830M BOLT
    BOLT
  • 5
    81595M LINK ROD
    LINK ROD
  • 6
    12-81843M WASHER
    WASHER
  • 7
    12-82211M WASHER
    WASHER
  • 8
    18-82125M COTTER PIN
    COTTER PIN
  • 9
    84459M RETAINER
    RETAINER
  • 10
    84460M PLUNGER, SHIFT DENTENT
    PLUNGER, SHIFT DENTENT
  • 11
    24-84461M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 12
    24-84462M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 13
    97139M LEVER, SHIFT ROD
    LEVER, SHIFT ROD
  • 14
    12-81846M WASHER
    WASHER
  • 15
    23-97142M COLLAR
    COLLAR
  • 16
    24-97140M SPRING
    SPRING
  • 17
    84867M LEVER, SHIFT ROD
    LEVER, SHIFT ROD
  • 18
    17-82155M PIN, ROLL
    PIN, ROLL
  • 19
    18-82127M COTTER PIN
    COTTER PIN
  • 20
    80651M SHIFT ROD
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
    SHIFT ROD
    SN# M-030662, ML-329959, E-108559, EL-418520 & Up
  • 20
    81596M SHIFT ROD
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
    SHIFT ROD
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
  • 21
    80652M CONNECTOR
    CONNECTOR
  • 22
    11-81767M NUT
    NUT
  • 23
    18-16189 COTTER PIN
    COTTER PIN
  • 24
    97131M ARM
    MANUAL MODELS ONLY
    ARM
    MANUAL MODELS ONLY
  • 25
    16-41883M STUD, SET
    MANUAL MODELS ONLY
    STUD, SET
    MANUAL MODELS ONLY
  • 26
    11-82388M NUT
    MANUAL MODELS ONLY
    NUT
    MANUAL MODELS ONLY
  • 27
    23-83310M COLLAR
    MANUAL MODELS ONLY
    COLLAR
    MANUAL MODELS ONLY
  • 28
    12-81969M WASHER
    MANUAL MODELS ONLY
    WASHER
    MANUAL MODELS ONLY
  • 29
    91650M LINK
    MANUAL MODELS ONLY
    LINK
    MANUAL MODELS ONLY
  • 30
    13-81865M WASHER, WAVE
    MANUAL MODELS ONLY
    WASHER, WAVE
    MANUAL MODELS ONLY
  • 31
    12-82211M WASHER
    MANUAL MODELS ONLY
    WASHER
    MANUAL MODELS ONLY
  • 32
    18-82125M COTTER PIN
    MANUAL MODELS ONLY
    COTTER PIN
    MANUAL MODELS ONLY
  • 33
    10-84058M BOLT, (M6 x 20)
    MANUAL MODELS ONLY
    BOLT, (M6 x 20)
    MANUAL MODELS ONLY
