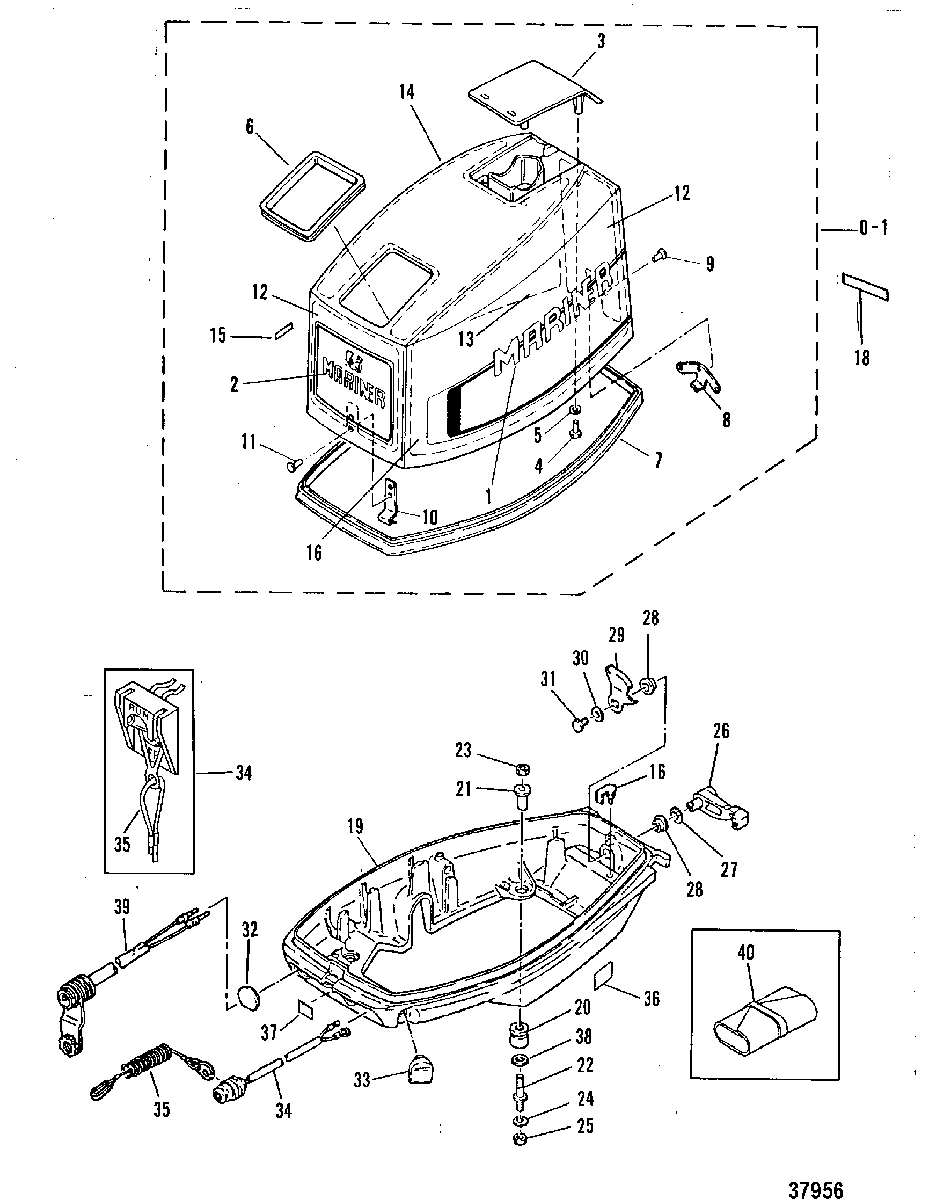

COWLING для Mariner - 30A 689-321377 THRU 689-250100 (E)

  • №
    Артикул
    Название
  • -
    2168-813272M TOP COWL ASSEMBLY
    (ELECTRIC)
    TOP COWL ASSEMBLY
    (ELECTRIC)
  • -
    2168-811158M TOP COWL ASSEMBLY
    (MANUAL)
    TOP COWL ASSEMBLY
    (MANUAL)
  • 1
    37-813273M DECAL SET, SIDE AND REAR
    (ELECTRIC)
    DECAL SET, SIDE AND REAR
    (ELECTRIC)
  • 1
    37-95674M DECAL SET, SIDE AND REAR
    (MANUAL)
    DECAL SET, SIDE AND REAR
    (MANUAL)
  • 2
    37-95675M DECAL, FRONT
    DECAL, FRONT
  • 3
    95676M MOLDING, AIR DUCT
    MOLDING, AIR DUCT
  • 4
    10-91772M BOLT
    BOLT
  • 5
    12-82214M WASHER
    WASHER
  • 6
    84900M SEAL, RUBBER
    SEAL, RUBBER
  • 7
    84901M SEAL, COWL
    SEAL, COWL
  • 8
    42433M HOOK, REAR
    HOOK, REAR
  • 9
    17-84903M RIVET
    RIVET
  • 10
    811160M HOOK, FRONT
    HOOK, FRONT
  • 11
    17-83140M RIVET
    RIVET
  • 12
    84323M SOUND BLANKET, FRONT AND REAR
    SOUND BLANKET, FRONT AND REAR
  • 13
    83125M SOUND BLANKET, STARBOARD AND PORT
    SOUND BLANKET, STARBOARD AND PORT
  • 14
    84232M SOUND BLANKET, TOP
    SOUND BLANKET, TOP
  • 15
    37-81202M DECAL, Shift Indicator
    DECAL, Shift Indicator
  • 16
    80510M SPACER, FRICTION
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
    SPACER, FRICTION
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420575 & Up
  • 17
    91-803581 TOOL KIT (OPT)
    TOOL KIT (OPT)
  • 18
    37-95547M DECAL, 30E MODEL
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
    DECAL, 30E MODEL
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
  • 18
    37-95547M DECAL, 30E MODEL
    SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below
    DECAL, 30E MODEL
    SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below
  • 19
    2168-811913M BOTTOM COWL
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420757 & Up
    BOTTOM COWL
    SN# M-033628, ML-332852, MUL-700271, E-109305, EL-420757 & Up
  • 19
    2168-9349M BOTTOM COWL
    SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below
    BOTTOM COWL
    SN# M-033627, ML-332851, MUL-700270, E-109304, EL-420574 & Below
  • 20
    25-84910M GROMMET
    GROMMET
  • 21
    23-84911M COLLAR
    COLLAR
  • 22
    16-95505M STUD
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
    STUD
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
  • 22
    16-95505M STUD
    SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below
    STUD
    SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below
  • 23
    11-82383M NUT
    NUT
  • 24
    12-82217M WASHER
    WASHER
  • 25
    11-82383M NUT
    NUT
  • 26
    84913M LEVER, COWL CLAMP
    LEVER, COWL CLAMP
  • 27
    13-81869M WASHER, WAVE
    WASHER, WAVE
  • 28
    23-81949M BUSHING
    BUSHING
  • 29
    54-84914M CLAMP
    CLAMP
  • 30
    12-81794M WASHER
    WASHER
  • 31
    10-84088M BOLT
    BOLT
  • 32
    25-83988M GROMMET
    (SEE NOTE)
    GROMMET
    (SEE NOTE)
  • 33
    25-826981M GROMMET
    GROMMET
  • 34
    87-14222M LANYARD IGNITION SWITCH ASSEMBLY
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
    LANYARD IGNITION SWITCH ASSEMBLY
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
  • 34
    87-93102M SWITCH ASSEMBLY, Stop (SEE NOTE)
    SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below
    SWITCH ASSEMBLY, Stop (SEE NOTE)
    SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below
  • 35
    97756M STOPPER
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
    STOPPER
    SN# M-028478, ML-327903, MUL-601456, E-107929, EL-417075, EUL-620256 & Up
  • 36
    37-42434M DECAL (HP)
    DECAL (HP)
  • 37
    37-95570M DECAL
    SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below
    DECAL
    SN# M-026303, ML-325083, MUL-601285, E-107088, EL-415057, EUL-620235 & Below
  • 38
    12-95507M WASHER
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
    WASHER
    SN# M-026304, ML-325084, MUL-601286, E-107089, EL-415058, EUL-620236 & Up
  • 39
    84-99051M CONNECTOR, LEAD WIRE
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
    CONNECTOR, LEAD WIRE
    SN# M-030661, ML-329958, E-108558, EL-418519 & Below
  • 40
    91-803581 TOOL KIT (OPT)
    TOOL KIT (OPT)
