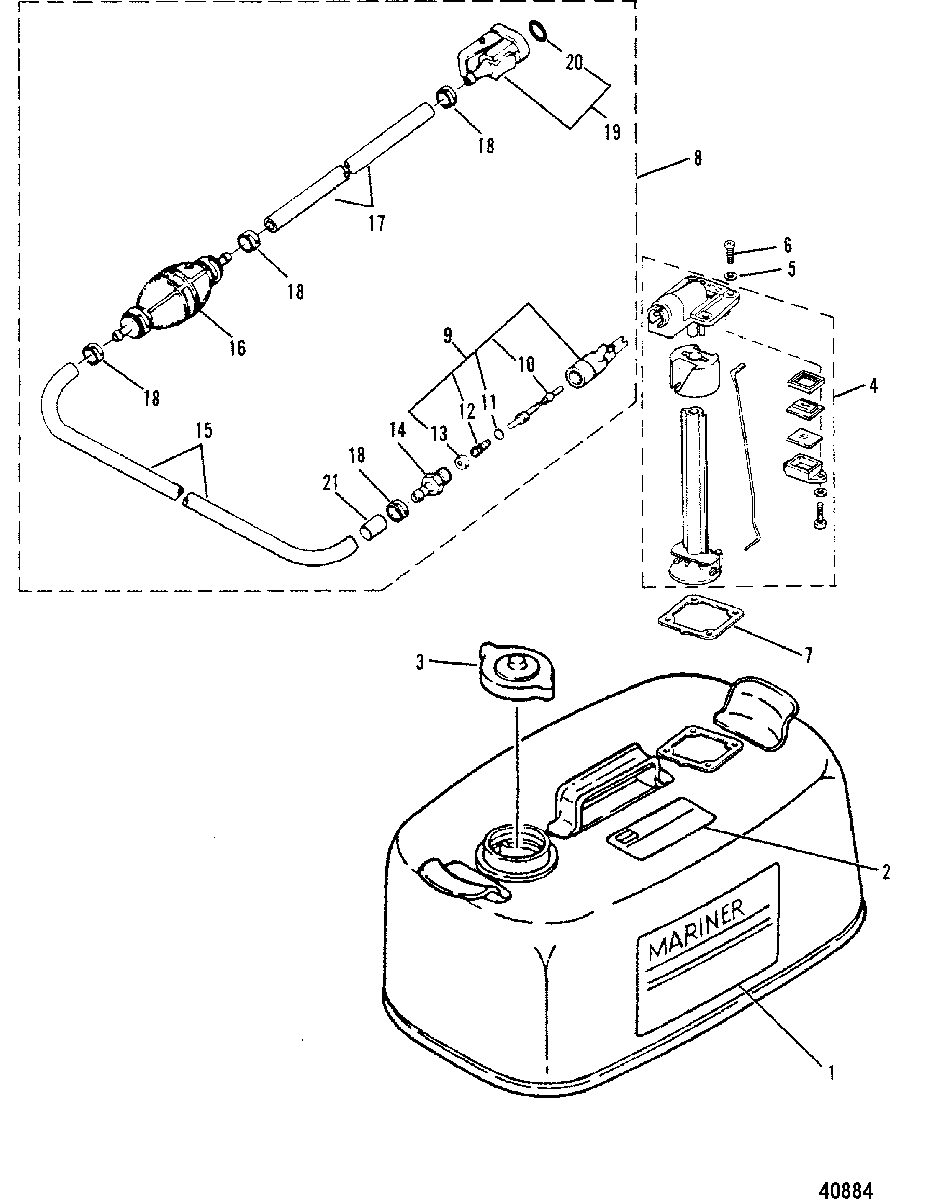

FUEL TANK(M-019156/ML-318600/E-104326/EL-409501 and Up) для Mariner - 30A 689-301911 THRU 321376
-
№АртикулНазвание
-
137-14617M DECAL, SIDE (ENGLISH)DECAL, SIDE (ENGLISH)
-
137-95504M DECAL, SIDE (FRENCH)DECAL, SIDE (FRENCH)
-
237-95489M DECAL, TOP (ENGLISH)DECAL, TOP (ENGLISH)
-
237-95503M DECAL, TOP (FRENCH)DECAL, TOP (FRENCH)
-
336-18962M CAP, Fuel TankCAP, Fuel Tank
-
495499M METER ASSEMBLY, FuelMETER ASSEMBLY, Fuel
-
512-95501M SEALSEAL
-
610-95502M SCREWSCREW
-
727-95500M GASKET, FUEL METER ASS'YGASKET, FUEL METER ASS'Y
-
832-877681Q8 LINE ASSEMBLY, FuelLINE ASSEMBLY, Fuel
-
930185Q3 BAYONET BODY ASSEMBLYBAYONET BODY ASSEMBLY
-
1030185Q3 STEM, BAYNONET BODYSTEM, BAYNONET BODY
-
1125-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
1224-30189 SPRING, BAYONET BODY ASS'YSPRING, BAYONET BODY ASS'Y
-
1330188 WASHER, CAPWASHER, CAP
-
1422-63187 FITTING, Barb (.250-18), FUEL LINEFITTING, Barb (.250-18), FUEL LINE
-
1532-94727M HOSE, CONNECTOR HOUSING TO BULBHOSE, CONNECTOR HOUSING TO BULB
-
1689396Q01 PRIMER BULBPRIMER BULB
-
1732-94727M HOSE, BULB TO ENGINE CONNECTORHOSE, BULB TO ENGINE CONNECTOR
-
1854-16725M CLAMP, HOSECLAMP, HOSE
-
1922-14213Q HOUSING ASSEMBLY, ENGINE ENDHOUSING ASSEMBLY, ENGINE END
-
2025-82789M O-RINGO-RING
-
2123-81327M COLLARCOLLAR
