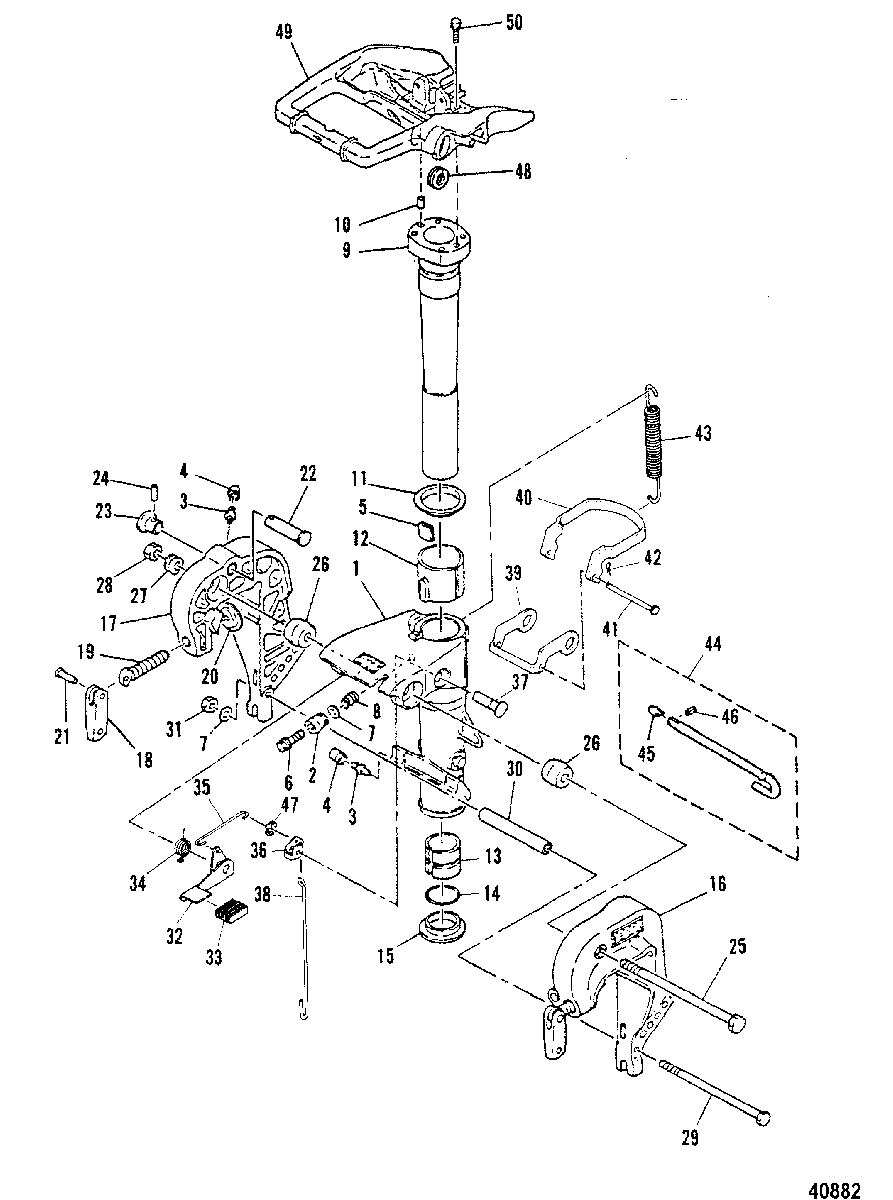

BRACKETS(M-007185/ML-308700/E-101515/EL-404000 and Below) для Mariner - 30A 689-301911 THRU 321376
-
№АртикулНазвание
-
11485-7855M BRACKET, SWIVELBRACKET, SWIVEL
-
226-84832M SEAL, RUBBERSEAL, RUBBER
-
322-82369M FITTING, GREASEFITTING, GREASE
-
481439M CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
580633M PLATE, FRICTIONPLATE, FRICTION
-
610-81754M SCREWSCREW
-
712-82217M WASHERWASHER
-
824-82088M SPRINGSPRING
-
984833M SHAFT, STEERING PIVOTSHAFT, STEERING PIVOT
-
1017-82368M PINPIN
-
1112-81873M WASHERWASHER
-
1223-81964M BUSHINGBUSHING
-
1323-81961M BUSHINGBUSHING
-
1425-82274M O-RINGO-RING
-
1523-81959M BUSHINGBUSHING
-
161484-7847M BRACKET (PORT)BRACKET (PORT)
-
171484-7848M BRACKET (STARBOARD)BRACKET (STARBOARD)
-
18809959M HANDLE, TRANSOM CLAMPHANDLE, TRANSOM CLAMP
-
1910-81756M SCREWSCREW
-
2012-80638M PAD, TRANSOM CLAMPPAD, TRANSOM CLAMP
-
2117-81888M PINPIN
-
2284835M SHAFT, STOPPERSHAFT, STOPPER
-
2395650M KNOB, STOPPERKNOB, STOPPER
-
2417-82148M PIN, SPRINGPIN, SPRING
-
2510-84834M BOLTBOLT
-
2680639M MOUNT, FRICTIONMOUNT, FRICTION
-
2724-82101M SPRINGSPRING
-
2811-82395M NUTNUT
-
2910-82924M BOLTBOLT
-
3023-19108M SPACERSPACER
-
3111-82382M NUTNUT
-
3280646M LEVER, TILTLEVER, TILT
-
3380647M COVER, TILT LEVERCOVER, TILT LEVER
-
3424-82109M SPRING, TORSIONSPRING, TORSION
-
3580644M LINK, TILT LOCKLINK, TILT LOCK
-
3680648M CAM, TILTCAM, TILT
-
3717-81895M PINPIN
-
3880645M ROD, TILT LOCKROD, TILT LOCK
-
3980643M HOOK, TILT LOCK-FRONTHOOK, TILT LOCK-FRONT
-
4084837M HOOK, TILT LOCK-REARHOOK, TILT LOCK-REAR
-
4117-81882M PINPIN
-
4218-82125M COTTER PINCOTTER PIN
-
4324-19110M SPRINGSPRING
-
4417-94569M PIN ASSEMBLY, Tilt LockPIN ASSEMBLY, Tilt Lock
-
4582857M PLATE, StopperPLATE, Stopper
-
4617-82144M PIN, SPRINGPIN, SPRING
-
4753-82330M RING, SnapRING, Snap
-
4825-82070M GROMMETGROMMET
-
4919113M BRACKET, STEERINGBRACKET, STEERING
-
5010-84830M BOLTBOLT
