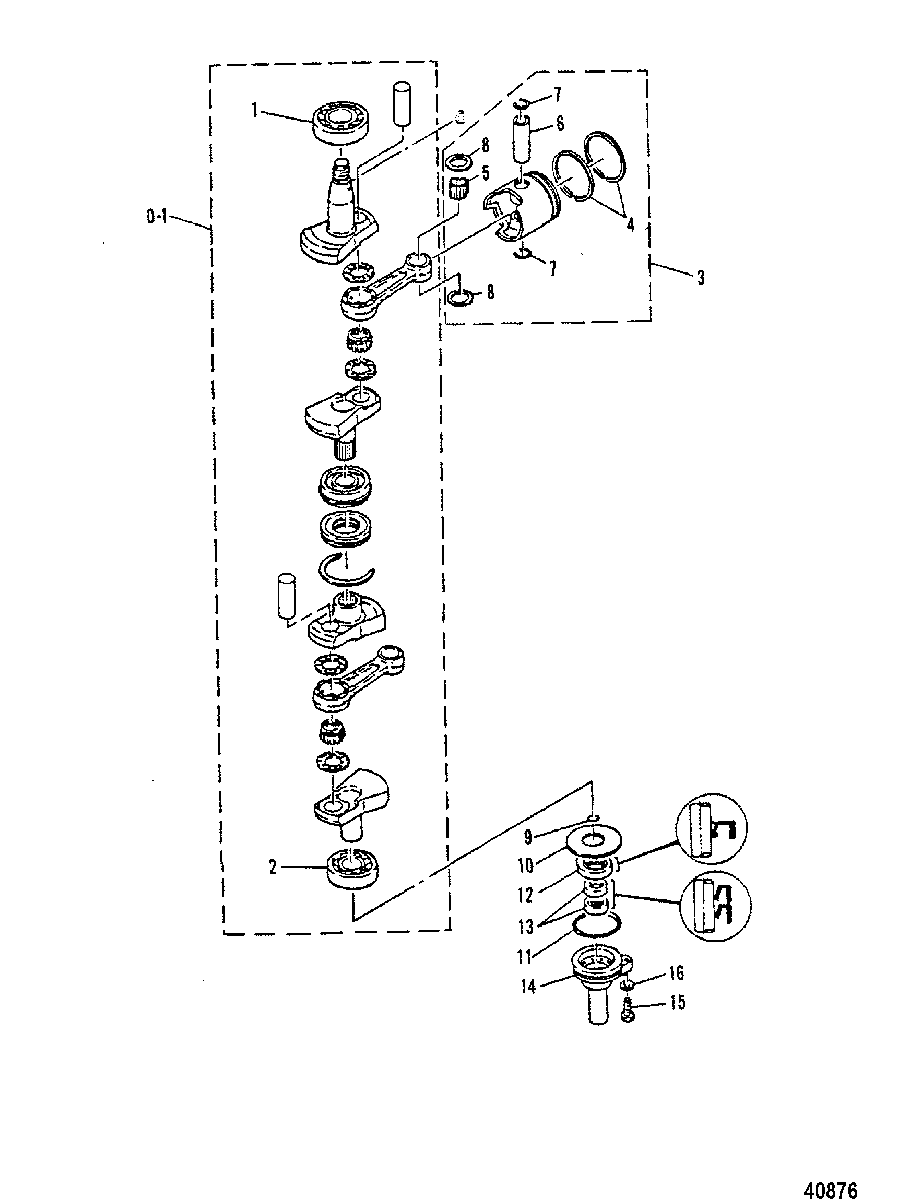

CRANKSHAFT AND PISTON для Mariner - 30A 689-301911 THRU 321376
-
№АртикулНазвание
-
0-1463-9068M CRANKSHAFT ASSEMBLY
SN# M-018821/ML-318387/E-104276/EL-409416 & UpCRANKSHAFT ASSEMBLY
SN# M-018821/ML-318387/E-104276/EL-409416 & Up -
0-1463-9068M CRANKSHAFT ASSEMBLY
SN# M-007186/ML-308701/E-101516/EL-404001 THRU M-018820/ML-318386/E-104275/EL-409415CRANKSHAFT ASSEMBLY
SN# M-007186/ML-308701/E-101516/EL-404001 THRU M-018820/ML-318386/E-104275/EL-409415 -
0-1463-7195M CRANKSHAFT ASSEMLBY
SN# M-007185/ML-308700/E-101515/EL-404000 & BelowCRANKSHAFT ASSEMLBY
SN# M-007185/ML-308700/E-101515/EL-404000 & Below -
130-96659T BEARING, UPPER
SN# M-007186/ML-308701/E-101516/EL-404001 & UpBEARING, UPPER
SN# M-007186/ML-308701/E-101516/EL-404001 & Up -
130-84745M BEARING, UPPER
SN# M-007185/ML-308700/E-101515/EL-404000 & BelowBEARING, UPPER
SN# M-007185/ML-308700/E-101515/EL-404000 & Below -
230-82307T BEARING, LOWERBEARING, LOWER
-
3761-8484M PISTON ASSEMBLY
(STANDARD)PISTON ASSEMBLY
(STANDARD) -
3761-8485T PISTON ASSEMBLY
(1ST OVERSIZE-72.25 MM)PISTON ASSEMBLY
(1ST OVERSIZE-72.25 MM) -
3761-8486T PISTON ASSEMBLY
(2ND OVERSIZE-72.50 MM)PISTON ASSEMBLY
(2ND OVERSIZE-72.50 MM) -
439-14235T RING SET, Piston
(STANDARD)RING SET, Piston
(STANDARD) -
439-84747T RING SET, Piston
(1ST OVERSIZE-72.25 MM)RING SET, Piston
(1ST OVERSIZE-72.25 MM) -
439-14236T RING SET, Piston
(2ND OVERSIZE-72.50 MM)RING SET, Piston
(2ND OVERSIZE-72.50 MM) -
529-84452M BEARINGBEARING
-
641-84749M PIN, PistonPIN, Piston
-
753-81264M CLIP, PISTON PINCLIP, PISTON PIN
-
812-84750M WASHERWASHER
-
925-82268M O-RINGO-RING
-
1023-81842M SPACERSPACER
-
1125-84089M O-RINGO-RING
-
1226-84752M SEAL, Oil, LOWER
SN# M-018821/ML-318387/E-104276/EL-409416 & UpSEAL, Oil, LOWER
SN# M-018821/ML-318387/E-104276/EL-409416 & Up -
1226-84752M SEAL, Oil, LOWER
SN# M-018820/ML-318386/E-104275/EL-409415 & BelowSEAL, Oil, LOWER
SN# M-018820/ML-318386/E-104275/EL-409415 & Below -
1326-83347M SEAL, Oil, LOWERSEAL, Oil, LOWER
-
148M0059029 HOUSING, LOWER OIL SEALHOUSING, LOWER OIL SEAL
-
1510-94526M BOLT
SN# M-010646/NL-311476/E-102356/EL-405456 & UpBOLT
SN# M-010646/NL-311476/E-102356/EL-405456 & Up -
1510-82405M BOLT
SN# M-010645/NL-311475/E-102355/EL-405455 & BelowBOLT
SN# M-010645/NL-311475/E-102355/EL-405455 & Below -
1612-82214M WASHERWASHER
-
-27-96658M GASKET SET, POWERHEAD
SN# M-010646/ML-311476/E-102356/EL-405456 & UpGASKET SET, POWERHEAD
SN# M-010646/ML-311476/E-102356/EL-405456 & Up -
-27-84744M GASKET SET, POWERHEAD
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowGASKET SET, POWERHEAD
SN# M-010645/ML-311475/E-102355/EL-405455 & Below
