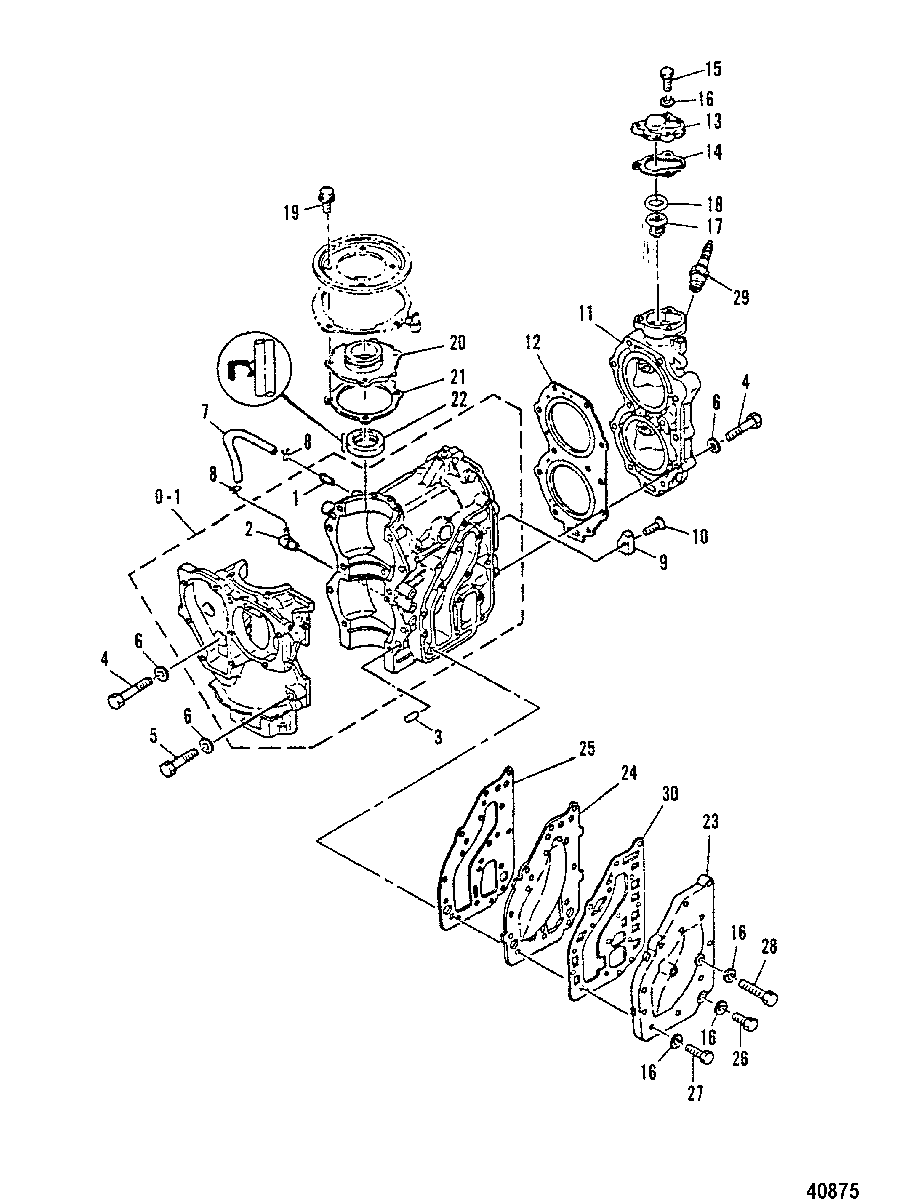

CRANKCASE AND CYLINDER HEAD для Mariner - 30A 689-301911 THRU 321376
-
№АртикулНазвание
-
0-1870-9371M CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
122-80122M FITTING, DRAINFITTING, DRAIN
-
221-80727M CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
317-82364M PIN, DowelPIN, Dowel
-
410-41885M BOLT
SN# M-010646/ML-311476/E-102356/EL-405456 & UpBOLT
SN# M-010646/ML-311476/E-102356/EL-405456 & Up -
410-82406M BOLT
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowBOLT
SN# M-010645/ML-311475/E-102355/EL-405455 & Below -
510-8M0101617 BOLT, (M8 x 55)
SN# M-010646/ML-311476/E-102356/EL-405456 & UpBOLT, (M8 x 55)
SN# M-010646/ML-311476/E-102356/EL-405456 & Up -
510-82408M BOLT
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowBOLT
SN# M-010645/ML-311475/E-102355/EL-405455 & Below -
612-80564M WASHER
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowWASHER
SN# M-010645/ML-311475/E-102355/EL-405455 & Below -
732-811045M HOSEHOSE
-
854-82046M CLAMP, HOSECLAMP, HOSE
-
997-84732M ANODEANODE
-
1010-95209M SCREW
SN# M-018821/ML-318387/E-104276/EL-409416 & UpSCREW
SN# M-018821/ML-318387/E-104276/EL-409416 & Up -
1010-95209M SCREW
SN# M-018820/ML-318386/E-104275/EL-409415 & BelowSCREW
SN# M-018820/ML-318386/E-104275/EL-409415 & Below -
11968-7194M CYLINDER HEADCYLINDER HEAD
-
1227-19138 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
1381030M COVER, THERMOSTATCOVER, THERMOSTAT
-
1427-81031 GASKET, COVERGASKET, COVER
-
1510-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1612-82214M WASHER, LOCKWASHER, LOCK
-
1799080M THERMOSTATTHERMOSTAT
-
1812-81835M WASHERWASHER
-
1910-84735M BOLTBOLT
-
2084736M HOUSING, UPPER OIL SEALHOUSING, UPPER OIL SEAL
-
2127-84737M GASKET, OIL SEAL HOUSINGGASKET, OIL SEAL HOUSING
-
2226-811021M SEAL, Oil, UPPER
SN# M-007186/ML-308701/E-101516/EL-404001 & UpSEAL, Oil, UPPER
SN# M-007186/ML-308701/E-101516/EL-404001 & Up -
2226-84738M SEAL, Oil, UPPER
SN# M-007185/ML-308700/E-101515/EL-404000 & BelowSEAL, Oil, UPPER
SN# M-007185/ML-308700/E-101515/EL-404000 & Below -
2395680M COVER, Outer ExhaustCOVER, Outer Exhaust
-
2495681M COVER, Inner ExhaustCOVER, Inner Exhaust
-
2527-84741M GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
2610-82405M BOLTBOLT
-
2710-83285M BOLTBOLT
-
2810-84931M BOLTBOLT
-
2933-8M0114739 SPARK PLUG (NGK B-7HS)SPARK PLUG (NGK B-7HS)
-
3027-96656M GASKETGASKET
-
-95678M POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
SN# M-007186/ML-308701/E-101516/EL-404001 & UpPOWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
SN# M-007186/ML-308701/E-101516/EL-404001 & Up -
-84743M POWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
SN# M-007185/ML-308700/E-101515/EL-404000 & BelowPOWERHEAD ASSEMBLY, COMPLETE (SEE NOTE)
SN# M-007185/ML-308700/E-101515/EL-404000 & Below -
-27-96658M GASKET SET, POWERHEAD
SN# M-010646/ML-311476/E-102356/EL-405456 & UpGASKET SET, POWERHEAD
SN# M-010646/ML-311476/E-102356/EL-405456 & Up -
-27-84744M GASKET SET, POWERHEAD
SN# M-010645/ML-311475/E-102355/EL-405455 & BelowGASKET SET, POWERHEAD
SN# M-010645/ML-311475/E-102355/EL-405455 & Below
