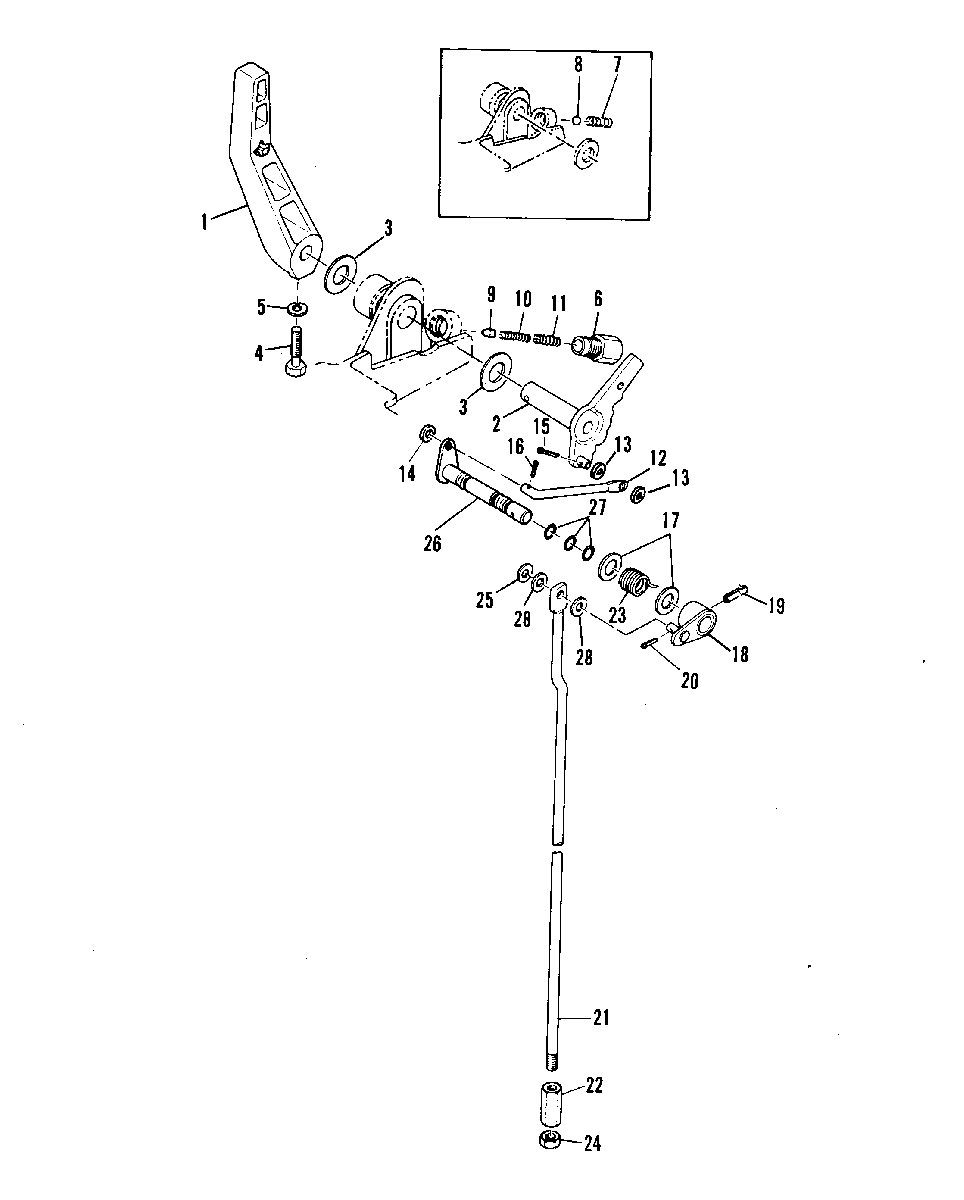

GEAR SHIFT LINKAGE для Mariner - 28 664-38146 AND UP

  • №
    Артикул
    Название
  • 1
    81151M HANDLE, GEAR SHIFT
    HANDLE, GEAR SHIFT
  • 2
    84653M CAM, SHAFT
    SERIAL 00154806-09999999
    CAM, SHAFT
    SERIAL 00154806-09999999
  • 2
    81152M CAM, SHIFT
    SERIAL 00000000-00154805
    CAM, SHIFT
    SERIAL 00000000-00154805
  • 3
    12-81851M WASHER
    WASHER
  • 4
    10-82405M BOLT
    BOLT
  • 5
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 6
    84459M RETAINER, SHIFT DETENT
    SERIAL 00154806-09999999
    RETAINER, SHIFT DETENT
    SERIAL 00154806-09999999
  • 6
    23-80635M RETAINER, SHIFT DETENT
    SERIAL 00000000-00154805
    RETAINER, SHIFT DETENT
    SERIAL 00000000-00154805
  • 7
    24-82085M SPRING, SHIFT DETENT
    SERIAL 00000000-00154805
    SPRING, SHIFT DETENT
    SERIAL 00000000-00154805
  • 8
    82346M BALL, SHIFT DETENT
    SERIAL 00000000-00154805
    BALL, SHIFT DETENT
    SERIAL 00000000-00154805
  • 9
    84460M PLUNGER, SHIFT CAM
    SERIAL 00154806-09999999
    PLUNGER, SHIFT CAM
    SERIAL 00154806-09999999
  • 10
    24-84461M SPRIING, COMPRESSION
    SERIAL 00154806-09999999
    SPRIING, COMPRESSION
    SERIAL 00154806-09999999
  • 11
    24-84462M SPRING, COMPRESSION
    SERIAL 00154806-09999999
    SPRING, COMPRESSION
    SERIAL 00154806-09999999
  • 12
    81595M LINK ROD, SHIFT
    LINK ROD, SHIFT
  • 13
    12-81843M WASHER
    WASHER
  • 14
    12-82211M WASHER
    WASHER
  • 15
    18-82125M PIN, SHIFT CAM
    PIN, SHIFT CAM
  • 16
    18-16189 PIN (COTTER)
    PIN (COTTER)
  • 17
    12-81846M WASSHER
    WASSHER
  • 18
    81594M SWIVEL, SHIFT ROD
    SWIVEL, SHIFT ROD
  • 19
    17-82155M PIN, SWIVEL
    PIN, SWIVEL
  • 20
    18-82127M PIN
    PIN
  • 21
    81596M SHAFT, SHIFT-UPPER
    SHAFT, SHIFT-UPPER
  • 22
    80652M CONNECTOR, SHIFT
    CONNECTOR, SHIFT
  • 23
    24-82108M SPRING, TENSION
    SPRING, TENSION
  • 24
    11-81767M NUT
    NUT
  • 25
    12-82209M WASHER
    WASHER
  • 26
    84463M LEVER, SHIFT ROD
    SERIAL 00010711-09999999
    LEVER, SHIFT ROD
    SERIAL 00010711-09999999
  • 26
    83208M LEVER, SHIFT ROD
    SERIAL 00000000-00010710
    LEVER, SHIFT ROD
    SERIAL 00000000-00010710
  • 27
    25-84464M O-RING
    SERIAL 00010711-09999999
    O-RING
    SERIAL 00010711-09999999
  • 27
    25-82259M O-RING
    SERIAL 00000000-00010710
    O-RING
    SERIAL 00000000-00010710
  • 28
    12-81843M WASHER
    WASHER
