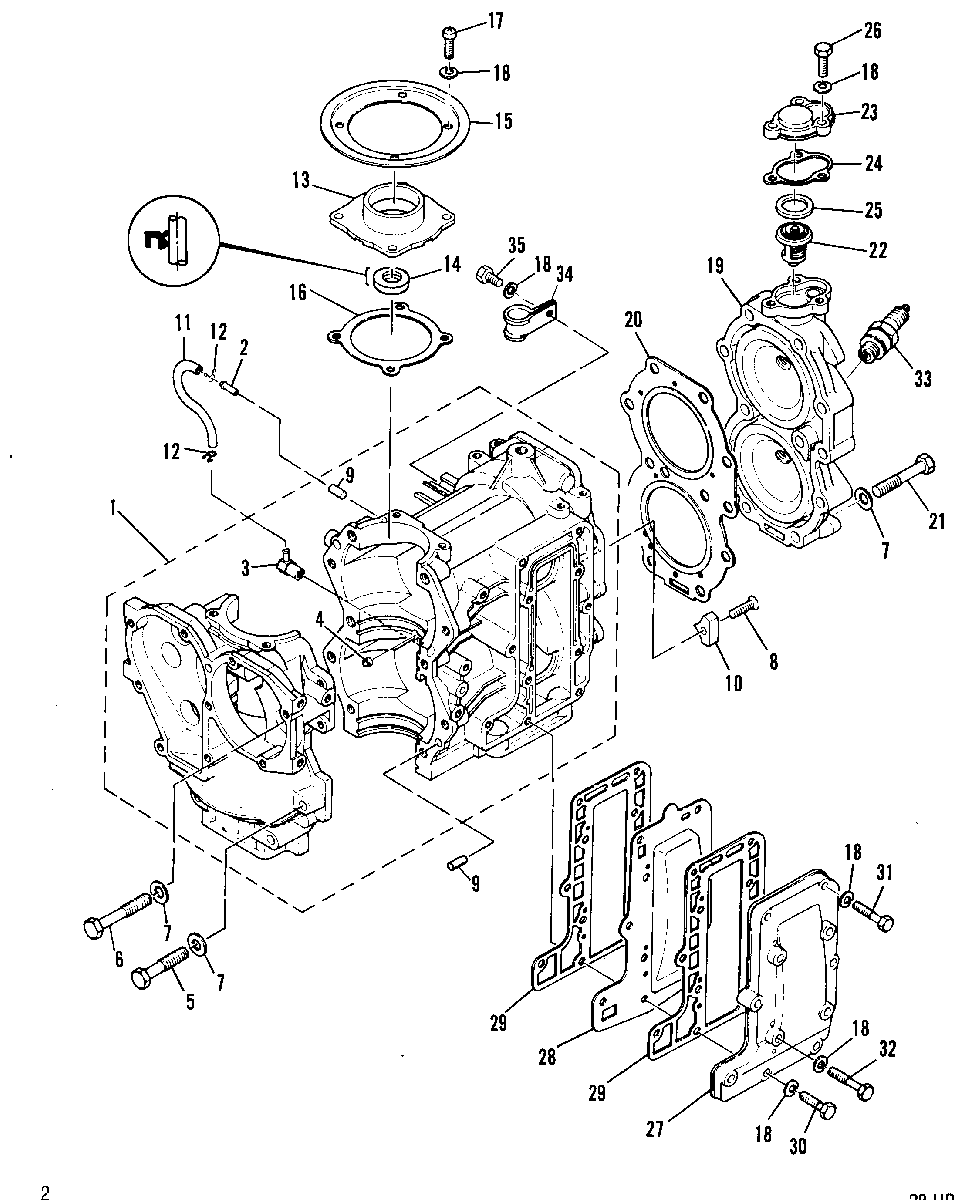

CRANKCASE AND CYLINDER HEAD для Mariner - 28 664-38146 AND UP
-
№АртикулНазвание
-
1870-6851M CRANKCASE ASS'YCRANKCASE ASS'Y
-
222-80122M FITTING, CRANKCASE DRAINFITTING, CRANKCASE DRAIN
-
321-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
421-80107M CHECK VALVECHECK VALVE
-
510-82406M BOLTBOLT
-
610-82408M BOLTBOLT
-
712-80564M WASHERWASHER
-
810-95209M SCREWSCREW
-
917-82364M PIN, DOWELPIN, DOWEL
-
1097-84732M ANODEANODE
-
1132-811045M HOSEHOSE
-
1254-82046M CLAMP, HOSECLAMP, HOSE
-
1381564M HOUSING, OIL SEALHOUSING, OIL SEAL
-
1426-82245M OIL SEAL, CRANKSHAFT (UPPER)OIL SEAL, CRANKSHAFT (UPPER)
-
1583199M RETAINER, MAGNETO BASERETAINER, MAGNETO BASE
-
1627-81565M GASKET, OIL SEAL HOUSINGGASKET, OIL SEAL HOUSING
-
1710-11828M SCREWSCREW
-
1813-82212M WASHER, LOCKWASHER, LOCK
-
19968-8400M HEAD, CYLINDERHEAD, CYLINDER
-
2027-81555 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2110-82407M BOLTBOLT
-
2299080M THERMOSTATTHERMOSTAT
-
2381030M COVER, THERMOSTATCOVER, THERMOSTAT
-
2427-81031 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
2512-81835M WASHERWASHER
-
2610-84058M BOLTBOLT
-
2781569M COVER, EXHAUST-OUTERCOVER, EXHAUST-OUTER
-
2881568M COVER, EXHAUST-INNERCOVER, EXHAUST-INNER
-
2927-81570 GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
3010-82405M BOLTBOLT
-
3110-83285M BOLTBOLT
-
3210-83285M BOLTBOLT
-
3333-8M0114739 SPARK PLUG, B-7HS (NGK)SPARK PLUG, B-7HS (NGK)
-
3454-96348M CLAMPCLAMP
-
3510-91772M BOLTBOLT
-
3583787M POWERHEAD ASS'Y COMPLETE (SEE NOTE)POWERHEAD ASS'Y COMPLETE (SEE NOTE)
-
3527-84166M GASKET SET, POWERHEADGASKET SET, POWERHEAD
