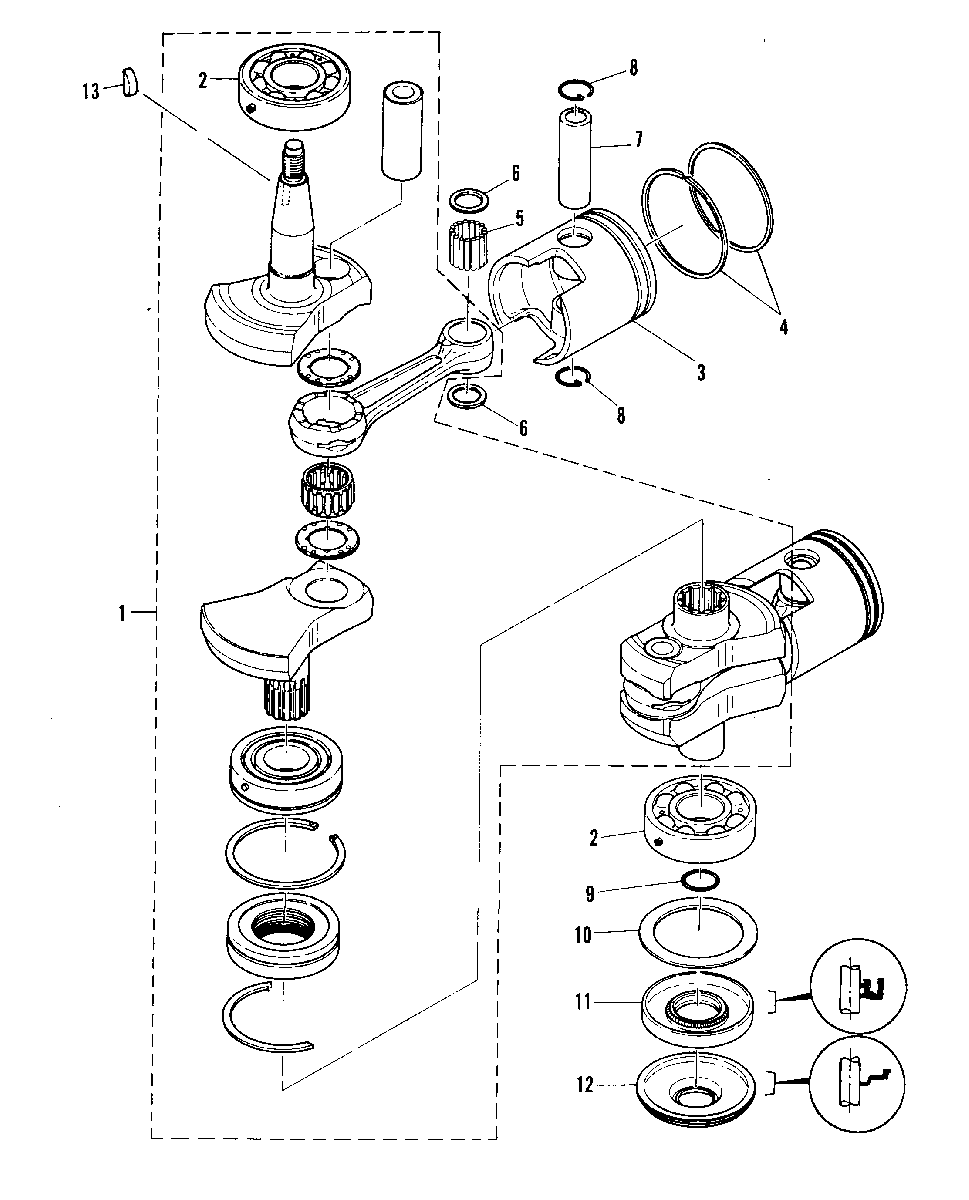

CRANKSHAFT AND PISTON для Mariner - 28 664-38146 AND UP
-
№АртикулНазвание
-
1463-9245M CRANKSHAFT ASS'YCRANKSHAFT ASS'Y
-
230-82307T BEARING, CRANKSHAFTBEARING, CRANKSHAFT
-
3761-8375M PISTON (STD 66.96 MM)PISTON (STD 66.96 MM)
-
3761-8375M PISTON (STD 66.97 MM)PISTON (STD 66.97 MM)
-
3761-8375M PISTON (STD 66.98 MM)PISTON (STD 66.98 MM)
-
3761-8376M PISTON (1ST O.X. 67.25 MM)PISTON (1ST O.X. 67.25 MM)
-
3761-8377M PISTON (2ND O.S. 67.50 MM)PISTON (2ND O.S. 67.50 MM)
-
439-81095T PISTON RING SET (STD)PISTON RING SET (STD)
-
439-81096T PISTON RING SET (1ST O.S. 67.25 MM)PISTON RING SET (1ST O.S. 67.25 MM)
-
439-81097T PISTON RING SET (2ND O.S. 67.50 MM)PISTON RING SET (2ND O.S. 67.50 MM)
-
529-84452M BEARING, NEEDLEBEARING, NEEDLE
-
612-81829M WASHER, CONNECTING ROD BEARINGWASHER, CONNECTING ROD BEARING
-
741-80565M PIN, PISTONPIN, PISTON
-
853-82345M SNAP RINGSNAP RING
-
925-82268M O-RING, CRANKSHAFT TO DRIVESHAFTO-RING, CRANKSHAFT TO DRIVESHAFT
-
1023-81842M SPACER, INNER BEARINGSPACER, INNER BEARING
-
1126-82246M OIL SEAL, CRANKSHAFT (LOWER)OIL SEAL, CRANKSHAFT (LOWER)
-
1282254M RETAINER, OIL SEALRETAINER, OIL SEAL
-
1328-8M0057164 KEY, CRANKSHAFT TO FLYWHEELKEY, CRANKSHAFT TO FLYWHEEL
