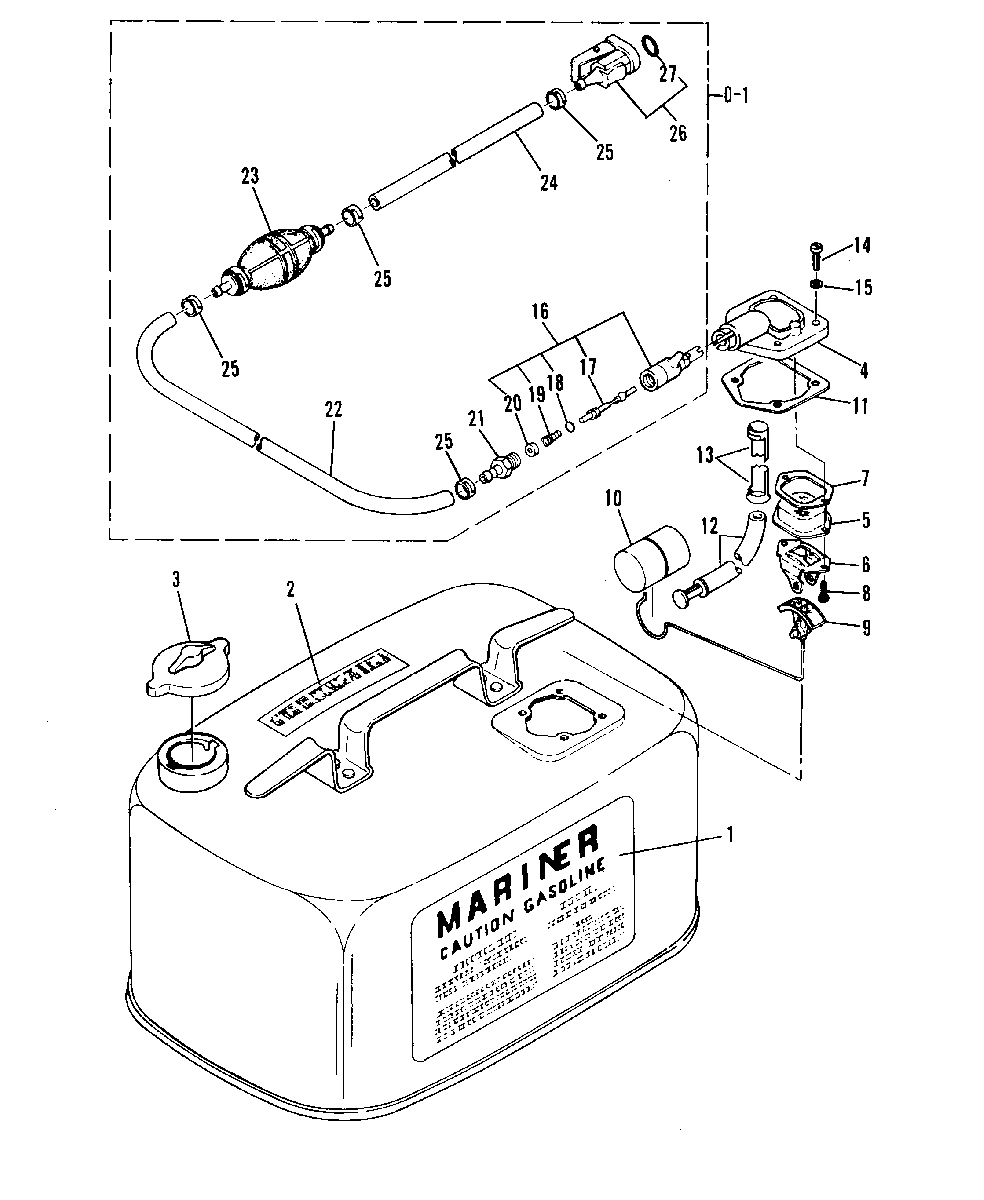

FUEL TANK-INTERNATIONAL AND USA (ORIGINAL EQUIP) 24 LITRE для Mariner - 28 664-38146 AND UP
-
№АртикулНазвание
-
137-82984M DECAL, SIDEDECAL, SIDE
-
237-82962M DECAL, TOPDECAL, TOP
-
336-18962M FUEL TANK CAPFUEL TANK CAP
-
483618M FUEL METERFUEL METER
-
580269M LENS, INDICATORLENS, INDICATOR
-
680268M BRACKET, INDICATORBRACKET, INDICATOR
-
727-17540M GASKET, HOUSING TO LEN INDICATORGASKET, HOUSING TO LEN INDICATOR
-
810-83523M SCREWSCREW
-
981318M INDICATOR, FUEL LEVELINDICATOR, FUEL LEVEL
-
1081319M FLOAT, INDICATORFLOAT, INDICATOR
-
1127-81320M GASKET, HOUSING TO TANKGASKET, HOUSING TO TANK
-
1232-94727M HOSE, PICKUPHOSE, PICKUP
-
1354-83764M CLAMP, PICKUP HOSECLAMP, PICKUP HOSE
-
1410-83356M SCREW, HOUSING ATTACHINGSCREW, HOUSING ATTACHING
-
1512-95501M WASHER, HOUSING SCREWWASHER, HOUSING SCREW
-
0-132-877681Q8 FUEL LINE ASS'YFUEL LINE ASS'Y
-
1630185Q3 BAYONET BODY ASS'YBAYONET BODY ASS'Y
-
1730185Q3 STEM, BAYONET BODYSTEM, BAYONET BODY
-
1825-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
1924-30189 SPRING, BAYONET BODY STEMSPRING, BAYONET BODY STEM
-
2030188 WASHER, CAPWASHER, CAP
-
2122-63187 FITTING,FUEL LINEFITTING,FUEL LINE
-
2232-94727M HOSE, CONNECTOR HOUSING TO BULBHOSE, CONNECTOR HOUSING TO BULB
-
2389396Q01 BULB, PRIMERBULB, PRIMER
-
2432-94727M HOSE, BULB TO CONNECTORHOSE, BULB TO CONNECTOR
-
2554-16725M CLAMP, HOSECLAMP, HOSE
-
2622-14213Q FUEL CONNECTOR, ENGINE ENDFUEL CONNECTOR, ENGINE END
-
2725-82789M O-RINGO-RING
