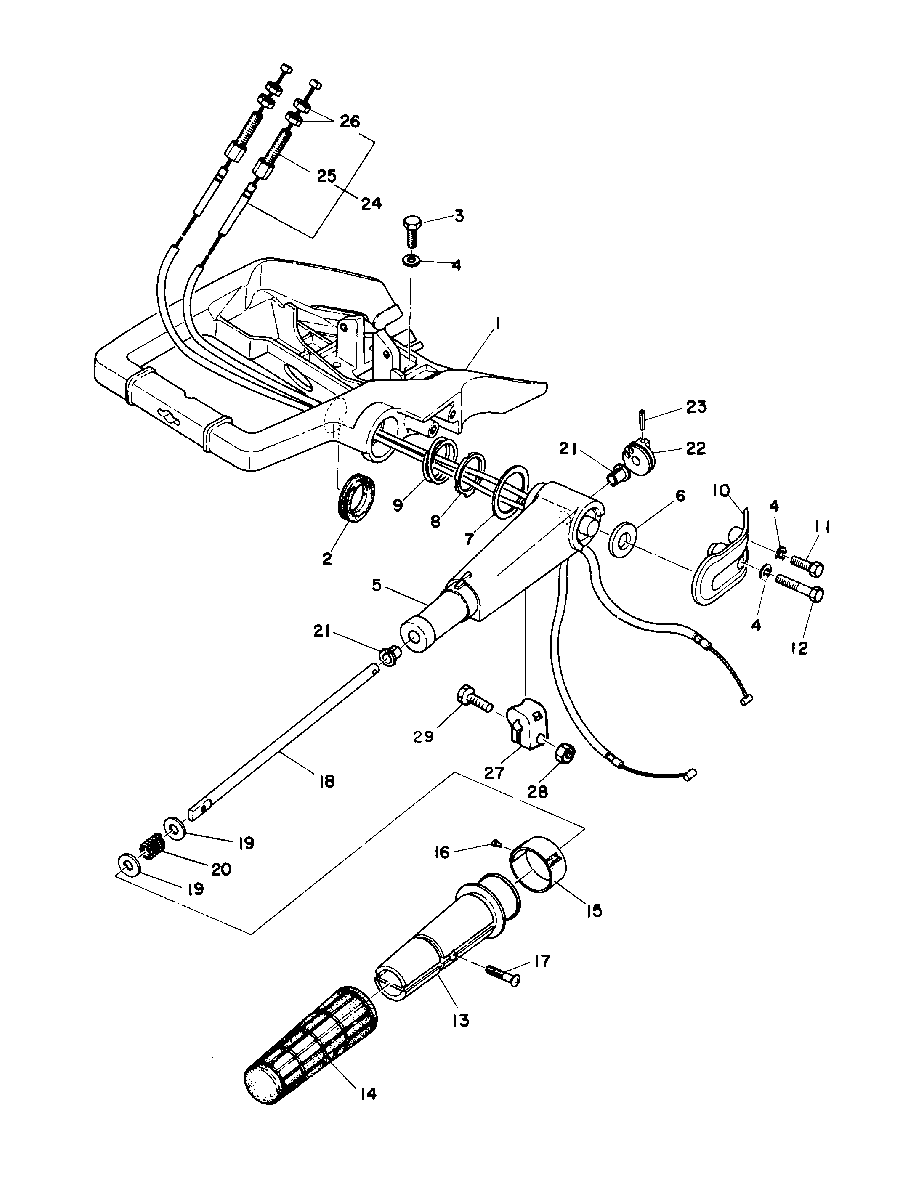

STEERING HANDLE для Mariner - 28 664-04605 AND BELOW

  • №
    Артикул
    Название
  • 1
    19113M BRACKET, STEERING
    BRACKET, STEERING
  • 2
    25-82070M GROMMET, STEERING HANDLE
    GROMMET, STEERING HANDLE
  • 3
    10-84058M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 4
    13-82212M LOCK WASHER
    LOCK WASHER
  • 5
    81583M ARM, STEERING
    ARM, STEERING
  • 6
    23-82119M SPACER, STEERING ARM
    SPACER, STEERING ARM
  • 7
    23-81861M SPACER, STEERING ARM
    SPACER, STEERING ARM
  • 8
    23-81136M RETAINER, COMPRESSION SPRING
    RETAINER, COMPRESSION SPRING
  • 9
    24-82093M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 10
    81129M RETAINER, STEERING ARM
    RETAINER, STEERING ARM
  • 11
    10-84058M BOLT, RETAINER ATTACHING
    BOLT, RETAINER ATTACHING
  • 12
    10-83285M BOLT, RETAINER ATTACHING
    BOLT, RETAINER ATTACHING
  • 13
    81585M HANDLE, THROTTLE
    HANDLE, THROTTLE
  • 14
    80509M GRIP, THROTTLE HANLE
    GRIP, THROTTLE HANLE
  • 15
    81586M INDICATOR, THROTTLE
    INDICATOR, THROTTLE
  • 16
    17-81907M RIVET, INDICATOR
    RIVET, INDICATOR
  • 17
    10-811916M SCREW, HANDLE ATTACHING
    SCREW, HANDLE ATTACHING
  • 18
    81584M SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 19
    12-82220M WASHER, THROTTLE SHAFT
    SERIAL 00000000-00001725
    WASHER, THROTTLE SHAFT
    SERIAL 00000000-00001725
  • 19
    12-82220M WASHER, THROTTLE SHAFT
    SERIAL 00001726-09999999
    WASHER, THROTTLE SHAFT
    SERIAL 00001726-09999999
  • 20
    24-82095M SPRING, THROTTLE SHAFT
    SPRING, THROTTLE SHAFT
  • 21
    23-81945M BUSHING, STEERING ARM
    BUSHING, STEERING ARM
  • 22
    84510M CAM, THROTTLE
    CAM, THROTTLE
  • 23
    17-82151M PIN, THROTTLE CAM
    PIN, THROTTLE CAM
  • 24
    81567M CABLE, THROTTLE
    CABLE, THROTTLE
  • 25
    10-815139M ADJUSTER, CABLE
    ADJUSTER, CABLE
  • 26
    11-81765M NUT, CABLE ADJUSTMENT
    NUT, CABLE ADJUSTMENT
  • 27
    82895M PIECE, FRICTION
    SERIAL 00001726-09999999
    PIECE, FRICTION
    SERIAL 00001726-09999999
  • 28
    11-83056M NUT
    SERIAL 00001726-09999999
    NUT
    SERIAL 00001726-09999999
  • 29
    10-84058M BOLT
    SERIAL 00001726-09999999
    BOLT
    SERIAL 00001726-09999999
