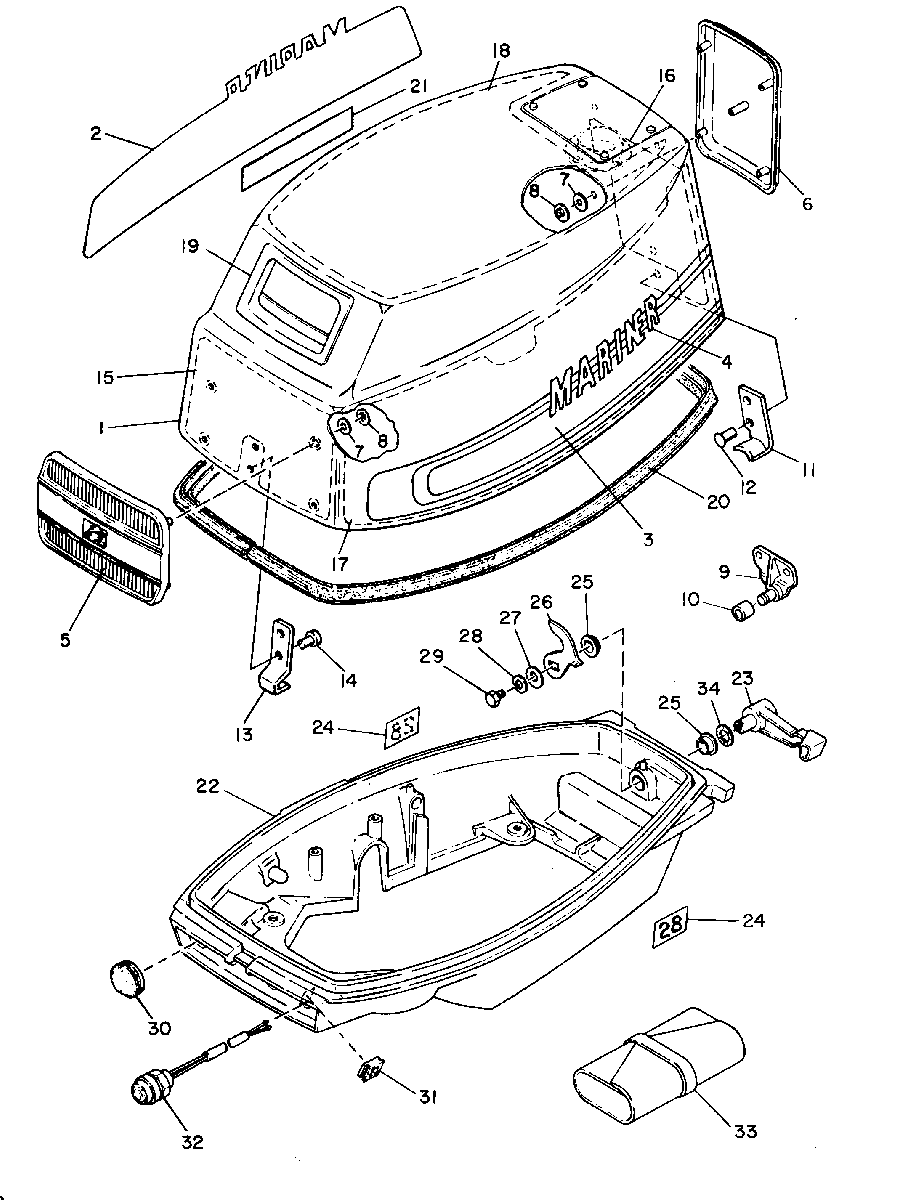

COWLING для Mariner - 28 664-04605 AND BELOW

  • №
    Артикул
    Название
  • 1
    2168-6852M TOP COWL ASS'Y
    TOP COWL ASS'Y
  • 2
    37-81114M DECAL, TRIM-STARBOARD
    SERIAL 00000000-00004605
    DECAL, TRIM-STARBOARD
    SERIAL 00000000-00004605
  • 2
    37-81114M DECAL, TRIM-STARBOARD
    SERIAL 00004606-09999999
    DECAL, TRIM-STARBOARD
    SERIAL 00004606-09999999
  • 3
    37-81114M DECAL, TRIM-PORT
    SERIAL 00000000-00004605
    DECAL, TRIM-PORT
    SERIAL 00000000-00004605
  • 3
    37-81114M DECAL, TRIM-PORT
    SERIAL 00004606-09999999
    DECAL, TRIM-PORT
    SERIAL 00004606-09999999
  • 4
    37-81114M DECAL, "MARINER"
    SERIAL 00000000-00004605
    DECAL, "MARINER"
    SERIAL 00000000-00004605
  • 5
    82898M APPLIQUE, FRONT
    SERIAL 00000000-00004605
    APPLIQUE, FRONT
    SERIAL 00000000-00004605
  • 5
    82898M APPLIQUE, FRONT
    SERIAL 00004606-09999999
    APPLIQUE, FRONT
    SERIAL 00004606-09999999
  • 6
    82913M APPLIQUE, REAR
    SERIAL 00000000-00004605
    APPLIQUE, REAR
    SERIAL 00000000-00004605
  • 6
    82913M APPLIQUE, REAR
    SERIAL 00004606-09999999
    APPLIQUE, REAR
    SERIAL 00004606-09999999
  • 7
    12-80884M WASHER, APPLIQUE NUT
    SERIAL 00000000-00004605
    WASHER, APPLIQUE NUT
    SERIAL 00000000-00004605
  • 7
    12-80884M WASHER, APPLIQUE NUT
    SERIAL 00004606-09999999
    WASHER, APPLIQUE NUT
    SERIAL 00004606-09999999
  • 8
    11-82927M NUT, APPLIQUE ATTACHING
    SERIAL 00000000-00004605
    NUT, APPLIQUE ATTACHING
    SERIAL 00000000-00004605
  • 8
    11-82927M NUT, APPLIQUE ATTACHING
    SERIAL 00004606-09999999
    NUT, APPLIQUE ATTACHING
    SERIAL 00004606-09999999
  • 9
    83318M HOLDER, CLAMP BAND
    SERIAL 00000000-00001725
    HOLDER, CLAMP BAND
    SERIAL 00000000-00001725
  • 10
    23-80227M BUSHING
    SERIAL 00000000-00001725
    BUSHING
    SERIAL 00000000-00001725
  • 11
    83212M HOLDER, CLAMP BAND
    SERIAL 00001726-09999999
    HOLDER, CLAMP BAND
    SERIAL 00001726-09999999
  • 12
    17-84903M RIVET
    RIVET
  • 13
    83137M HOOK
    HOOK
  • 14
    17-83140M RIVET
    RIVET
  • 15
    84323M SOUND BLANKET
    SOUND BLANKET
  • 16
    84323M SOUND BLANKET
    SOUND BLANKET
  • 17
    83125M SOUND BLANKET
    SOUND BLANKET
  • 18
    83232M SOUND BLANKET
    SOUND BLANKET
  • 19
    80601M SEAL, RUBBER-STARTER
    SEAL, RUBBER-STARTER
  • 20
    84901M SEAL, TOP COWL
    SEAL, TOP COWL
  • 21
    37-81202M INDICATOR, SHIFT
    INDICATOR, SHIFT
  • 22
    2168-6853M BOTTOM COWL
    BOTTOM COWL
  • 23
    81591M LEVER, COWL CLAMP
    LEVER, COWL CLAMP
  • 24
    37-82915M GRAPHIC, SIDE
    SERIAL 00000000-00004606
    GRAPHIC, SIDE
    SERIAL 00000000-00004606
  • 25
    23-81949M BUSHING, COWL CLAMP LEVER
    BUSHING, COWL CLAMP LEVER
  • 26
    82634M CLAMP, COWL
    SERIAL 00000000-00001725
    CLAMP, COWL
    SERIAL 00000000-00001725
  • 26
    54-84914M CLAMP, COWL
    SERIAL 00001726-09999999
    CLAMP, COWL
    SERIAL 00001726-09999999
  • 27
    12-81794M WASHER, COWL CLAMP LEVER
    WASHER, COWL CLAMP LEVER
  • 28
    13-82212M LOCK WASHER, COWL CLAMP LEVER
    LOCK WASHER, COWL CLAMP LEVER
  • 29
    10-84088M BOLT, CLAMP LEVER ATTACHING
    BOLT, CLAMP LEVER ATTACHING
  • 30
    25-81589M GROMMET, BOTTOM COWL (MANUAL START ONLY)
    GROMMET, BOTTOM COWL (MANUAL START ONLY)
  • 31
    25-82064M GROMMET, BOTTOM COWL
    GROMMET, BOTTOM COWL
  • 32
    87-91622M STOP SWITCH (MANUAL START ONLY)
    STOP SWITCH (MANUAL START ONLY)
  • 33
    91-803581 TOOL KIT
    TOOL KIT
  • 34
    13-81869M WASHER, WAVE-COWL CLAMP LEVER
    WASHER, WAVE-COWL CLAMP LEVER
