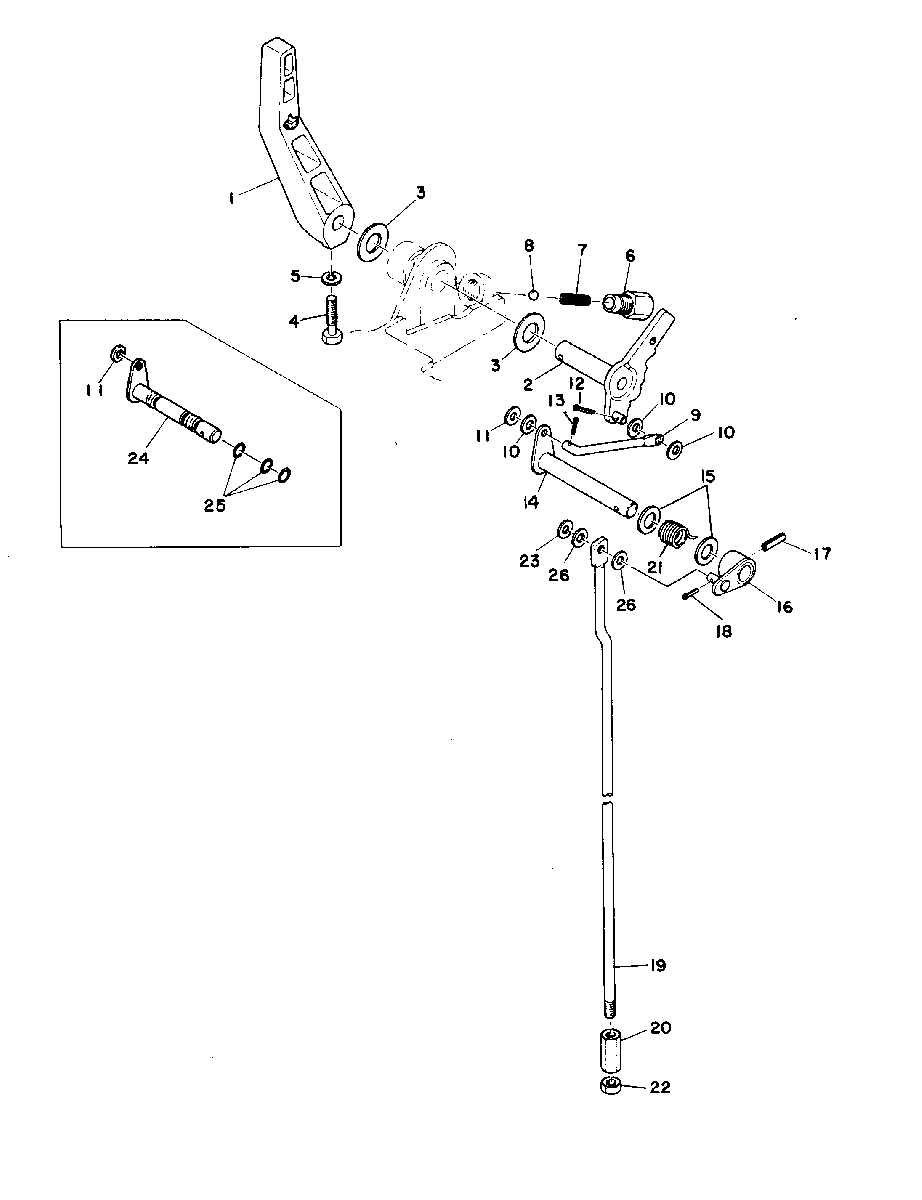

GEAR SHIFT LINKAGE для Mariner - 28 664-04605 AND BELOW

  • №
    Артикул
    Название
  • 1
    81151M HANDLE, GEAR SHIFT
    HANDLE, GEAR SHIFT
  • 2
    81152M CAM, SHIFT
    CAM, SHIFT
  • 3
    12-81851M WASHER, SHIFT HANDLE
    WASHER, SHIFT HANDLE
  • 4
    10-82405M BOLT, SHIFT HANDLE ATTACHING
    BOLT, SHIFT HANDLE ATTACHING
  • 5
    13-82212M LOCK WASHER, HANDLE BOLT
    LOCK WASHER, HANDLE BOLT
  • 6
    23-80635M RETAINER, SHIFT DETENT
    RETAINER, SHIFT DETENT
  • 7
    24-82085M SPRING, SHIFT DETENT
    SPRING, SHIFT DETENT
  • 8
    82346M BALL, SHIFT DETENT
    BALL, SHIFT DETENT
  • 9
    81595M LINK ROD, SHIFT
    LINK ROD, SHIFT
  • 10
    12-81843M WASHER
    SERIAL 00000000-00004808
    WASHER
    SERIAL 00000000-00004808
  • 10
    12-81843M WASHER
    SERIAL 00004606-09999999
    WASHER
    SERIAL 00004606-09999999
  • 11
    12-82211M WASHER
    WASHER
  • 12
    18-82125M PIN, SHIFT CAM
    PIN, SHIFT CAM
  • 13
    18-82125M PIN (COTTER)
    SERIAL 00000000-00001725
    PIN (COTTER)
    SERIAL 00000000-00001725
  • 13
    18-16189 PIN (COTTER)
    SERIAL 00001726-09999999
    PIN (COTTER)
    SERIAL 00001726-09999999
  • 14
    81593M LEVER, SHIFT ROD
    SERIAL 00000000-00025800
    LEVER, SHIFT ROD
    SERIAL 00000000-00025800
  • 15
    12-81846M WASHER, SHIFT ROD
    WASHER, SHIFT ROD
  • 16
    81594M SWIVEL, SHIFT ROD
    SWIVEL, SHIFT ROD
  • 17
    17-82155M PIN, SWIVEL
    PIN, SWIVEL
  • 18
    18-82127M PIN, SHIFT ROD SWIVEL
    PIN, SHIFT ROD SWIVEL
  • 19
    81596M SHAFT, SHIFT-UPPER
    SHAFT, SHIFT-UPPER
  • 20
    80652M NUT, ADJUSTING
    SERIAL 00000000-00001725
    NUT, ADJUSTING
    SERIAL 00000000-00001725
  • 20
    80652M CONNECTOR, SHIFT
    SERIAL 00001726-09999999
    CONNECTOR, SHIFT
    SERIAL 00001726-09999999
  • 21
    24-82108M SPRING, TENSION
    SPRING, TENSION
  • 22
    11-81767M NUT, JAM
    NUT, JAM
  • 23
    12-82211M WASHER
    SERIAL 00000000-00001725
    WASHER
    SERIAL 00000000-00001725
  • 23
    12-82209M WASHER
    SERIAL 00001726-09999999
    WASHER
    SERIAL 00001726-09999999
  • 24
    83208M LEVER, SHIFT ROD
    SERIAL 00004606-09999999
    LEVER, SHIFT ROD
    SERIAL 00004606-09999999
  • 25
    25-82259M O-RING
    SERIAL 00004606-09999999
    O-RING
    SERIAL 00004606-09999999
  • 26
    12-81843M WASHER
    WASHER
