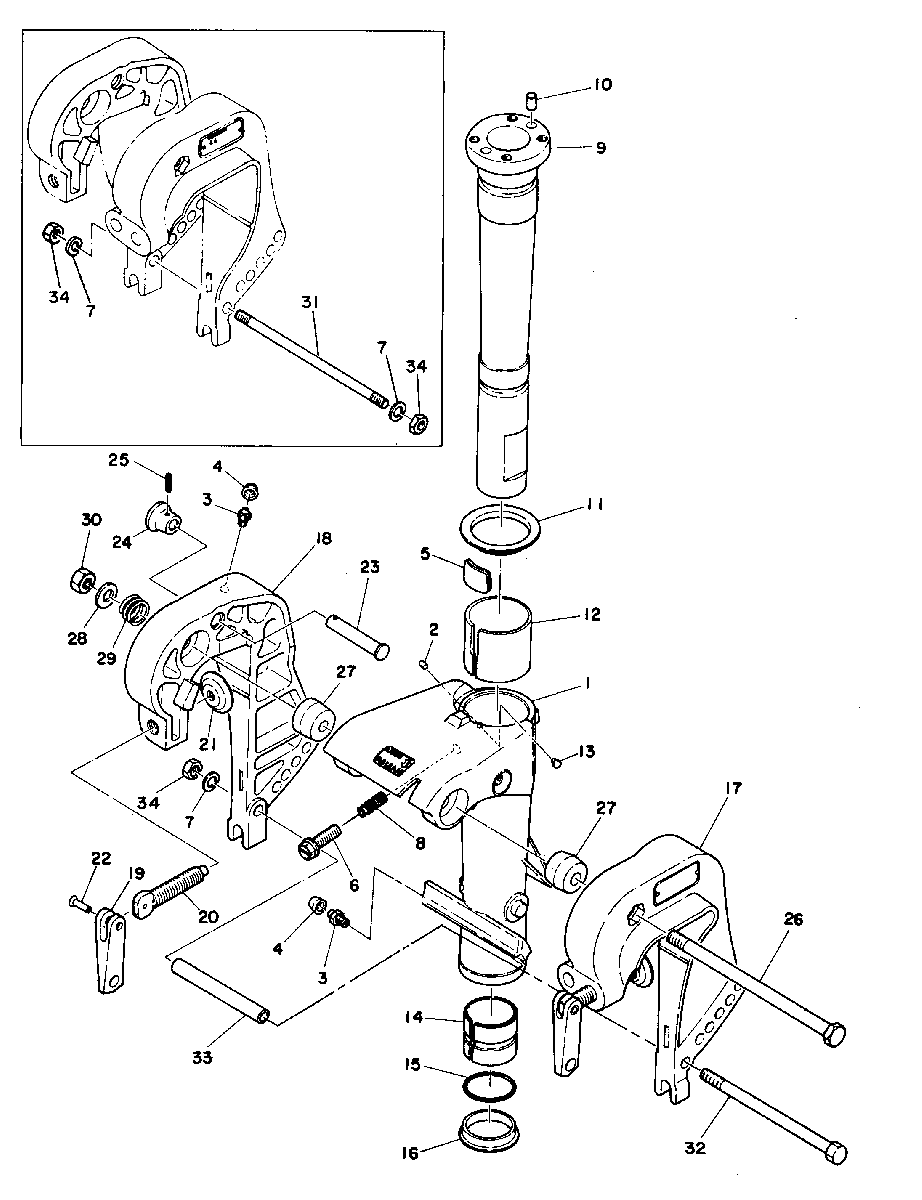

CLAMP AND SWIVEL BRACKET для Mariner - 28 664-04605 AND BELOW

‹-+›
  • №
    Артикул
    Название
  • 1
    1485-6866M SWIVEL BRACKET
    SERIAL 00000000-00001725
    SWIVEL BRACKET
    SERIAL 00000000-00001725
  • 1
    1485-6796M SWIVEL BRACKET
    SERIAL 00000000-00001725
    SWIVEL BRACKET
    SERIAL 00000000-00001725
  • 2
    22-81917M PLUG
    PLUG
  • 3
    22-82369M FITTING, PIVOT SHAFT BUSHING, GREASE
    FITTING, PIVOT SHAFT BUSHING, GREASE
  • 4
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 5
    80633M PLATE, FRICTION
    PLATE, FRICTION
  • 6
    10-81754M SCREW, FRICTION PLATE ADJUSTING
    SCREW, FRICTION PLATE ADJUSTING
  • 7
    13-82215M LOCK WASHER, CLAMP BRACKET STUD
    SERIAL 00000000-00004605
    LOCK WASHER, CLAMP BRACKET STUD
    SERIAL 00000000-00004605
  • 7
    13-82215M LOCK WASHER
    SERIAL 00004606-09999999
    LOCK WASHER
    SERIAL 00004606-09999999
  • 8
    24-82088M SPRING, FRICTION PLATE SCREW
    SPRING, FRICTION PLATE SCREW
  • 9
    84833M SHAFT, STEERING PIVOT
    SHAFT, STEERING PIVOT
  • 10
    17-82368M PIN, DOWEL-PIVOT SHAFT
    PIN, DOWEL-PIVOT SHAFT
  • 11
    12-81873M COLLAR, THRUST & PIVOT SHAFT
    COLLAR, THRUST & PIVOT SHAFT
  • 12
    23-81963M BUSHING, PIVOT SHAFT-UPPER
    SERIAL 00000000-00001725
    BUSHING, PIVOT SHAFT-UPPER
    SERIAL 00000000-00001725
  • 12
    23-81964M BUSHING, PIVOT SHAFT-UPPER
    SERIAL 00001726-09999999
    BUSHING, PIVOT SHAFT-UPPER
    SERIAL 00001726-09999999
  • 13
    17-81887M PIN, PIVOT SHAFT BUSHING
    PIN, PIVOT SHAFT BUSHING
  • 14
    23-81959M BUSHING, PIVOT SHAFT-LOWER
    BUSHING, PIVOT SHAFT-LOWER
  • 15
    25-82274M O-RING, PIVOT SHAFT BUSHING
    O-RING, PIVOT SHAFT BUSHING
  • 16
    23-81961M COLLAR, THRUST-PIVOT SHAFT
    COLLAR, THRUST-PIVOT SHAFT
  • 17
    1484-6794M CLAMP BRACKET, PORT
    CLAMP BRACKET, PORT
  • 18
    1484-6795M CLAMP BRACKET, STARBOARD
    CLAMP BRACKET, STARBOARD
  • 19
    809959M HANDLE, TRANSOM CLAMP SCREW
    HANDLE, TRANSOM CLAMP SCREW
  • 20
    10-81756M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 21
    12-80638M PAD, TRANSOM CLAMP SCREW
    PAD, TRANSOM CLAMP SCREW
  • 22
    17-81888M PIN, TRANSOM CLAMP SCREW
    PIN, TRANSOM CLAMP SCREW
  • 23
    17-81150M SHAFT, TILT STOP
    SHAFT, TILT STOP
  • 24
    95426M KNOB, TILT STOP SHAFT
    KNOB, TILT STOP SHAFT
  • 25
    17-82148M PIN, TILT STOP KNOB
    PIN, TILT STOP KNOB
  • 26
    10-81146M BOLT, CLAMP BRACKET
    BOLT, CLAMP BRACKET
  • 27
    80639M MOUNT, RUBBER CLAMP BRACKET
    MOUNT, RUBBER CLAMP BRACKET
  • 28
    12-81806M WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 29
    24-82101M SPRING, CLAMP BRACKET BOLT
    SPRING, CLAMP BRACKET BOLT
  • 30
    11-82395M NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 31
    16-81738M STUD, CLAMP BRACKET
    SERIAL 00000000-00004605
    STUD, CLAMP BRACKET
    SERIAL 00000000-00004605
  • 32
    10-82924M BOLT, CALMP BRACKET
    SERIAL 00004606-09999999
    BOLT, CALMP BRACKET
    SERIAL 00004606-09999999
  • 33
    23-19108M SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 34
    11-82382M NUT, CLAMP BRACKET STUD
    SERIAL 00000000-00004605
    NUT, CLAMP BRACKET STUD
    SERIAL 00000000-00004605
  • 34
    11-82382M NUT
    SERIAL 00004606-09999999
    NUT
    SERIAL 00004606-09999999
