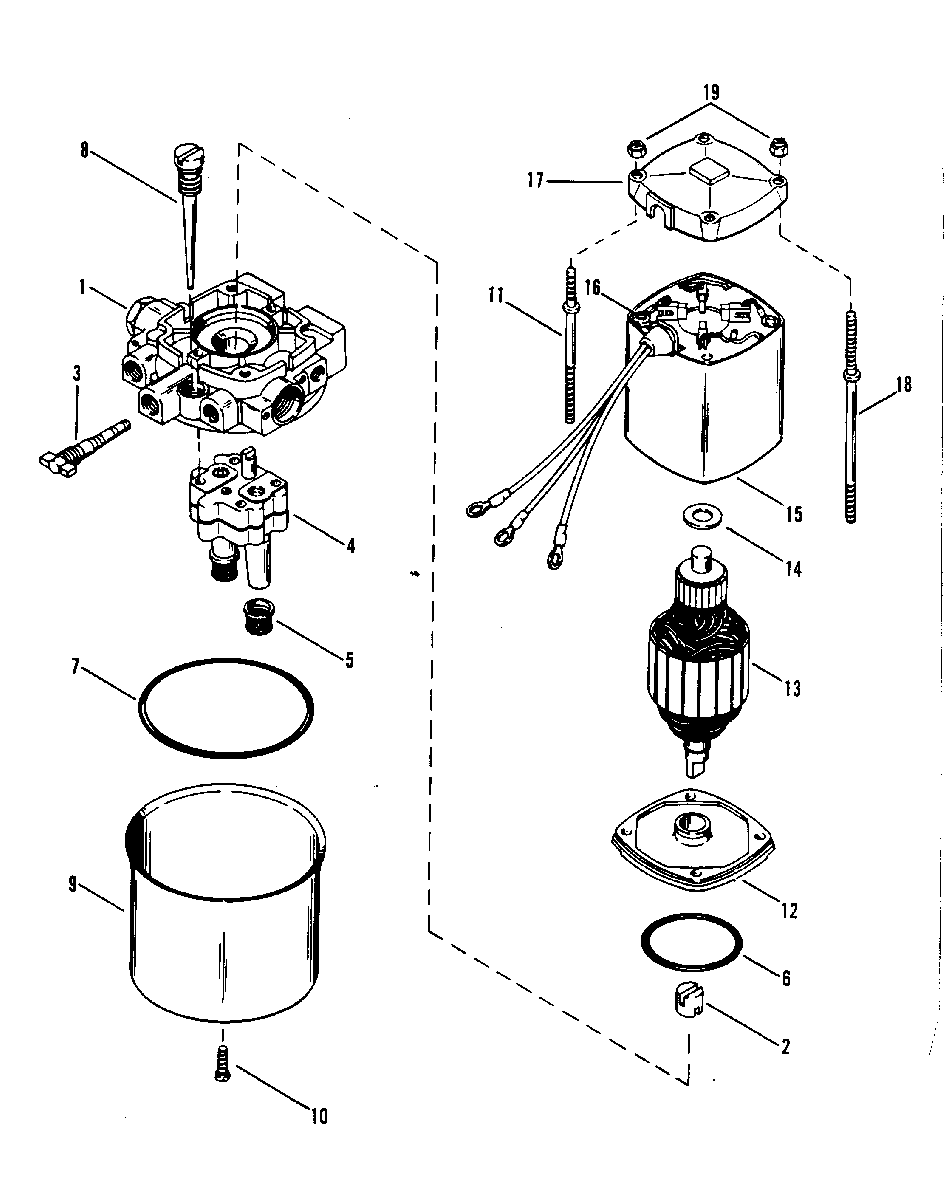

HYDRAULIC PUMP (DESIGN I) для Mariner - 250/275 0C101891 AND UP
-
№АртикулНазвание
-
-823653A9 HYDRAULIC ASSEMBLYHYDRAULIC ASSEMBLY
-
1823653A9 ADAPTORADAPTOR
-
2803852 COUPLINGCOUPLING
-
399073A2 MANUAL RELEASE (INCLUDES 2 O-RINGS)MANUAL RELEASE (INCLUDES 2 O-RINGS)
-
399073A2 MANUAL RELEASE (INCLUDES 3 0-RINGS)MANUAL RELEASE (INCLUDES 3 0-RINGS)
-
4823653A9 PUMP (INCLUDES SCREWS)PUMP (INCLUDES SCREWS)
-
535-89496 FILTERFILTER
-
625-89498 O-RINGO-RING
-
725-89497 O-RINGO-RING
-
889499 DIPSTICKDIPSTICK
-
990587T RESERVOIRRESERVOIR
-
1010-90588 SCREW (INCLUDES O-RING)SCREW (INCLUDES O-RING)
-
1116-90589 THRU STUD (SHORT)THRU STUD (SHORT)
-
1116-90590 THRU STUD (LONG)THRU STUD (LONG)
-
-17649A02 MOTORMOTOR
-
1289484 END FRAME, DRIVE ENDEND FRAME, DRIVE END
-
1389485 ARMATUREARMATURE
-
1412-89482 THRUST WASHERTHRUST WASHER
-
1589486 FIELD AND FRAMEFIELD AND FRAME
-
1617649A02 BRUSH CARDBRUSH CARD
-
1789488 END FRAME, COMMUTATOR ENDEND FRAME, COMMUTATOR END
-
1810-89483 THRU BOLT (4-1/4")THRU BOLT (4-1/4")
-
1810-89489 THRU BOLT 4-9/16")THRU BOLT 4-9/16")
-
1911-89481 NUTNUT
-
-812501A1 RELIEF VALVE REPAIR KITRELIEF VALVE REPAIR KIT
-
-99073A2 OVERHAUL REPAIR KITOVERHAUL REPAIR KIT
