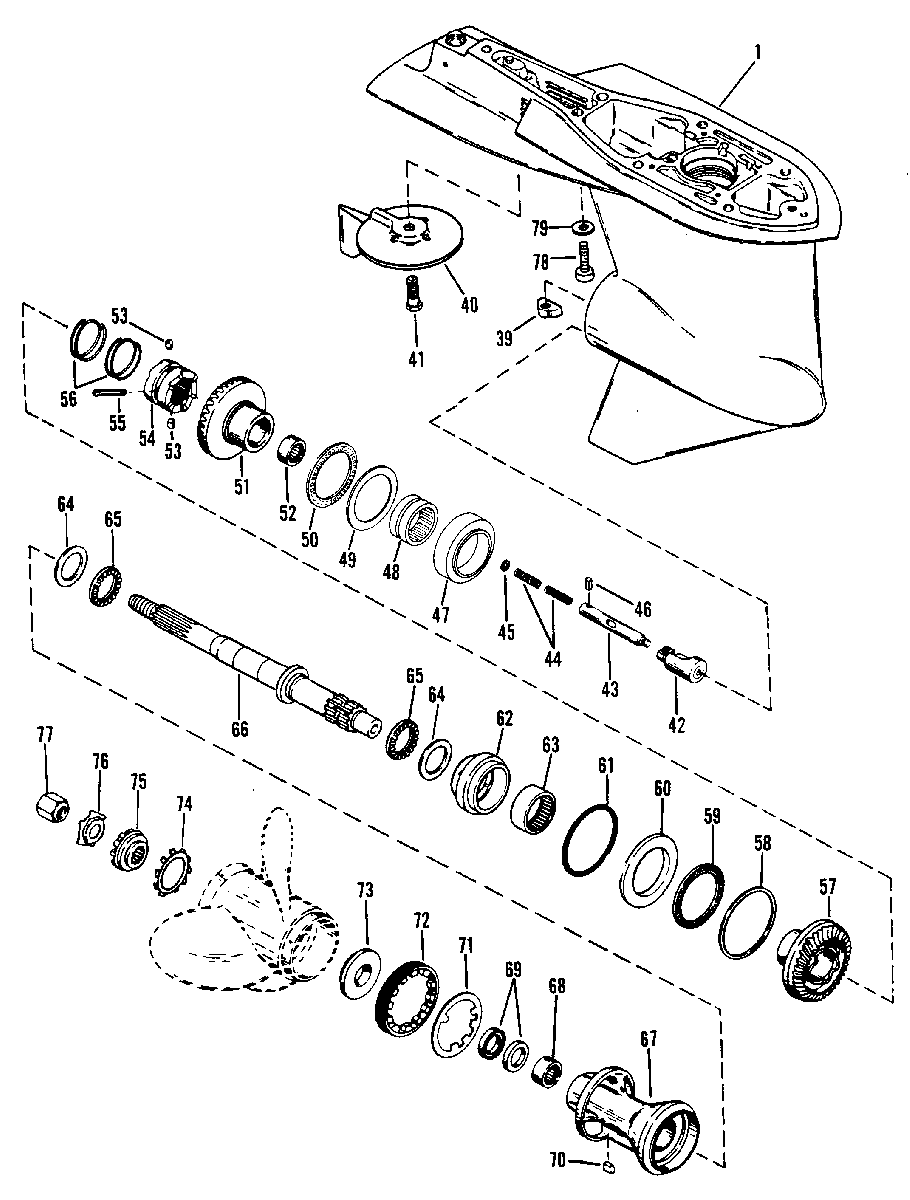

GEAR HOUSING (PROPELLER SHAFT) (COUNTER ROTATION) для Mariner - 250/275 0C101891 AND UP
-
№АртикулНазвание
-
-1659-9554A16 GEAR HOUSING, COMPLETE (X-LONG) (BLACK)GEAR HOUSING, COMPLETE (X-LONG) (BLACK)
-
-1659-9554A17 GEAR HOUSING, COMPLETE (XX-LONG) (BLACK)GEAR HOUSING, COMPLETE (XX-LONG) (BLACK)
-
-1659-9554A18 GEAR HOUSING, COMPLETE (X-LONG) (GRAY)GEAR HOUSING, COMPLETE (X-LONG) (GRAY)
-
-1659-9554A19 GEAR HOUSING, COMPLETE (XX-LONG) (GRAY)GEAR HOUSING, COMPLETE (XX-LONG) (GRAY)
-
11659-9554A23 GEAR HOUSING (BLACK)GEAR HOUSING (BLACK)
-
11659-9554A24 GEAR HOUSING (GRAY)GEAR HOUSING (GRAY)
-
39789562 SHIFT CAMSHIFT CAM
-
40803833T TRIM TABTRIM TAB
-
4110-90042 SCREWSCREW
-
4289594A1 CAM FOLLOWERCAM FOLLOWER
-
4388523A1 CLUTCH ACTUATOR RODCLUTCH ACTUATOR ROD
-
4424-88579 SPRINGSPRING
-
4512-78910 WASHERWASHER
-
4617-8M0084245 PINPIN
-
47815362T1 BEARING ADAPTOR ASSEMBLYBEARING ADAPTOR ASSEMBLY
-
4831-814653T ROLLER BEARINGROLLER BEARING
-
4912-815481 THRUST WASHERTHRUST WASHER
-
5031-815480 THRUST BEARINGTHRUST BEARING
-
51N.S.S. REVERSE GEAR (PART OF 43-81975A1)REVERSE GEAR (PART OF 43-81975A1)
-
5231-815482 ROLLER BEARINGROLLER BEARING
-
5317-78909 DETENT PINDETENT PIN
-
5452-823580 RATCHETRATCHET
-
5517-8M0084243 CROSS PINCROSS PIN
-
5624-78962 SPRINGSPRING
-
5743-812975A6 GEAR SETGEAR SET
-
5823-1761514 SPACER SHIM .206"SPACER SHIM .206"
-
5823-1761515 SPACER SHIM .208"SPACER SHIM .208"
-
5823-1761516 SPACER SHIM .210"SPACER SHIM .210"
-
5823-1761517 SPACER SHIM .212"SPACER SHIM .212"
-
5823-1761518 SPACER SHIM .214"SPACER SHIM .214"
-
5823-1761519 SPACER SHIM .216"SPACER SHIM .216"
-
5823-1761520 SPACER SHIM .218"SPACER SHIM .218"
-
5823-1761521 SPACER SHIM .220"SPACER SHIM .220"
-
5823-1761522 SPACER SHIM .222"SPACER SHIM .222"
-
5823-1761523 SPACER SHIM .224"SPACER SHIM .224"
-
5823-1761524 SPACER SHIM .226"SPACER SHIM .226"
-
5823-1761525 SPACER SHIM .228"SPACER SHIM .228"
-
5823-1761526 SPACER SHIM .230"SPACER SHIM .230"
-
5931-15841 ROLLER BEARINGROLLER BEARING
-
6012-17616 THRUST RINGTHRUST RING
-
6125-31534 O-RINGO-RING
-
62814604T1 BEARING ADAPTORBEARING ADAPTOR
-
6331-814653T ROLLER BEARINGROLLER BEARING
-
6412-18448 THRUST WASHERTHRUST WASHER
-
6531-15842 THRUST BEARINGTHRUST BEARING
-
6644-812977 PROPELLER SHAFTPROPELLER SHAFT
-
67812976A1 BEARING CARRIERBEARING CARRIER
-
6831-30956T ROLLER BEARINGROLLER BEARING
-
6926-76868 OIL SEALOIL SEAL
-
7028-30281 KEYKEY
-
7114-79447 TAB WASHERTAB WASHER
-
728M2000347 COVERCOVER
-
7312-835467Q01 THRUST HUBTHRUST HUB
-
7413-423511 LOCKWASHERLOCKWASHER
-
7512-31211Q03 SPLINED WASHERSPLINED WASHER
-
7614-816629Q TAB WASHERTAB WASHER
-
7711-52707Q1 PROPELLER NUTPROPELLER NUT
-
7810-95705 SCREWSCREW
-
7912-45176 WASHERWASHER
-
-27-88605A89 COMPONENT OF GASKET SETCOMPONENT OF GASKET SET
