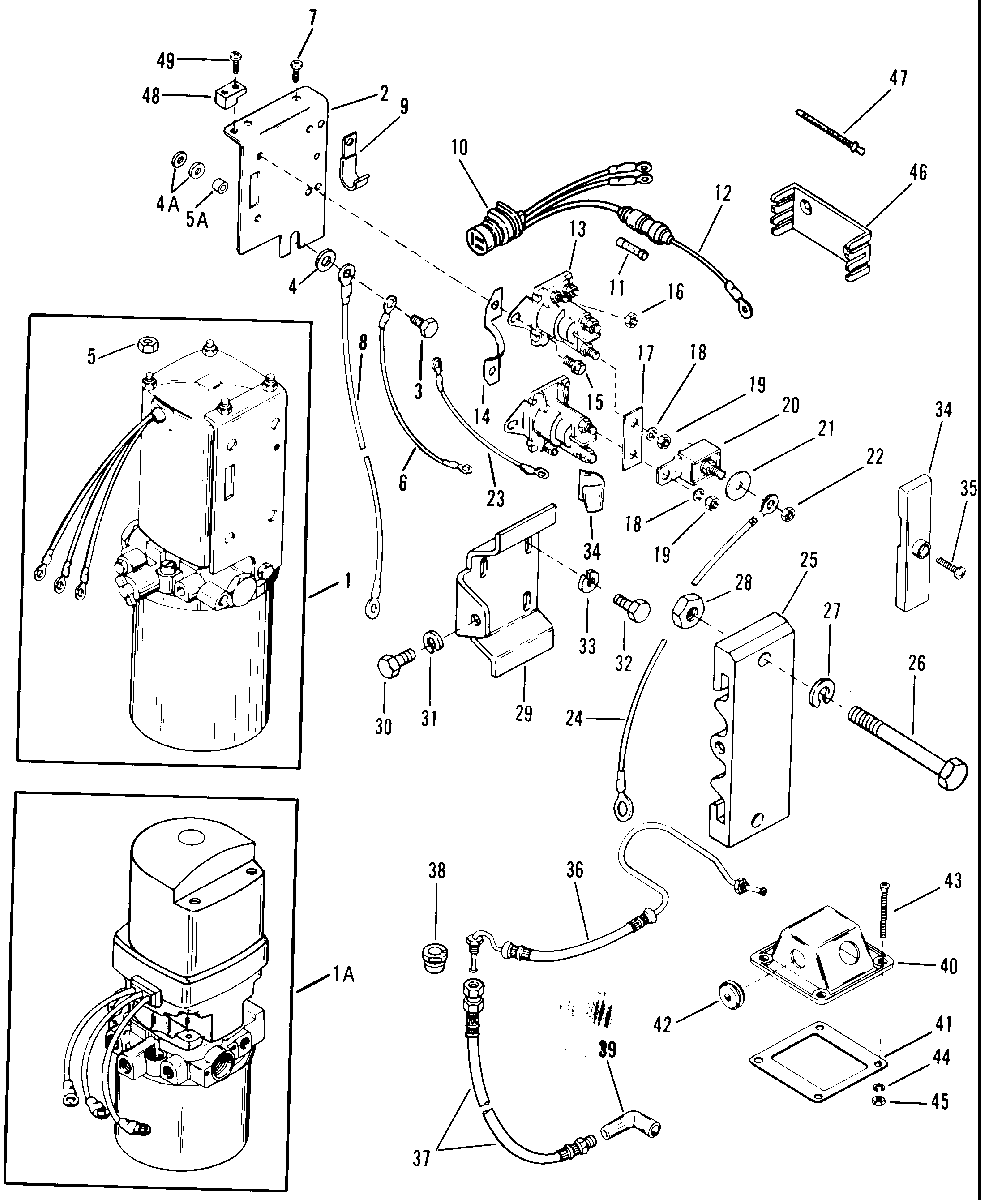

HYDRAULIC PUMP AND MOUNTING BRACKETS для Mariner - 250/275 0C101891 AND UP
-
№АртикулНазвание
-
1823653A9 HYDRAULIC PUMP (DESIGN I)HYDRAULIC PUMP (DESIGN I)
-
290318 BRACKET (DESIGN I)BRACKET (DESIGN I)
-
310-90285 SCREW (5/8") (DESIGN I)SCREW (5/8") (DESIGN I)
-
412-56720 WASHER (DESIGN I)WASHER (DESIGN I)
-
511-8267096 NUT (DESIGN I)NUT (DESIGN I)
-
884-79138A9 BATTERY CABLE (BLACK - NEGATIVE)BATTERY CABLE (BLACK - NEGATIVE)
-
954-55098 J-CLIPJ-CLIP
-
1084-79147A3 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1188-79091 FUSEFUSE
-
1284-95084A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
1389-96158T STARTER SOLENOIDSTARTER SOLENOID
-
1488075 RETAINERRETAINER
-
1510-41508 SCREW (3/8")SCREW (3/8")
-
1611-26419 NUT (#8-32)NUT (#8-32)
-
1794275 CONNECTORCONNECTOR
-
1813-26992 LOCKWASHER (1/4")LOCKWASHER (1/4")
-
1911-94330 NUT (1/4-20)NUT (1/4-20)
-
2088-79023T10 FUSE (110 AMP)FUSE (110 AMP)
-
2112-96457 WASHERWASHER
-
2211-21825 NUTNUT
-
2384-86322A15 WIRE (BLACK)WIRE (BLACK)
-
2484-79139A12 BATTERY CABLE (RED-POSITIVE)BATTERY CABLE (RED-POSITIVE)
-
2587762 BRACKETBRACKET
-
2610-31830 BOLT (3-1/2")BOLT (3-1/2")
-
2713-58643 LOCKWASHERLOCKWASHER
-
2811-46335 NUTNUT
-
2987760T PLATEPLATE
-
3010-39349 SCREW (3/4")SCREW (3/4")
-
3113-26993 LOCKWASHERLOCKWASHER
-
3210-90271 SCREW (5/8")SCREW (5/8")
-
3313-58643 LOCKWASHERLOCKWASHER
-
3485-861680 BOOTBOOT
-
3510-48409 SCREWSCREW
-
3632-96993 HYDRAULIC HOSE (PORT)HYDRAULIC HOSE (PORT)
-
3632-96994 HYDRAULIC HOSE (STARBOARD)HYDRAULIC HOSE (STARBOARD)
-
3732-89024 HYDRAULIC HOSE (PORT)HYDRAULIC HOSE (PORT)
-
3732-89023 HYDRAULIC HOSE (STARBOARD)HYDRAULIC HOSE (STARBOARD)
-
3825-12602002 GROMMETGROMMET
-
3922-87207 CONNECTORCONNECTOR
-
4087871T COVERCOVER
-
4127-87775 GASKETGASKET
-
4225-45507 GROMMETGROMMET
-
4310-36070 SCREWSCREW
-
4413-26996 LOCKWASHERLOCKWASHER
-
4511-68219 NUTNUT
-
4679146 RETAINERRETAINER
-
4754-816311T STA-STRAPSTA-STRAP
-
4886-45915 TERMINAL BLOCKTERMINAL BLOCK
-
4910-69079 SCREWSCREW
-
-84-65017A14 TILT HARNESSTILT HARNESS
-
1A823653A9 HYDRAULIC PUMP (DESIGN II)HYDRAULIC PUMP (DESIGN II)
-
2818567 BRACKET (DESIGN II)BRACKET (DESIGN II)
-
310-38837 SCREW (1-1/8") (DESIGN II)SCREW (1-1/8") (DESIGN II)
-
4A12-57792 WASHER (DESIGN II)WASHER (DESIGN II)
-
5A23-34948 SPACER (DESIGN II)SPACER (DESIGN II)
-
684-86322A24 CABLE (DESIGN II)CABLE (DESIGN II)
-
710-92051 SCREW (3/4") (DESIGN II)SCREW (3/4") (DESIGN II)
