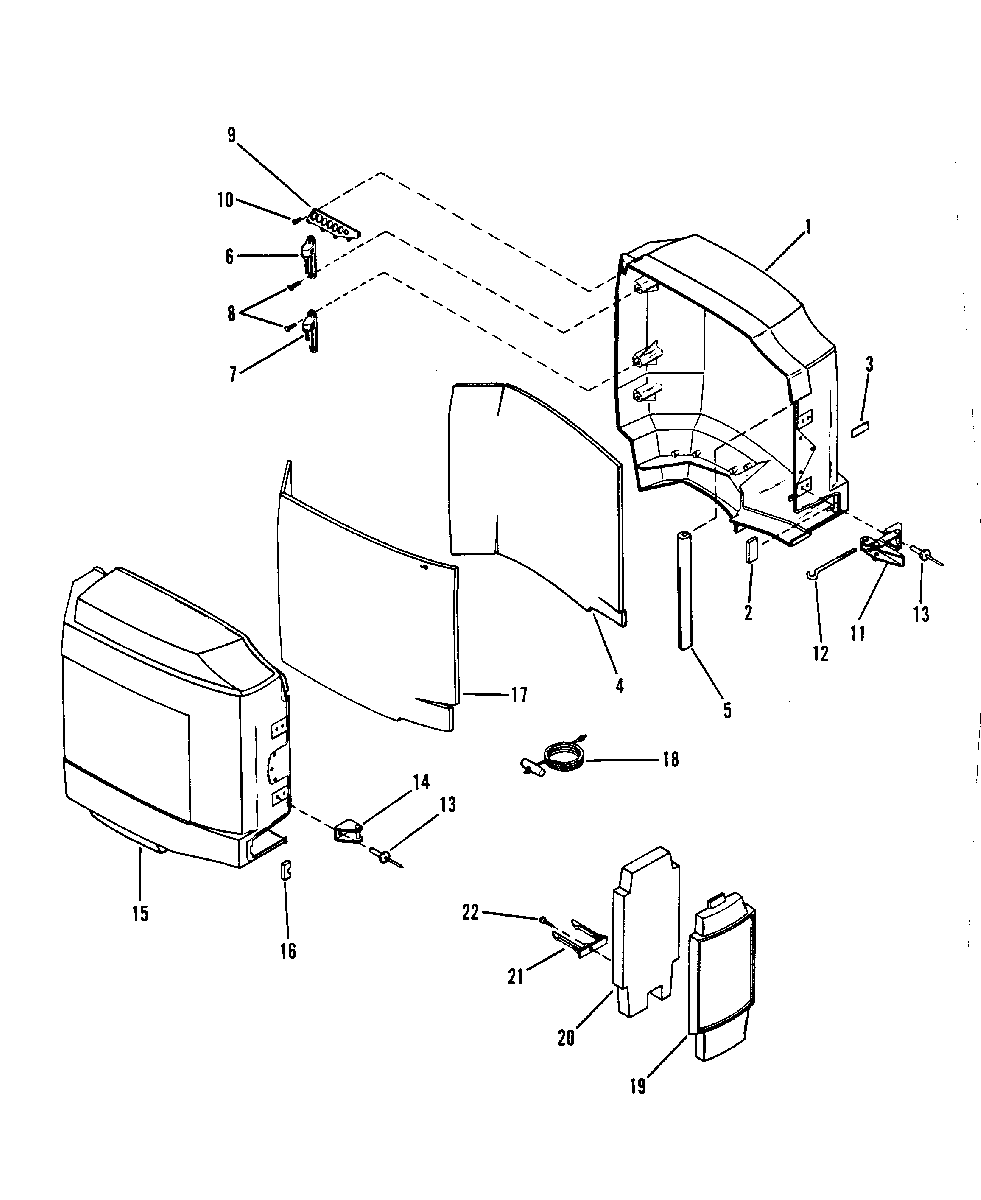

COWLS AND FRONT COVER для Mariner - 250/275 0C101891 AND UP

  • №
    Артикул
    Название
  • 1
    2179-7606A3 COWL ASSEMBLY (PORT) (BLACK)
    COWL ASSEMBLY (PORT) (BLACK)
  • 1
    2179-7606A7 COWL ASSEMBLY (PORT) (GRAY)
    COWL ASSEMBLY (PORT) (GRAY)
  • 1
    2179-7606A8 COWL ASSEMBLY (PORT) (SILVER)
    COWL ASSEMBLY (PORT) (SILVER)
  • 2
    88354 SEAL
    SEAL
  • 3
    67258 PAD
    PAD
  • 4
    91837 SOUND BLANKET
    SOUND BLANKET
  • 5
    150882 COWL SEAL
    COWL SEAL
  • 6
    88351 BRACKET-UPPER
    BRACKET-UPPER
  • 7
    88350 BRACKET-LOWER
    BRACKET-LOWER
  • 8
    10-4000355 SCREW
    SCREW
  • 9
    88477 SHIELD
    SHIELD
  • 10
    10-48409 SCREW
    SCREW
  • 11
    16859A2 COWL LATCH
    COWL LATCH
  • 12
    30413 HOOK
    HOOK
  • 13
    17-98026 RIVET
    RIVET
  • 14
    15417A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 15
    2180-7607A2 COWL ASSEMBLY (STARBOARD) (BLACK)
    COWL ASSEMBLY (STARBOARD) (BLACK)
  • 15
    2180-7607A3 COWL ASSEMBLY (STARBOARD) (GRAY)
    COWL ASSEMBLY (STARBOARD) (GRAY)
  • 15
    2180-7607A4 COWL ASSEMBLY (STARBOARD) (SILVER)
    COWL ASSEMBLY (STARBOARD) (SILVER)
  • 16
    88359 SEAL
    SEAL
  • 17
    92015 SOUND BLANKET
    SOUND BLANKET
  • 18
    47341A11 STARTER ROPE (FOR MANUAL STARTING)
    STARTER ROPE (FOR MANUAL STARTING)
  • 19
    2181-7613A5 FRONT COVER ASSEMBLY (BLACK)
    FRONT COVER ASSEMBLY (BLACK)
  • 19
    2181-7613A6 FRONT COVER ASSEMBLY (GRAY)
    FRONT COVER ASSEMBLY (GRAY)
  • 20
    164581 SOUND BLANKET
    SOUND BLANKET
  • 21
    61158T HOOK
    HOOK
  • 22
    10-75162 SCREW
    SCREW
  • 19
    2181-7613A7 FRONT COVER ASSEMBLY (SILVER)
    FRONT COVER ASSEMBLY (SILVER)
