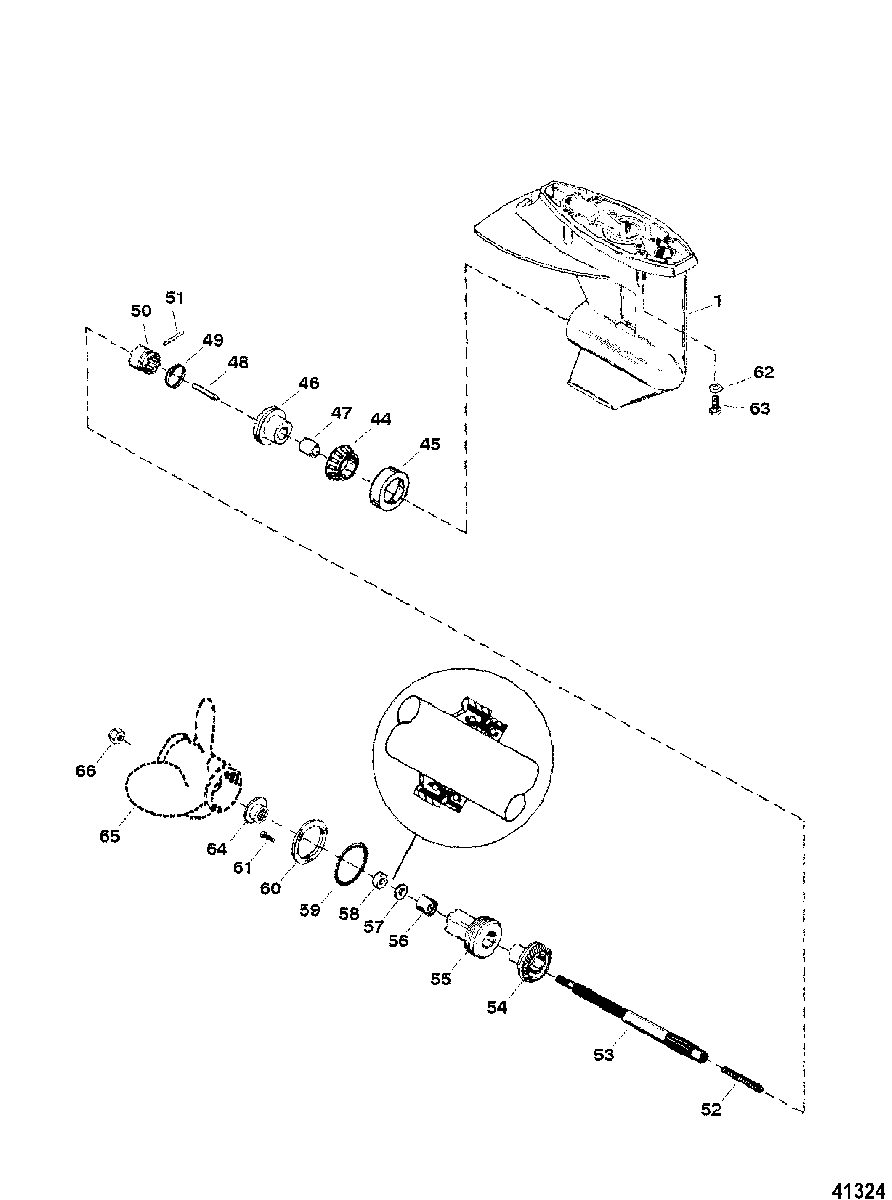

GEAR HOUSING ASSEMBLY(PROPELLER SHAFT) для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999

  • №
    Артикул
    Название
  • 1
    1665-8669A35 GEAR HOUSING ASSEMBLY
    (15 IN. SHORT) (COMPLETE) (MERCURY)
    GEAR HOUSING ASSEMBLY
    (15 IN. SHORT) (COMPLETE) (MERCURY)
  • 1
    1665-8669A36 GEAR HOUSING ASSEMBLY
    (15 IN. SHORT) (COMPLETE) (MARINER)
    GEAR HOUSING ASSEMBLY
    (15 IN. SHORT) (COMPLETE) (MARINER)
  • 1
    1665-8669A37 GEAR HOUSING ASSEMBLY
    (20 IN. LONG) (COMPLETE) (MERCURY)
    GEAR HOUSING ASSEMBLY
    (20 IN. LONG) (COMPLETE) (MERCURY)
  • 1
    1665-8669A38 GEAR HOUSING ASSEMBLY
    (20 IN. LONG) (COMPLETE) (MARINER)
    GEAR HOUSING ASSEMBLY
    (20 IN. LONG) (COMPLETE) (MARINER)
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Black
    GEAR HOUSING ASSEMBLY, Basic-Black
  • 1
    1600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Gray
    GEAR HOUSING ASSEMBLY, Basic-Gray
  • 44
    31-8M0103470 BEARING ASSEMBLY, Roller (CONE & CUP)
    BEARING ASSEMBLY, Roller (CONE & CUP)
  • 45
    NSS NOT SOLD SEPARATE, CUP
    NOT SOLD SEPARATE, CUP
  • 46
    43-44213T1 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 47
    23-85557 BUSHING
    BUSHING
  • 48
    85094 FOLLOWER, Cam
    FOLLOWER, Cam
  • 49
    24-38114 SPRING
    SPRING
  • 50
    52-41040T1 CLUTCH
    CLUTCH
  • 51
    17-8M0020999 PIN
    PIN
  • 52
    24-88680 SPRING
    SPRING
  • 53
    44-8166231 PROPELLER SHAFT
    PROPELLER SHAFT
  • 54
    43-99542T GEAR, Reverse
    GEAR, Reverse
  • 55
    99906T1 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 56
    31-21739 BEARING, Roller
    BEARING, Roller
  • 57
    26-41132 SEAL, Oil (INNER)
    SEAL, Oil (INNER)
  • 58
    26-41131 SEAL, Oil (OUTER)
    SEAL, Oil (OUTER)
  • 59
    25-85549 O-RING
    O-RING
  • 60
    87293 PLATE
    PLATE
  • 61
    10-90883 SCREW, (M5 x 16)
    SCREW, (M5 x 16)
  • 62
    12-856774 WASHER, (.406 x .750 x .104)
    WASHER, (.406 x .750 x .104)
  • 63
    10-65210 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 64
    851281 THRUST HUB ASSEMBLY
    THRUST HUB ASSEMBLY
  • 65
    48-19640A40 PROPELLER (ALUM-10.375 X 13.0 RH) (BLACK MAX)
    PROPELLER (ALUM-10.375 X 13.0 RH) (BLACK MAX)
  • 65
    48-19642A40 PROPELLER (ALUM-10.250 X 14.5 RH) (BLACK MAX)
    PROPELLER (ALUM-10.250 X 14.5 RH) (BLACK MAX)
  • 65
    48-19639A40 PROPELLER (ALUM-10.375 X 12.0 RH) (BLACK MAX)
    PROPELLER (ALUM-10.375 X 12.0 RH) (BLACK MAX)
  • 65
    48-19638A40 PROPELLER (ALUM-10.375 X 11.0 RH) (BLACK MAX)
    PROPELLER (ALUM-10.375 X 11.0 RH) (BLACK MAX)
  • 65
    48-19636A10 PROPELLER (ALUM-10.375 X 9.50 RH) (BLACK MAX)
    PROPELLER (ALUM-10.375 X 9.50 RH) (BLACK MAX)
  • 65
    48-43592A61 PROPELLER (SS-10.375 X 18.0 RH) (CHOPPER)
    PROPELLER (SS-10.375 X 18.0 RH) (CHOPPER)
  • 65
    48-19644A5 PROPELLER (SS-10.375 X 13.0 RH) (VENGEANCE)
    PROPELLER (SS-10.375 X 13.0 RH) (VENGEANCE)
  • 66
    11-4011912 PROP NUT (M12 BRASS)-FOR SS PROPELLERS
    PROP NUT (M12 BRASS)-FOR SS PROPELLERS
  • 66
    11-88228 PROP NUT (M12 NYLON)-FOR ALUM PROPELLERS
    PROP NUT (M12 NYLON)-FOR ALUM PROPELLERS
  • -
    26-85090A2 SEAL KIT
    SEAL KIT
