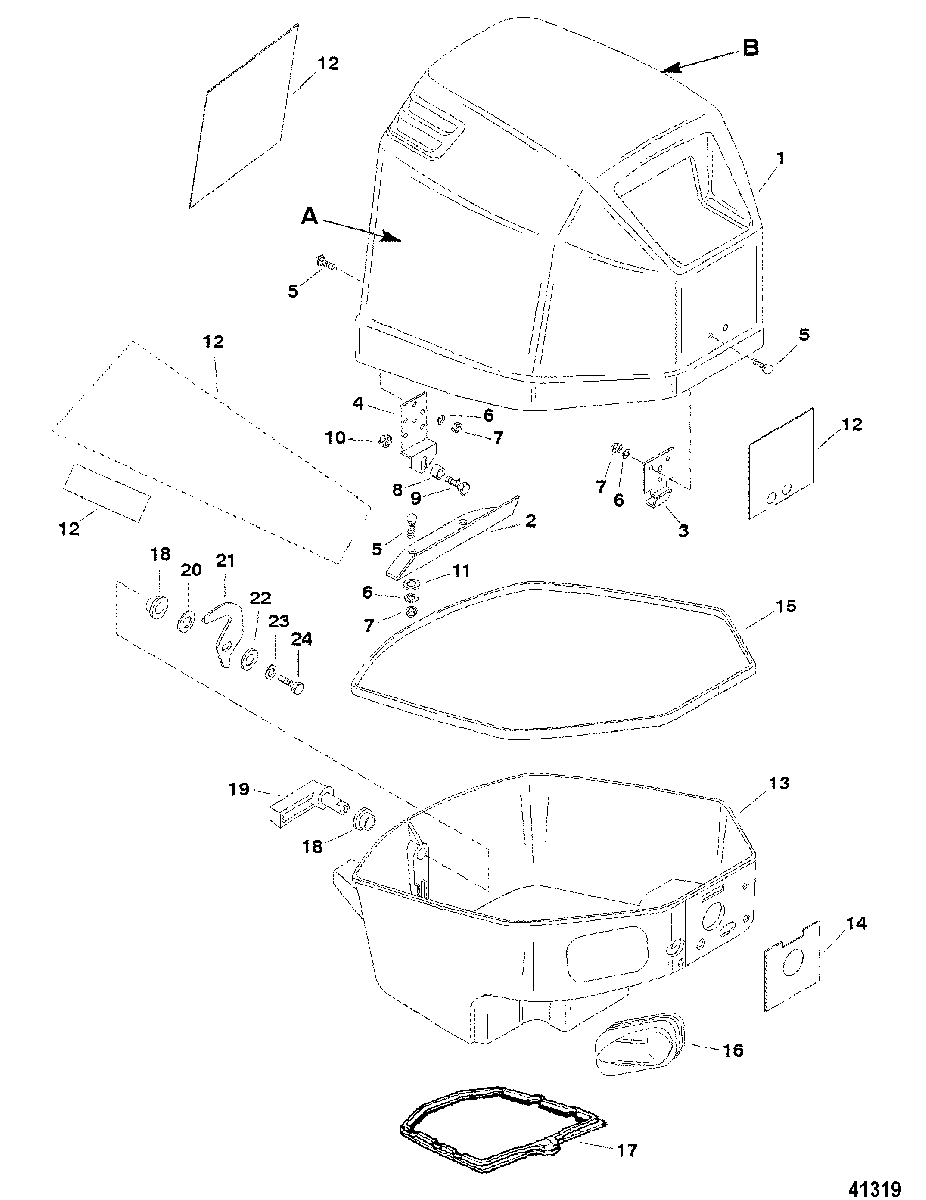

COWL ASSEMBLY, TOP AND BOTTOM для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999

  • №
    Артикул
    Название
  • 1
    100-819135A5 TOP COWL ASSEMBLY
    (WITHOUT DECALS) (MERCURY)
    TOP COWL ASSEMBLY
    (WITHOUT DECALS) (MERCURY)
  • 1
    100-819135A6 TOP COWL ASSEMBLY
    (WITHOUT DECALS) (MARINER)
    TOP COWL ASSEMBLY
    (WITHOUT DECALS) (MARINER)
  • 2
    819447 BAFFLE
    BAFFLE
  • 3
    819130 BRACKET, Front
    BRACKET, Front
  • 4
    819371 RETAINER, Rear Cowl
    RETAINER, Rear Cowl
  • 5
    10-835499 SCREW (#8-32 X .440)
    SCREW (#8-32 X .440)
  • 6
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 7
    11-850042 NUT (#8-32)
    NUT (#8-32)
  • 8
    23-F681759 ROLLER, Latch
    ROLLER, Latch
  • 9
    10-F681026 SCREW (SPECIAL)-LATCH ROLLER
    SCREW (SPECIAL)-LATCH ROLLER
  • 10
    11-814101 NUT, (.250-20) Stainless Steel
    NUT, (.250-20) Stainless Steel
  • 11
    12-F8155 WASHER
    WASHER
  • 12
    37-854206A1 DECAL SET, Top Cowl
    (MERCURY) (FRONT-REAR-PORT-STBD)
    DECAL SET, Top Cowl
    (MERCURY) (FRONT-REAR-PORT-STBD)
  • 12
    37-854207A1 DECAL SET, Top Cowl
    (MARINER) (FRONT-REAR-PORT-STBD)
    DECAL SET, Top Cowl
    (MARINER) (FRONT-REAR-PORT-STBD)
  • 13
    100-819280A13 BOTTOM COWL ASSEMBLY
    (MERCURY)
    BOTTOM COWL ASSEMBLY
    (MERCURY)
  • 13
    100-819280A14 BOTTOM COWL ASSEMBLY
    (MARINER)
    BOTTOM COWL ASSEMBLY
    (MARINER)
  • 14
    38-819281 PLATE
    PLATE
  • 15
    F392756 SEAL, Top Of Bottom Cowl (4.075 FT. BULK) (CUT 3.783 FT.)
    SEAL, Top Of Bottom Cowl (4.075 FT. BULK) (CUT 3.783 FT.)
  • 16
    25-93527002 GROMMET, Control Cable
    GROMMET, Control Cable
  • 17
    827895 SEAL, Bottom Cowl
    SEAL, Bottom Cowl
  • 18
    23-812707 BUSHING
    BUSHING
  • 19
    854004A1 HANDLE ASSEMBLY, Cowl Latch
    (MERCURY)
    HANDLE ASSEMBLY, Cowl Latch
    (MERCURY)
  • 19
    854004A2 HANDLE ASSEMBLY, Cowl Latch
    (MARINER)
    HANDLE ASSEMBLY, Cowl Latch
    (MARINER)
  • 20
    13-F2047 WASHER, Wave
    WASHER, Wave
  • 21
    8M0001081 CAM, Latch Shaft
    CAM, Latch Shaft
  • 22
    12-71055 WASHER
    WASHER
  • 23
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 24
    10-28635 SCREW, (.250-20 x .620) Stainless Steel (.250-20 X .625)
    SCREW, (.250-20 x .620) Stainless Steel (.250-20 X .625)
