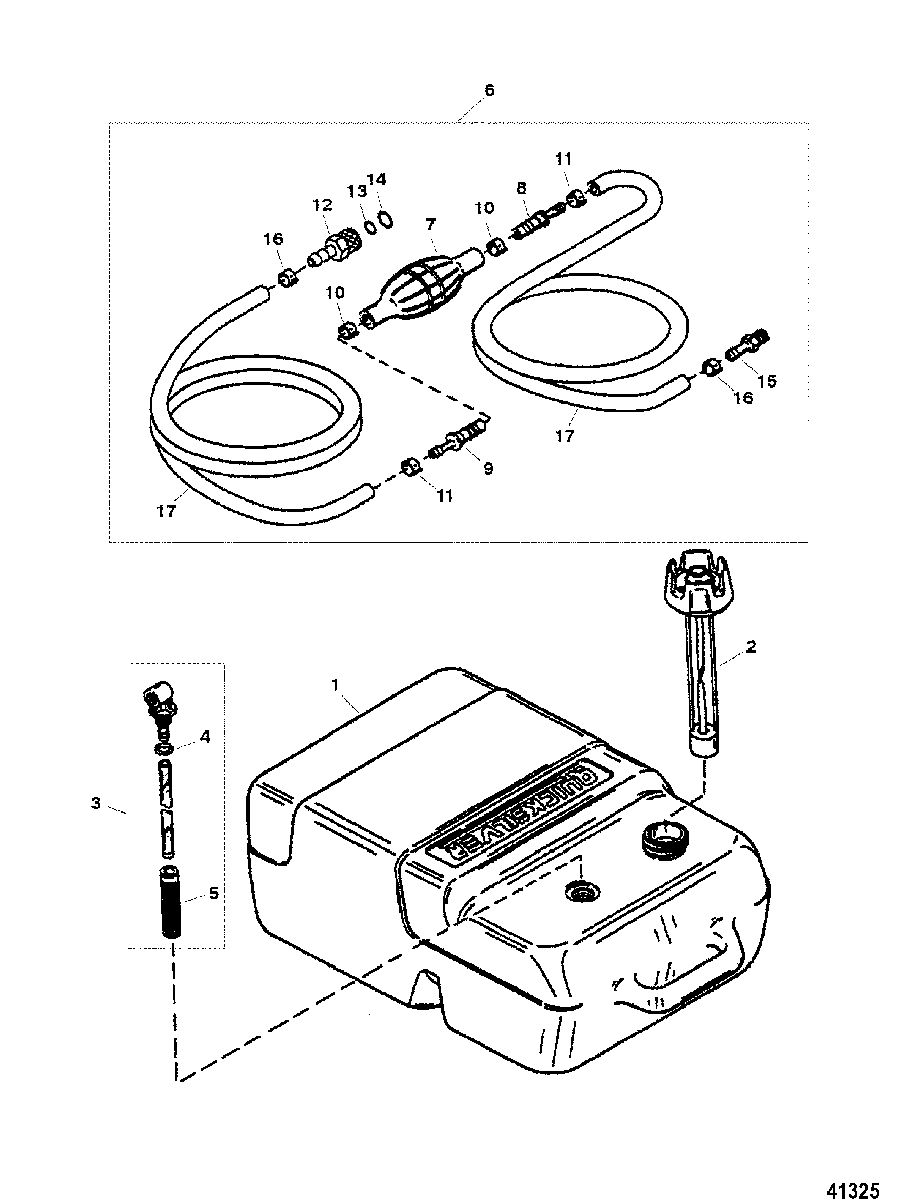

FUEL TANK & LINE ASSEMBLY(6.6 GALLON) для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999

  • №
    Артикул
    Название
  • 1
    1259-823504A3 TANK ASSEMBLY, Fuel (COMPLETE)
    TANK ASSEMBLY, Fuel (COMPLETE)
  • 1
    1259-859063A1 TANK ASSEMBLY, Fuel - Plastic 6.6 Gallon
    TANK ASSEMBLY, Fuel - Plastic 6.6 Gallon
  • 2
    823536 GAUGE/CAP ASSEMBLY
    GAUGE/CAP ASSEMBLY
  • 3
    22-823532A1 CONNECTOR ASSEMBLY
    CONNECTOR ASSEMBLY
  • 4
    25-823533 O-RING
    O-RING
  • 5
    35-823534 SCREEN
    SCREEN
  • 6
    32-8M0044844 LINE ASSEMBLY, Fuel (.312 I.D.) (8.00 FT.) (30.00 IN. & 60.00 IN.)
    LINE ASSEMBLY, Fuel (.312 I.D.) (8.00 FT.) (30.00 IN. & 60.00 IN.)
  • 7
    13330Q07 BULB ASSEMBLY, Primer
    BULB ASSEMBLY, Primer
  • 8
    21-13331A3 CHECK VALVE ASSEMBLY (INLET)
    CHECK VALVE ASSEMBLY (INLET)
  • 9
    21-13331A4 CHECK VALVE ASSEMBLY (OUTLET)
    CHECK VALVE ASSEMBLY (OUTLET)
  • 10
    54-4158210 CLAMP, Nylon (LARGE)
    CLAMP, Nylon (LARGE)
  • 11
    54-41582Q7 CLAMP, Nylon (SMALL)
    CLAMP, Nylon (SMALL)
  • 12
    F197787Q3 COUPLER, Fuel
    COUPLER, Fuel
  • 13
    F17815 SEAL (SMALL)
    SEAL (SMALL)
  • 14
    F17816 SEAL (LARGE)
    SEAL (LARGE)
  • 15
    22-89771Q2 CONNECTOR, (.250-18)
    CONNECTOR, (.250-18)
  • 16
    54-41582Q7 CLAMP, Nylon (SMALL)
    CLAMP, Nylon (SMALL)
  • 17
    32-8M0038468 HOSE, (9.00 Feet Bulk), CUT AS REQ'D
    HOSE, (9.00 Feet Bulk), CUT AS REQ'D
  • 17
    32-8M0038500 HOSE, (100.00 Feet Bulk), CUT AS REQ'D
    HOSE, (100.00 Feet Bulk), CUT AS REQ'D
