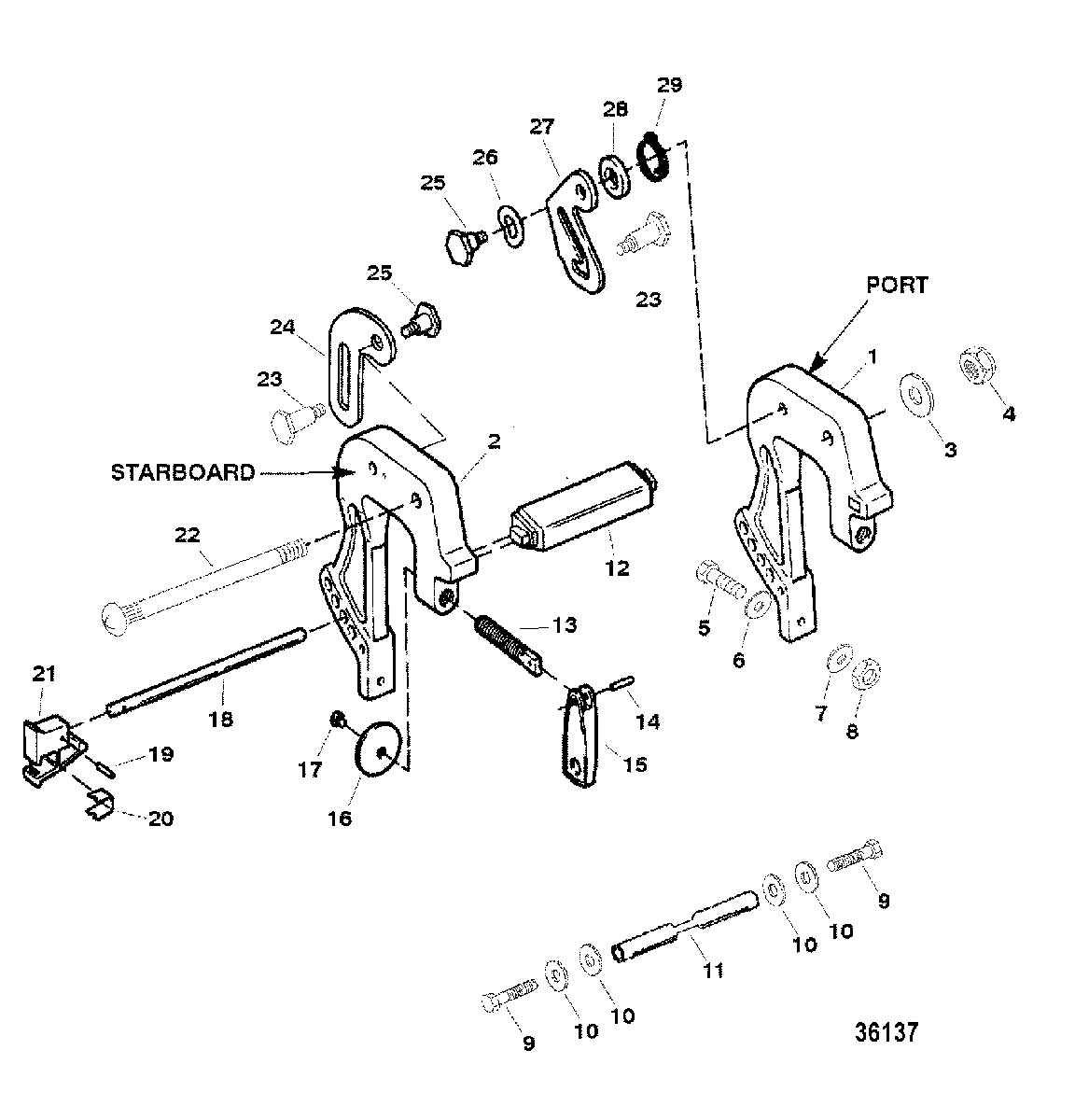

CLAMP BRACKETS для Mariner - 25 H.P. LIGHTNING (3 CYL.) (INTL. ONLY) 0E268781 THRU 0E287999

  • №
    Артикул
    Название
  • 1
    1400-850073T2 BRACKET, Stern (PORT)
    (MERCURY)
    BRACKET, Stern (PORT)
    (MERCURY)
  • 1
    1400-850073T4 BRACKET, Stern (PORT)
    (MARINER)
    BRACKET, Stern (PORT)
    (MARINER)
  • 2
    1400-850073T3 BRACKET, Stern (STARBOARD)
    (MERCURY)
    BRACKET, Stern (STARBOARD)
    (MERCURY)
  • 2
    1400-850073T5 BRACKET, Stern (STARBOARD)
    (MARINER)
    BRACKET, Stern (STARBOARD)
    (MARINER)
  • 3
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 4
    11-F7026 NUT, (.375-16) (.375-16)
    NUT, (.375-16) (.375-16)
  • 5
    10-832820 SCREW (.250-20 X 3.00)-MOUNTING
    SCREW (.250-20 X 3.00)-MOUNTING
  • 6
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel (THIN)-MOUNTING
    WASHER, (.281 x .500 x .060) Stainless Steel (THIN)-MOUNTING
  • 7
    12-67983 WASHER
    WASHER
  • 8
    11-8267118 NUT, (.250-20), MOUNTING
    NUT, (.250-20), MOUNTING
  • 9
    10-4000332 SCREW, (M6 x 35)
    SCREW, (M6 x 35)
  • 10
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 11
    23-852963 SPACER
    SPACER
  • 12
    830564 HANDLE, Carrying
    HANDLE, Carrying
  • 13
    10-826248 SCREW, Stern Bracket
    SCREW, Stern Bracket
  • 14
    17-24198 PIN, Roll
    PIN, Roll
  • 15
    F424075T1 HANDLE, Clamp Screw
    (MERCURY)
    HANDLE, Clamp Screw
    (MERCURY)
  • 15
    F424075T2 HANDLE, Clamp Screw
    (MARINER)
    HANDLE, Clamp Screw
    (MARINER)
  • 16
    F24074 FOOT, Stern Bracket Screw
    FOOT, Stern Bracket Screw
  • 17
    10-69022 SCREW, (#10-32 x .500) Stainless Steel
    SCREW, (#10-32 x .500) Stainless Steel
  • 18
    851924A2 PIN ASSEMBLY, Tilt - Stern Bracket
    PIN ASSEMBLY, Tilt - Stern Bracket
  • 19
    17-38489 PIN, Roll
    PIN, Roll
  • 20
    24-F286461 SPRING
    SPRING
  • 21
    851929 HANDLE, Lock Bar
    HANDLE, Lock Bar
  • 22
    850185 BOLT, Pivot - Stern Bracket (.375-16 X 7.375)
    BOLT, Pivot - Stern Bracket (.375-16 X 7.375)
  • 23
    17-819707 PIN, Tilt Lock (.250-20)
    PIN, Tilt Lock (.250-20)
  • 24
    826251 LEVER, Tilt Lock
    LEVER, Tilt Lock
  • 25
    10-F286422-1 SCREW, (.312-18 Special) (.312-18)
    SCREW, (.312-18 Special) (.312-18)
  • 26
    13-69150 WAVE WASHER
    WAVE WASHER
  • 27
    F429541 LOCK, Tilt
    LOCK, Tilt
  • 28
    23-819226 SPACER, Tilt Lock
    SPACER, Tilt Lock
  • 29
    24-F286544-1 SPRING, Tilt Lock
    SPRING, Tilt Lock
