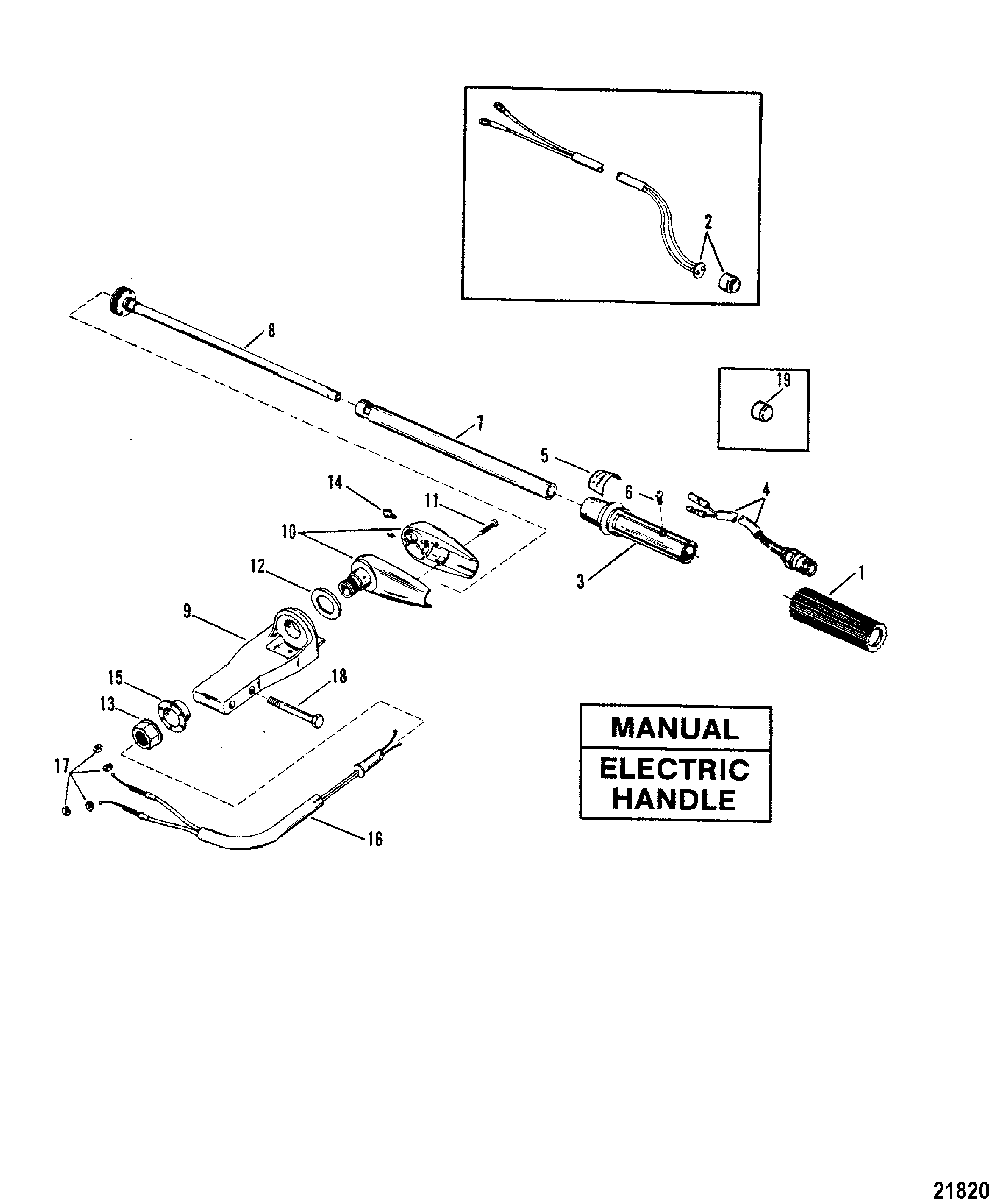

Steering Handle Assembly(Manual/Electric Handle) для Mariner - 25, 25 MARATHON, SUPER 15 (2 CYL.) 0B238464 THRU 0G044026

  • №
    Артикул
    Название
  • 1
    99589003 GRIP
    GRIP
  • 2
    NLA No Longer Available, Stop Switch
    (Design I - Order Kit 87-823609A10 - Reference 3)
    No Longer Available, Stop Switch
    (Design I - Order Kit 87-823609A10 - Reference 3)
  • 3
    87-823609A10 SWITCH KIT, Stop - Throttle Handle
    SWITCH KIT, Stop - Throttle Handle
  • 4
    87-8M0104615 SWITCH ASSEMBLY, Stop (DESIGN II -W/METAL LOCK RING)
    SWITCH ASSEMBLY, Stop (DESIGN II -W/METAL LOCK RING)
  • 5
    37-140121 DECAL (APPLY ON TUBE)
    DECAL (APPLY ON TUBE)
  • 5
    37-140122 DECAL (APPLY ON TUBE - 3.33 Inches x 1.25 Inches)(GRAY)
    DECAL (APPLY ON TUBE - 3.33 Inches x 1.25 Inches)(GRAY)
  • 5
    37-140123 DECAL (APPLY ON TUBE - 3.15 x 2.50 Inches)(GRAY)
    DECAL (APPLY ON TUBE - 3.15 x 2.50 Inches)(GRAY)
  • 5
    37-140124 DECAL (INTERNATIONAL SYMBOLS)
    DECAL (INTERNATIONAL SYMBOLS)
  • 6
    10-37342 SCREW, (#12-14 x .375)
    SCREW, (#12-14 x .375)
  • 7
    99333A2 TUBE ASSEMBLY
    TUBE ASSEMBLY
  • 8
    975501 TUBE ASSEMBLY
    TUBE ASSEMBLY
  • 9
    43447A3 BRACKET ASSEMBLY (BLACK)
    (Reference 13 is 1 Inch -14)
    BRACKET ASSEMBLY (BLACK)
    (Reference 13 is 1 Inch -14)
  • 9
    43447A3 BRACKET ASSEMBLY (GRAY)
    (Reference 13 is 1 Inch -14)
    BRACKET ASSEMBLY (GRAY)
    (Reference 13 is 1 Inch -14)
  • 10
    NLA No Longer Available, Bracket (BLACK) (Order 43447A3)
    (Reference 13 is 1 Inch -14)
    No Longer Available, Bracket (BLACK) (Order 43447A3)
    (Reference 13 is 1 Inch -14)
  • 10
    NLA No Longer Available, Bracket (GRAY) (Order 43447A4)
    (Reference 13 is 1 Inch -14)
    No Longer Available, Bracket (GRAY) (Order 43447A4)
    (Reference 13 is 1 Inch -14)
  • 11
    10-4005688 SCREW, (M4 x 20)
    (Reference 13 is 1 Inch -14)
    SCREW, (M4 x 20)
    (Reference 13 is 1 Inch -14)
  • 11
    10-40019109 SCREW, (M5 x 25)
    (Reference 13 is 1 Inch -14)
    SCREW, (M5 x 25)
    (Reference 13 is 1 Inch -14)
  • 12
    12-177821 WASHER, 14
    WASHER, 14
  • 13
    11-82671327 NUT (Black)
    (Reference 13 is 1 Inch -14)
    NUT (Black)
    (Reference 13 is 1 Inch -14)
  • 13
    11-82671327 NUT, (1.00-14) (Gray)
    (Reference 13 is 1 Inch -14)
    NUT, (1.00-14) (Gray)
    (Reference 13 is 1 Inch -14)
  • 14
    22-74036 FITTING, Grease
    (Reference 13 is 1 Inch -14)
    FITTING, Grease
    (Reference 13 is 1 Inch -14)
  • 15
    23-85973 BUSHING
    BUSHING
  • 9
    43447A3 BRACKET ASSEMBLY, Steering (Black)
    (Reference 13 is 1.125 Inch -12)
    BRACKET ASSEMBLY, Steering (Black)
    (Reference 13 is 1.125 Inch -12)
  • 9
    43447A3 BRACKET ASSEMBLY, Steering (Gray)
    (Reference 13 is 1.125 Inch -12)
    BRACKET ASSEMBLY, Steering (Gray)
    (Reference 13 is 1.125 Inch -12)
  • 9
    43447A5 BRACKET ASSEMBLY, Steering (Tracker)
    (Reference 13 is 1.125 Inch -12)
    BRACKET ASSEMBLY, Steering (Tracker)
    (Reference 13 is 1.125 Inch -12)
  • 10
    44397A15 BRACKET ASSEMBLY (BLACK)
    (Reference 13 is 1.125 Inch -12)
    BRACKET ASSEMBLY (BLACK)
    (Reference 13 is 1.125 Inch -12)
  • 10
    44397A16 BRACKET ASSEMBLY (GRAY)
    (Reference 13 is 1.125 Inch -12)
    BRACKET ASSEMBLY (GRAY)
    (Reference 13 is 1.125 Inch -12)
  • 10
    44397A22 BRACKET ASSEMBLY (TRACKER)
    (Reference 13 is 1.125 Inch -12)
    BRACKET ASSEMBLY (TRACKER)
    (Reference 13 is 1.125 Inch -12)
  • 11
    10-40011110 SCREW, (M5 x 30) Stainless Steel
    (Reference 13 is 1.125 Inch -12)
    SCREW, (M5 x 30) Stainless Steel
    (Reference 13 is 1.125 Inch -12)
  • 12
    12-177821 WASHER
    (Reference 13 is 1.125 Inch -12)
    WASHER
    (Reference 13 is 1.125 Inch -12)
  • 13
    11-816880 NUT
    (Reference 13 is 1.125 Inch -12)
    NUT
    (Reference 13 is 1.125 Inch -12)
  • 14
    22-74036 FITTING, Grease
    (Reference 13 is 1.125 Inch -12)
    FITTING, Grease
    (Reference 13 is 1.125 Inch -12)
  • 15
    23-817026 BUSHING
    (Reference 13 is 1.125 Inch -12)
    BUSHING
    (Reference 13 is 1.125 Inch -12)
  • 16
    432421 CABLE, Throttle (TILLER HANDLE SHIFT)
    CABLE, Throttle (TILLER HANDLE SHIFT)
  • 16
    432422 CABLE ASSEMBLY, Throttle (SIDE SHIFT)
    CABLE ASSEMBLY, Throttle (SIDE SHIFT)
  • 17
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 18
    10-4000384 SCREW, (M10 x 80)
    SCREW, (M10 x 80)
  • 19
    817634 PLUG (SEA PRO/MARATHON 25/SUPER 15)
    PLUG (SEA PRO/MARATHON 25/SUPER 15)
