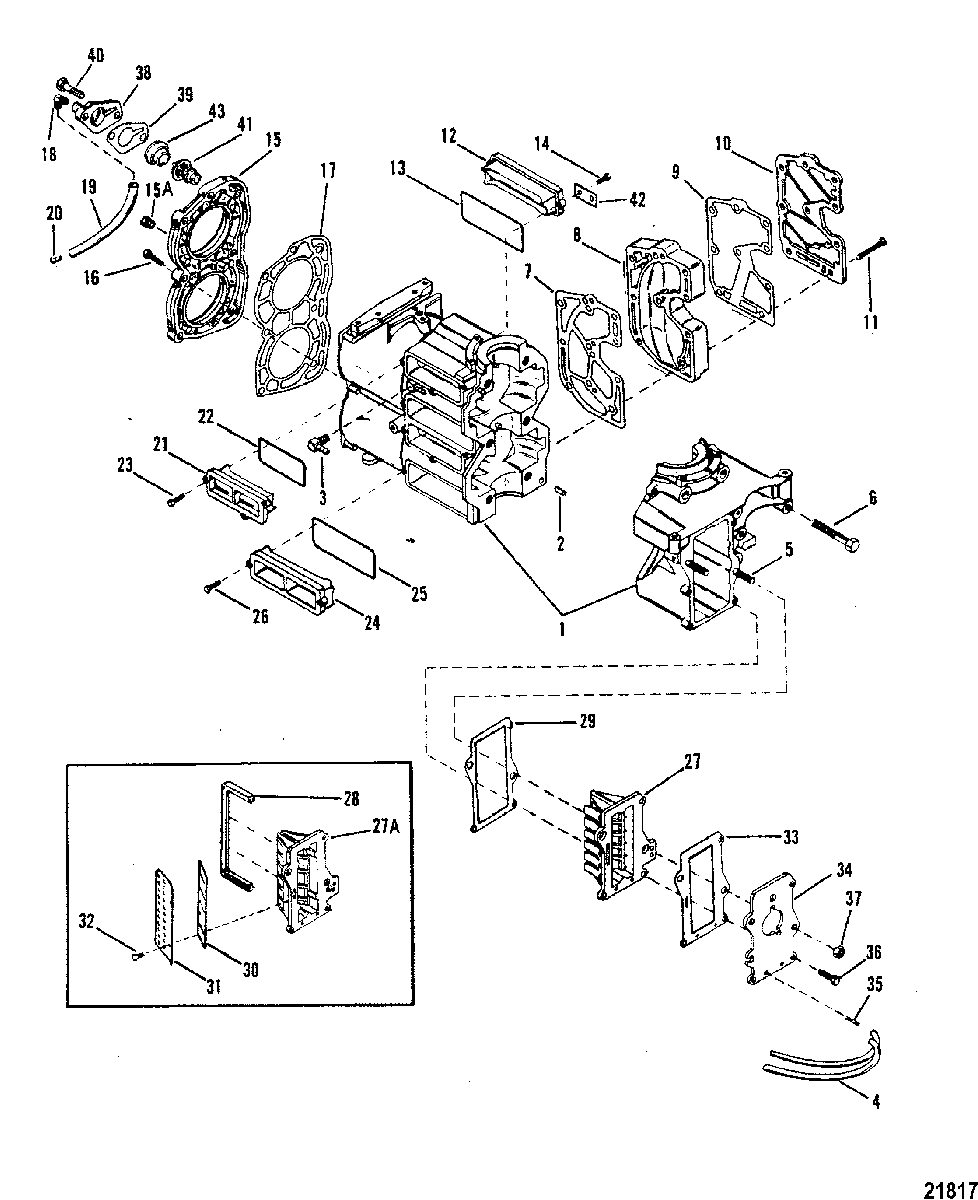

Cylinder Block and Covers для Mariner - 25, 25 MARATHON, SUPER 15 (2 CYL.) 0B238464 THRU 0G044026
-
№АртикулНазвание
-
1872-9533T38 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
1NSS NOT SOLD SEPARATE, Cylinder Block
Order Complete Powerhead 822261A92) SN# 0D116956 THRU 0D117955NOT SOLD SEPARATE, Cylinder Block
Order Complete Powerhead 822261A92) SN# 0D116956 THRU 0D117955 -
217-85171 PIN, DowelPIN, Dowel
-
322-15133 FITTING (45 Degree)FITTING (45 Degree)
-
432-99130100 HOSE (Cut to 12.25 Inches)HOSE (Cut to 12.25 Inches)
-
516-429173 STUDSTUD
-
610-40001209 SCREW, (M10 x 60)SCREW, (M10 x 60)
-
727-892158 GASKETGASKET
-
892329F03 MANIFOLD, ExhaustMANIFOLD, Exhaust
-
927-892157 GASKETGASKET
-
10923301 COVERCOVER
-
1110-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
12144071 COVERCOVER
-
1325-822370 O-RINGO-RING
-
1410-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
151028-8282A1 COVER ASSEMBLYCOVER ASSEMBLY
-
1610-4000331 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
1727-863895 GASKETGASKET
-
1822-996642 ELBOWELBOW
-
1932-8M0108355 LINE, (57.00 Inches Bulk), TELL TALE (Cut to 8 Inches)LINE, (57.00 Inches Bulk), TELL TALE (Cut to 8 Inches)
-
2022-94848 FITTINGFITTING
-
2114406 COVERCOVER
-
2225-86391 O-RINGO-RING
-
2310-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
2414408 COVERCOVER
-
2525-822370 O-RING, (2.362 x .103)O-RING, (2.362 x .103)
-
2610-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
2714112T REED BLOCK (DESIGN II)REED BLOCK (DESIGN II)
-
27A14112T REED BLOCK (DESIGN I)REED BLOCK (DESIGN I)
-
2885977002 SEAL (DESIGN I REED BLOCK)SEAL (DESIGN I REED BLOCK)
-
2927-414172 GASKETGASKET
-
3034-816806 REED, Design I Reed BlockREED, Design I Reed Block
-
3134-897931 STOP, Reed, Design I Reed BlockSTOP, Reed, Design I Reed Block
-
3210-4005785 SCREW, (M4 x 10) (Design I Reed Block)SCREW, (M4 x 10) (Design I Reed Block)
-
3327-414181 GASKETGASKET
-
3441420A3 PLATEPLATE
-
3522-56759 FITTING, BarbedFITTING, Barbed
-
3610-40019108 SCREW, (M5 x 20)SCREW, (M5 x 20)
-
3711-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
38143171 COVERCOVER
-
3927-14318005 GASKETGASKET
-
4010-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
4114586 THERMOSTATTHERMOSTAT
-
4254-12627 STRAPSTRAP
-
4327-62386001 GASKETGASKET
-
-27-41499A88 GASKET SETGASKET SET
-
-879732T89 POWERHEAD ASSEMBLY
SN# 0D116956 THRU 0D117955POWERHEAD ASSEMBLY
SN# 0D116956 THRU 0D117955 -
-879732T89 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
