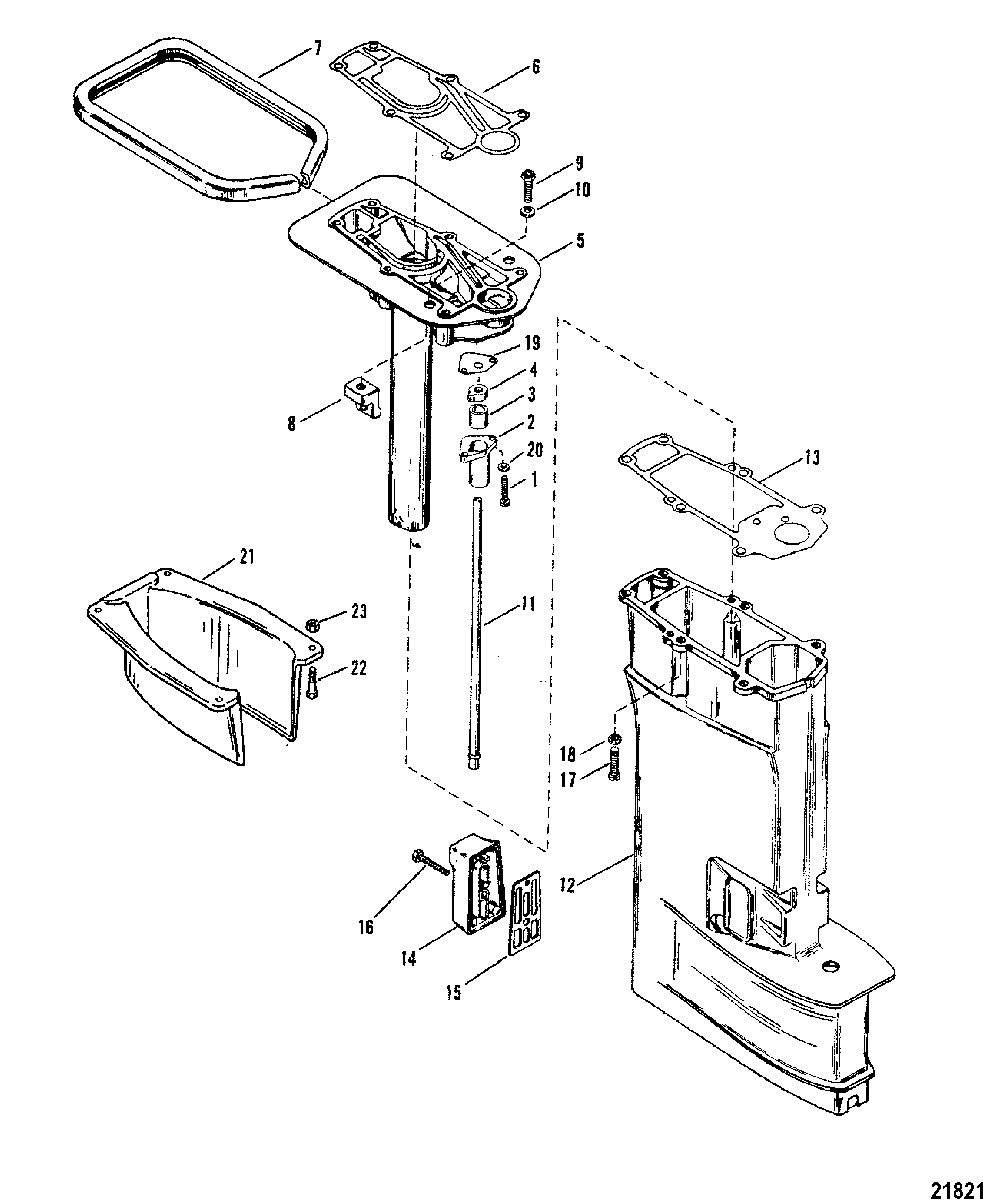

Driveshaft Housing Assembly для Mariner - 25, 25 MARATHON, SUPER 15 (2 CYL.) 0B238464 THRU 0G044026

  • №
    Артикул
    Название
  • 1
    10-400035 SCREW, (M5 x 16) (Use W/Reference #20)
    SCREW, (M5 x 16) (Use W/Reference #20)
  • 1
    10-40011107 SCREW, (M5 x 16) Stainless Steel
    SCREW, (M5 x 16) Stainless Steel
  • 2
    96248A1 HOUSING ASSEMBLY, WATER TUBE
    HOUSING ASSEMBLY, WATER TUBE
  • 3
    26-25329 SEAL, WATER TUBE
    SEAL, WATER TUBE
  • 4
    23-889715 SPACER, WATER TUBE
    SPACER, WATER TUBE
  • 5
    99702A7 ADAPTOR PLATE ASSEMBLY
    ADAPTOR PLATE ASSEMBLY
  • 6
    27-41670006 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • 7
    158662 SEAL, ADAPTOR PLATE
    SEAL, ADAPTOR PLATE
  • 8
    41211 BRACKET, UPPER MOUNT
    BRACKET, UPPER MOUNT
  • 9
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel (Use Without Reference #10)
    SCREW, (M6 x 20) Stainless Steel (Use Without Reference #10)
  • 9
    10-40007128 SCREW, (M6 x 20) (Use With Reference #10)
    SCREW, (M6 x 20) (Use With Reference #10)
  • 10
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE)
    WASHER, (.281 x .500 x .060) Stainless Steel (USE WHERE APPLICABLE)
  • 11
    32-85116 TUBE, Water (SHORT SHAFT)
    TUBE, Water (SHORT SHAFT)
  • 11
    32-86292 TUBE, Water (LONG SHAFT)
    TUBE, Water (LONG SHAFT)
  • 12
    1588-9097T5 HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT) (BLACK)
    HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT) (BLACK)
  • 12
    1588-9098T5 HOUSING ASSEMBLY, Driveshaft (LONG SHAFT) (BLACK)
    HOUSING ASSEMBLY, Driveshaft (LONG SHAFT) (BLACK)
  • 12
    1588-9097T6 HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT) (GRAY)
    HOUSING ASSEMBLY, Driveshaft (SHORT SHAFT) (GRAY)
  • 12
    1588-9098T5 HOUSING ASSEMBLY, Driveshaft (LONG SHAFT) (GRAY)
    HOUSING ASSEMBLY, Driveshaft (LONG SHAFT) (GRAY)
  • 12
    1588-9097A4 HOUSING ASSEMBLY, Driveshaft (SHORT) (TRACKER)
    HOUSING ASSEMBLY, Driveshaft (SHORT) (TRACKER)
  • 12
    1588-9098T5 HOUSING ASSEMBLY, Driveshaft (LONG) (TRACKER)
    HOUSING ASSEMBLY, Driveshaft (LONG) (TRACKER)
  • 13
    27-433374 GASKET, DRIVE SHAFT HOUSING
    GASKET, DRIVE SHAFT HOUSING
  • 14
    14534 COVER, IDLE RELIEF
    COVER, IDLE RELIEF
  • 15
    27-14621 GASKET, COVER
    GASKET, COVER
  • 16
    10-14742 SCREW, (.250-20 x 1.25), COVER
    SCREW, (.250-20 x 1.25), COVER
  • 17
    10-1993870 SCREW, DRIVE SHAFT HOUSING TO BLOCK (60 MM)
    SCREW, DRIVE SHAFT HOUSING TO BLOCK (60 MM)
  • 18
    12-4002317 WASHER, DRIVE SHAFT HOUSING SCREW
    WASHER, DRIVE SHAFT HOUSING SCREW
  • 19
    27-433374 GASKET (USE WHERE APPLICABLE)
    GASKET (USE WHERE APPLICABLE)
  • 20
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, HOUSING SCREW
    WASHER, (.192 x .375 x .0312) Stainless Steel, HOUSING SCREW
  • 21
    17258T TRIM COVER (BLACK)
    TRIM COVER (BLACK)
  • 21
    17258T TRIM COVER (GRAY)
    TRIM COVER (GRAY)
  • 21
    17258T TRIM COVER (TRACKER)
    TRIM COVER (TRACKER)
  • 22
    10-8M4503518 SCREW, (M6 x 20) Stainless Steel, TRIM COVER
    SCREW, (M6 x 20) Stainless Steel, TRIM COVER
  • 23
    11-401196 NUT, (M6), TRIM COVER SCREW
    NUT, (M6), TRIM COVER SCREW
  • -
    27-41499A88 GASKET SET
    GASKET SET
