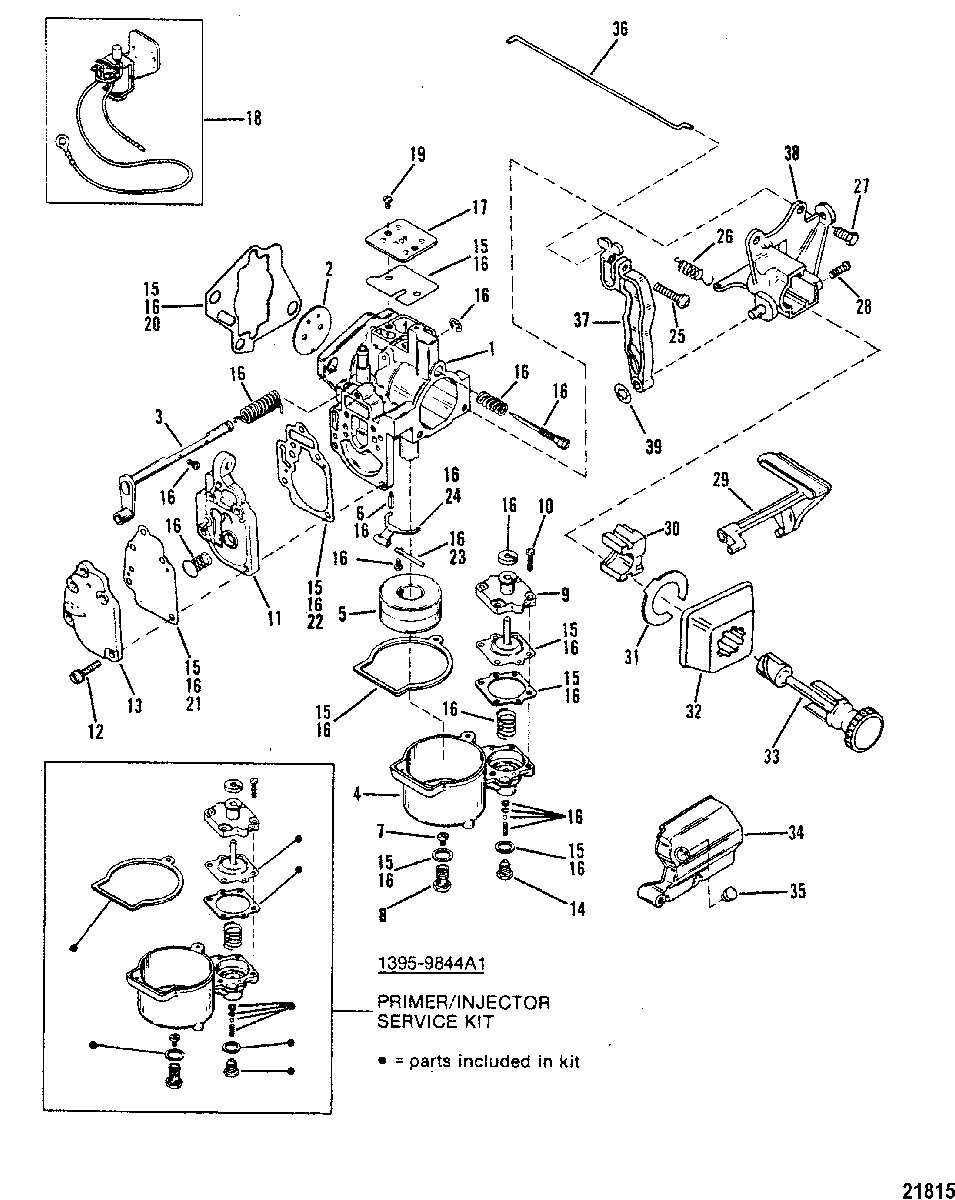

Carburetor(25) для Mariner - 25, 25 MARATHON, SUPER 15 (2 CYL.) 0B238464 THRU 0G044026

  • №
    Артикул
    Название
  • 1
    1390-8889T22 CARBURETOR (WMC-31A) (REPLACES WMC31/32A)
    CARBURETOR (WMC-31A) (REPLACES WMC31/32A)
  • 1
    1390-8889T22 CARBURETOR (WMC-32)
    CARBURETOR (WMC-32)
  • 2
    1395-9646 VALVE, Throttle
    VALVE, Throttle
  • 3
    1395-9695 SHAFT, Throttle
    SHAFT, Throttle
  • 4
    1395-9164 BOWL, Fuel
    BOWL, Fuel
  • 5
    1395-91691 FLOAT
    FLOAT
  • 6
    1395-803861 VALVE, INLET NEEDLE
    VALVE, INLET NEEDLE
  • 7
    1395-6201 JET, (.080), MAIN FUEL
    JET, (.080), MAIN FUEL
  • 8
    1395-9171 PLUG, JET RETAINER
    PLUG, JET RETAINER
  • 9
    813618 COVER, DIAPHRAGM (WMC 31/32)
    COVER, DIAPHRAGM (WMC 31/32)
  • 9
    1395-823648 COVER, Diaphragm, DIAPHRAGM (WMC 31 A/32A)
    COVER, Diaphragm, DIAPHRAGM (WMC 31 A/32A)
  • 10
    1395-9697 SCREW, DIAPHRAGM COVER
    SCREW, DIAPHRAGM COVER
  • 11
    1395-9702 BODY, FUEL PUMP
    BODY, FUEL PUMP
  • 12
    1395-9643 SCREW, FUEL PUMP COVER
    SCREW, FUEL PUMP COVER
  • 13
    1395-9637 COVER, FUEL PUMP
    COVER, FUEL PUMP
  • 14
    1395-9762 PLUG
    PLUG
  • 15
    1395-97611 GASKET/DIAPHRAGM KIT
    GASKET/DIAPHRAGM KIT
  • 16
    1395-8237072 REPAIR KIT (WMC 31/32)
    REPAIR KIT (WMC 31/32)
  • 16
    1395-8237072 REPAIR KIT (WMC 31A/32A)
    REPAIR KIT (WMC 31A/32A)
  • 17
    1395-9699 PLATE, COVER (MANUAL)
    PLATE, COVER (MANUAL)
  • 18
    1395-823433 CHOKE, Electric (ELECTRIC)
    CHOKE, Electric (ELECTRIC)
  • 19
    1395-9696 SCREW, COVER PLATE
    SCREW, COVER PLATE
  • 20
    27-192061 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 21
    1395-9635 DIAPHRAGM/GASKET
    DIAPHRAGM/GASKET
  • 22
    1395-9633 GASKET
    GASKET
  • 23
    F10064 SHAFT
    SHAFT
  • 24
    1395-824401 LEVER, Float
    LEVER, Float
  • 25
    10-12110 SCREW, (#6-32 x .750), FAST IDLE LEVER
    SCREW, (#6-32 x .750), FAST IDLE LEVER
  • 26
    24-11277 SPRING, Tension
    SPRING, Tension
  • 27
    10-40056110 SCREW, (M5 x 30), PRIMER BRACKET
    SCREW, (M5 x 30), PRIMER BRACKET
  • 27
    10-400018 SCREW, (M5 x 12), PRIMER BRACKET
    SCREW, (M5 x 12), PRIMER BRACKET
  • 28
    10-79965 SCREW, (#8-32 x .500) Stainless Steel, PRIMER BRACKET
    SCREW, (#8-32 x .500) Stainless Steel, PRIMER BRACKET
  • 29
    112731 LEVER, Primer, PRIMER
    LEVER, Primer, PRIMER
  • 30
    11280 CAM BLOCK
    CAM BLOCK
  • 31
    53-11278 CLIP, Retaining
    CLIP, Retaining
  • 32
    172291 BEZEL, Choke
    BEZEL, Choke
  • 33
    128022 KNOB, PRIMER
    KNOB, PRIMER
  • 34
    17442 COVER
    COVER
  • 35
    19-47579 PLUG
    PLUG
  • 36
    127332 IDLE WIRE
    IDLE WIRE
  • 37
    128053 LEVER, Fast Idle
    LEVER, Fast Idle
  • 38
    12803 BRACKET, Primer
    BRACKET, Primer
  • 39
    11-821979 PUSH NUT, FAST IDLE LEVER
    PUSH NUT, FAST IDLE LEVER
  • -
    27-41499A88 GASKET SET
    GASKET SET
  • -
    1395-9844A1 SERVICE KIT, Primer/Injector
    PARTS INCLUDED IN KIT ARE INDICATED BY A DOT ON THE ILLUSTRATION.
    SERVICE KIT, Primer/Injector
    PARTS INCLUDED IN KIT ARE INDICATED BY A DOT ON THE ILLUSTRATION.
  • -
    879732T89 POWERHEAD ASSEMBLY
    SN# 0D116956 THRU 0D117955
    POWERHEAD ASSEMBLY
    SN# 0D116956 THRU 0D117955
  • -
    879732T89 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
