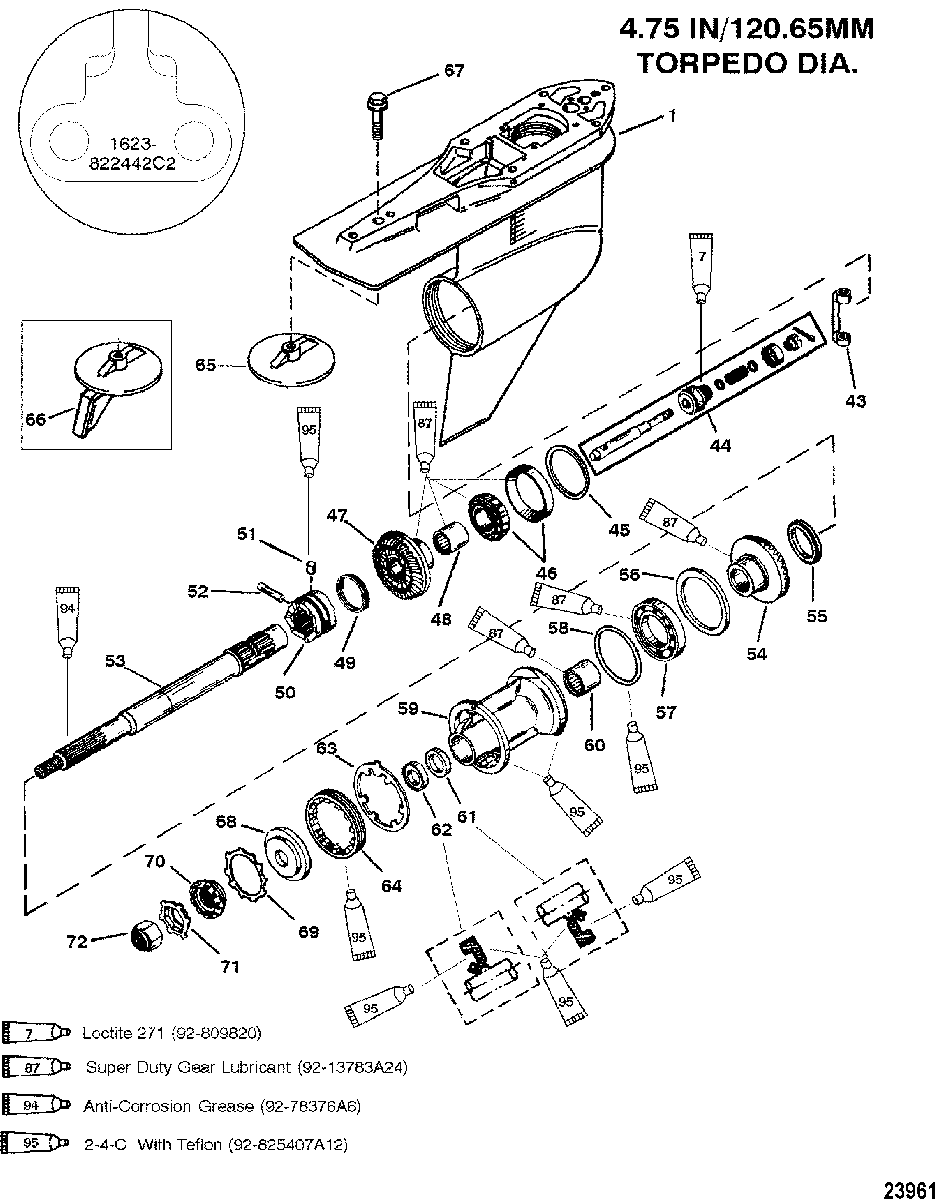

G./HSG(PROP-STD-S/N-0G437999 & BELOW-1623-822442C2 для Mariner - 225 MARATHON (3.0L CARB) 0G245605 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    1623-822442A25 GEAR HOUSING ASSEMBLY, Basic - Black
    GEAR HOUSING ASSEMBLY, Basic - Black
  • 1
    1623-822442A26 GEAR HOUSING ASSEMBLY, Basic - Gray
    GEAR HOUSING ASSEMBLY, Basic - Gray
  • 43
    823903 SHIFT CRANK
    SHIFT CRANK
  • 44
    818349T1 SPOOL KIT
    SPOOL KIT
  • 45
    15-47397A1 SHIM SET
    SHIM SET
  • 46
    31-35928T1 BEARING ASSEMBLY, Tapered Roller
    (USE WITH 1623-822442C2 CASTING)
    BEARING ASSEMBLY, Tapered Roller
    (USE WITH 1623-822442C2 CASTING)
  • 46
    31-828439A2 BEARING ASSEMBLY, Tapered Roller
    (USE WITH 1623-822442C3 CASTING)
    BEARING ASSEMBLY, Tapered Roller
    (USE WITH 1623-822442C3 CASTING)
  • 47
    43-826181A2 GEAR SET, Forward (INCLUDES PINION GEAR)
    (1.75:1 - 12/21)
    GEAR SET, Forward (INCLUDES PINION GEAR)
    (1.75:1 - 12/21)
  • 47
    43-878087A4 GEAR ASSEMBLY, Forward
    (NOTE: THIS COMPLETE GEAR SET IS A 1.62:1- 13/21 REPLACING A 1.64:1- 17/28)
    GEAR ASSEMBLY, Forward
    (NOTE: THIS COMPLETE GEAR SET IS A 1.62:1- 13/21 REPLACING A 1.64:1- 17/28)
  • 48
    31-30895T BEARING, Needle
    BEARING, Needle
  • 49
    24-30893 SPRING
    SPRING
  • 50
    52-853594T SLIDING CLUTCH
    SLIDING CLUTCH
  • 51
    17-78909 PIN, Detent
    PIN, Detent
  • 52
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 53
    44-8M0140440 PROPELLER SHAFT
    PROPELLER SHAFT
  • 54
    43-826182A1 GEAR ASSEMBLY, Reverse
    (1.75:1 GEAR RATIO - 12/21)
    GEAR ASSEMBLY, Reverse
    (1.75:1 GEAR RATIO - 12/21)
  • 54
    43-824109A1 GEAR ASSEMBLY, Reverse
    (1.64:1 GEAR RATIO - 17/28)
    GEAR ASSEMBLY, Reverse
    (1.64:1 GEAR RATIO - 17/28)
  • 54
    NSS NOT SOLD SEPARATE, Reverse Gear
    (1.62:1 - 13/21)(PART OF 43-828072A2)
    NOT SOLD SEPARATE, Reverse Gear
    (1.62:1 - 13/21)(PART OF 43-828072A2)
  • 55
    23-824108 SPACER
    SPACER
  • 56
    681001 RING, Thrust
    RING, Thrust
  • 57
    30-88957T BEARING ASSEMBLY, Ball
    BEARING ASSEMBLY, Ball
  • 58
    25-31534 O-RING
    O-RING
  • 59
    818763T11 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 60
    31-30956T BEARING, Needle
    BEARING, Needle
  • 61
    26-14077 SEAL, Oil (INSIDE)
    SEAL, Oil (INSIDE)
  • 62
    26-76868 SEAL (OUTSIDE)
    SEAL (OUTSIDE)
  • 63
    14-18323 TAB WASHER
    TAB WASHER
  • 64
    8M2000347 RETAINER
    RETAINER
  • 65
    97-76214Q5 ANODE KIT
    (These replacement parts are not included with complete gear housing replacement)
    ANODE KIT
    (These replacement parts are not included with complete gear housing replacement)
  • 66
    8227773 TRIM TAB
    (Black Aluminum)(These replacement parts are not included with complete gear housing replacement)
    TRIM TAB
    (Black Aluminum)(These replacement parts are not included with complete gear housing replacement)
  • 66
    97-822777Q1 TRIM TAB
    (Anodic)(These replacement parts are not included with complete gear housing replacement)GEAR THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH HOUSING REPLACEMENT
    TRIM TAB
    (Anodic)(These replacement parts are not included with complete gear housing replacement)GEAR THESE REPLACEMENT PARTS ARE NOT INCLUDED WITH HOUSING REPLACEMENT
  • 67
    10-806327 SCREW, (.437-14 x 1.750)
    (These replacement parts are not included with complete gear housing replacement)
    SCREW, (.437-14 x 1.750)
    (These replacement parts are not included with complete gear housing replacement)
  • 68
    12-835467Q01 THRUST HUB
    (These replacement parts are not included with complete gear housing replacement)
    THRUST HUB
    (These replacement parts are not included with complete gear housing replacement)
  • 69
    13-423511 LOCKWASHER, Toothed
    (These replacement parts are not included with complete gear housing replacement)
    LOCKWASHER, Toothed
    (These replacement parts are not included with complete gear housing replacement)
  • 70
    12-31211Q03 WASHER, Splined
    (These replacement parts are not included with complete gear housing replacement)
    WASHER, Splined
    (These replacement parts are not included with complete gear housing replacement)
  • 71
    14-816629Q TAB WASHER
    (These replacement parts are not included with complete gear housing replacement)
    TAB WASHER
    (These replacement parts are not included with complete gear housing replacement)
  • 72
    11-52707Q1 PROP NUT KIT, (.750-16)
    (These replacement parts are not included with complete gear housing replacement)
    PROP NUT KIT, (.750-16)
    (These replacement parts are not included with complete gear housing replacement)
  • -
    26-816575A5 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
