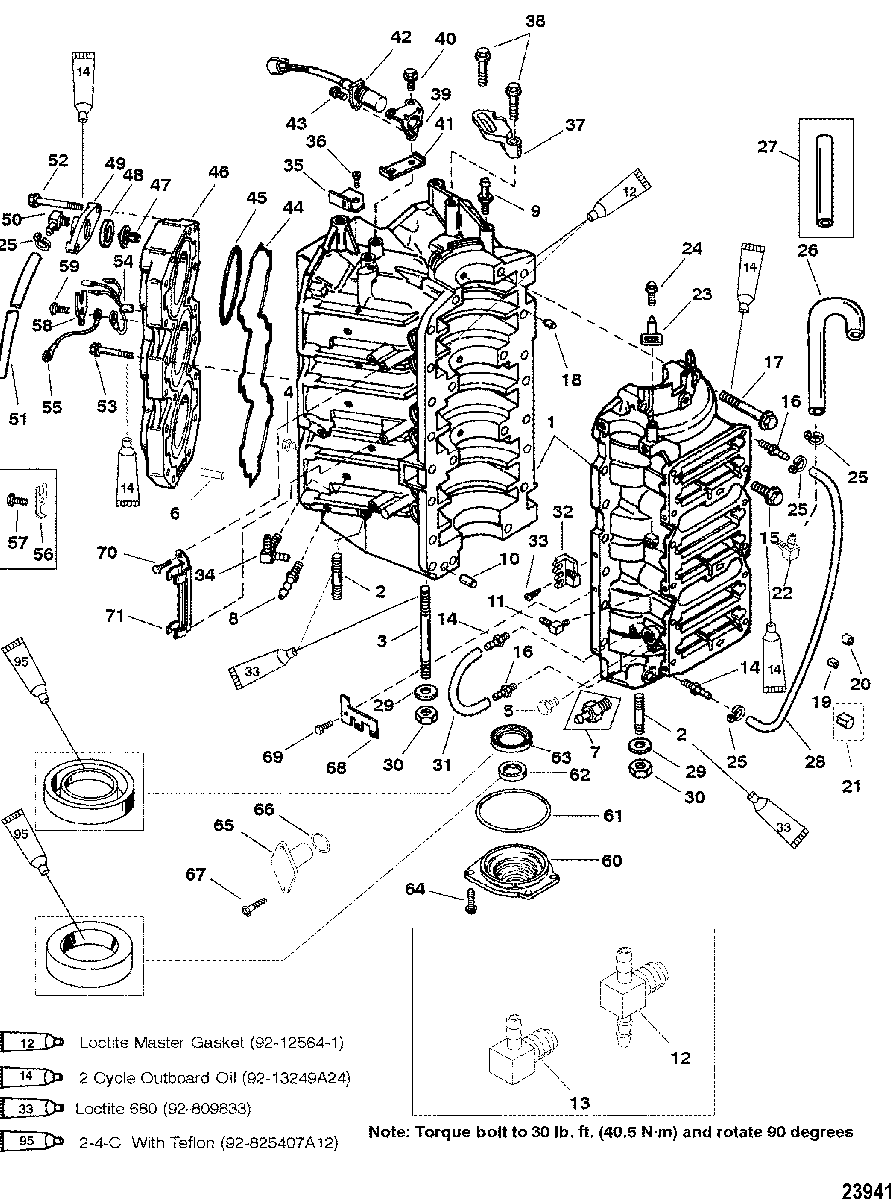

CYLINDER BLOCK AND END CAP для Mariner - 225 MARATHON (3.0L CARB) 0G245605 THRU 0G760299
-
№АртикулНазвание
-
1885-9811A7 CYLINDER BLOCK
SN# 0G129221 & BelowCYLINDER BLOCK
SN# 0G129221 & Below -
1885-9811A19 CYLINDER BLOCK
SN# 0G129222 THRU 0G437999CYLINDER BLOCK
SN# 0G129222 THRU 0G437999 -
1885-9811A19 CYLINDER BLOCK
SN# 0G438000 & UpCYLINDER BLOCK
SN# 0G438000 & Up -
216-903509 STUD, (M10 x 1.5 x 64)STUD, (M10 x 1.5 x 64)
-
316-8154431 STUD, (M10 x 1.5 x 155)STUD, (M10 x 1.5 x 155)
-
422-328022 PLUG, Pipe (.125-27)PLUG, Pipe (.125-27)
-
522-36382 FITTING, (.250-18 x .62) Brass
(SEAPRO/MARATHON)FITTING, (.250-18 x .62) Brass
(SEAPRO/MARATHON) -
68248577 DEFLECTOR, Water
SN# 0G438000 & UpDEFLECTOR, Water
SN# 0G438000 & Up -
721-8781051 FITTINGFITTING
-
822-8245021 CONNECTORCONNECTOR
-
98215832 PINPIN
-
1017-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1122-768431 FITTING
SN# 0G437999 & BelowFITTING
SN# 0G437999 & Below -
1122-768431 FITTING
SN# 0G438000 THRU 0G485988FITTING
SN# 0G438000 THRU 0G485988 -
1221-8348041 CHECK VALVE
SN# 0G485989 & UpCHECK VALVE
SN# 0G485989 & Up -
1321-8282182 CHECK VALVE
SN# 0G485989 & UpCHECK VALVE
SN# 0G485989 & Up -
1421-426585 CHECK VALVECHECK VALVE
-
1510-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1621-8159234 CHECK VALVECHECK VALVE
-
1710-82446180 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
1817-8M0036405 PINPIN
-
19825367A1 CARRIER ASSEMBLY (INCLUDES 6 CARRIERS)
(13 Tooth Splines) SN# 0G129222 THRU 0G437999CARRIER ASSEMBLY (INCLUDES 6 CARRIERS)
(13 Tooth Splines) SN# 0G129222 THRU 0G437999 -
2021-42657A3 CHECK VALVE
(13 Tooth Splines) SN# 0G129222 THRU 0G437999CHECK VALVE
(13 Tooth Splines) SN# 0G129222 THRU 0G437999 -
2119-850309001 PLUG
SN# 0G438000 & UpPLUG
SN# 0G438000 & Up -
2222-687271 FITTING, (.250-18) 90 Degree - Brass (Included with Reference #26)
SN# 0G129222 & UpFITTING, (.250-18) 90 Degree - Brass (Included with Reference #26)
SN# 0G129222 & Up -
2222-8167811 ELBOW (45 DEGREES)
SN# 0G129221 & BelowELBOW (45 DEGREES)
SN# 0G129221 & Below -
238217621 TIMING POINTERTIMING POINTER
-
2410-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
2554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2632-826544A1 TUBING KIT
SN# 0G129222 & UpTUBING KIT
SN# 0G129222 & Up -
2732-826544A1 TUBING (9-1/4 IN.)
SN# 0G129221 & BelowTUBING (9-1/4 IN.)
SN# 0G129221 & Below -
2832-892024122 TUBING, (20.00 Feet Bulk) (22-1/2 IN.)TUBING, (20.00 Feet Bulk) (22-1/2 IN.)
-
2912-856774 WASHER, (.406 x .750 x .104)WASHER, (.406 x .750 x .104)
-
3011-4013610 NUT, (M10)NUT, (M10)
-
3132-892024122 TUBING, (20.00 Feet Bulk) (4 IN.)
SN# 0G437999 & BelowTUBING, (20.00 Feet Bulk) (4 IN.)
SN# 0G437999 & Below -
3132-892024122 TUBING, (20.00 Feet Bulk) (3-3/4 IN.)
SN# 0G438000 & UpTUBING, (20.00 Feet Bulk) (3-3/4 IN.)
SN# 0G438000 & Up -
32821556 RETAINER, Check ValveRETAINER, Check Valve
-
3310-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3422-8243561 FITTINGFITTING
-
358256751 BRACKET
(SEAPRO/MARATHON) SN# 0G129222 & UpBRACKET
(SEAPRO/MARATHON) SN# 0G129222 & Up -
35822283 BRACKET
SN# 0G129221 & BelowBRACKET
SN# 0G129221 & Below -
3610-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
378211051 BRACKET, AlternatorBRACKET, Alternator
-
3810-81893450 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
398212251 BRACKETBRACKET
-
4010-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
41822486 BRACKET, GuideBRACKET, Guide
-
42821909 SENSORSENSOR
-
4310-82104510 SCREW, (M5 x 10)SCREW, (M5 x 10)
-
44818574 SEALSEAL
-
4525-818573 O-RINGO-RING
-
46812851A15 CYLINDER HEAD
(SEAPRO/MARATHON)CYLINDER HEAD
(SEAPRO/MARATHON) -
46812851A2 CYLINDER HEADCYLINDER HEAD
-
47833072003 THERMOSTAT, 62A° Celsius (143A° Fahrenheit)
SN# 0G438000 & UpTHERMOSTAT, 62A° Celsius (143A° Fahrenheit)
SN# 0G438000 & Up -
4775692 THERMOSTAT (143 DEGREES)
SN# 0G437999 & BelowTHERMOSTAT (143 DEGREES)
SN# 0G437999 & Below -
4827-62386001 GASKETGASKET
-
4919801A1 THERMOSTAT COVER
USE WITH 45 DEGREE ELBOWTHERMOSTAT COVER
USE WITH 45 DEGREE ELBOW -
4919801A1 COVER, Thermostat
USE WITH 90 DEGREE ELBOWCOVER, Thermostat
USE WITH 90 DEGREE ELBOW -
5022-8167811 ELBOW (45 DEGREES)
USE WITH 45 DEGREE ELBOWELBOW (45 DEGREES)
USE WITH 45 DEGREE ELBOW -
5022-687271 FITTING, (.250-18) 90 Degree - Brass (90 DEGREES)
USE WITH 90 DEGREE ELBOWFITTING, (.250-18) 90 Degree - Brass (90 DEGREES)
USE WITH 90 DEGREE ELBOW -
5132-77653101 HOSE, (59.00 Inches Bulk) (19 IN.)(20-1/2 IN.)
USE WITH 45 DEGREE ELBOWHOSE, (59.00 Inches Bulk) (19 IN.)(20-1/2 IN.)
USE WITH 45 DEGREE ELBOW -
5132-77653101 HOSE, (59.00 Inches Bulk) (20 IN.)(21-1/2 IN.)
USE WITH 90 DEGREE ELBOWHOSE, (59.00 Inches Bulk) (20 IN.)(21-1/2 IN.)
USE WITH 90 DEGREE ELBOW -
5210-82446090 SCREW, (M8 x 90)SCREW, (M8 x 90)
-
5310-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
5413536A14 SENSOR ASSEMBLY, Temperature
SEAPRO/MARATHON SN# 0G217420 & UpSENSOR ASSEMBLY, Temperature
SEAPRO/MARATHON SN# 0G217420 & Up -
5413536A14 SENSOR ASSEMBLY
SN# 0G217419 & BelowSENSOR ASSEMBLY
SN# 0G217419 & Below -
5584-88807A42 CABLE ASSEMBLY (USE WHERE APPLICABLE)
SEAPRO/MARATHON SN# 0G217420 & UpCABLE ASSEMBLY (USE WHERE APPLICABLE)
SEAPRO/MARATHON SN# 0G217420 & Up -
5584-88807A37 CABLE ASSEMBLY
SN# 0G217419 & BelowCABLE ASSEMBLY
SN# 0G217419 & Below -
56828523 RETAINER, Sensor
DESIGN IRETAINER, Sensor
DESIGN I -
5710-828552 SCREW, (.375-16 x .500)
DESIGN ISCREW, (.375-16 x .500)
DESIGN I -
58137151 RETAINER
DESIGN IIRETAINER
DESIGN II -
5910-81893412 SCREW, (M8 x 12)
DESIGN IISCREW, (M8 x 12)
DESIGN II -
601171-9787A5 END CAP ASSEMBLY, Lower
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & BelowEND CAP ASSEMBLY, Lower
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & Below -
601171-9787A4 END CAP ASSEMBLY
SN# 0G303046 & UpEND CAP ASSEMBLY
SN# 0G303046 & Up -
6125-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
6226-8185711 SEAL, Oil
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & BelowSEAL, Oil
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & Below -
6226-8308981 SEAL, Oil
SN# 0G303046 & UpSEAL, Oil
SN# 0G303046 & Up -
6326-859093 SEAL, Oil
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & BelowSEAL, Oil
SEE SERVICE BULLETIN 95-4 SN# 0G303045 & Below -
6410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
65434531 PLUG
SEAPRO/MARATHONPLUG
SEAPRO/MARATHON -
6625-62705 O-RING
SEAPRO/MARATHONO-RING
SEAPRO/MARATHON -
6710-82104520 SCREW, (M5 x 20) (M5 X 20)
SEAPRO/MARATHONSCREW, (M5 x 20) (M5 X 20)
SEAPRO/MARATHON -
688261211 BRACKETBRACKET
-
6910-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
7010-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
718266241 CLAMPCLAMP
-
-27-814195A93 GASKET SETGASKET SET
-
-823291A94 POWERHEAD ASSEMBLY
(8 TOOTH SPLINES) SN# 0G129221 & BelowPOWERHEAD ASSEMBLY
(8 TOOTH SPLINES) SN# 0G129221 & Below -
-809794R97 POWERHEAD ASSEMBLY
(13 TOOTH SPLINES) SN# 0G129222 & UpPOWERHEAD ASSEMBLY
(13 TOOTH SPLINES) SN# 0G129222 & Up -
-809793A00 POWERHEAD ASSEMBLY
(SEAPRO/MARATHON)POWERHEAD ASSEMBLY
(SEAPRO/MARATHON)
