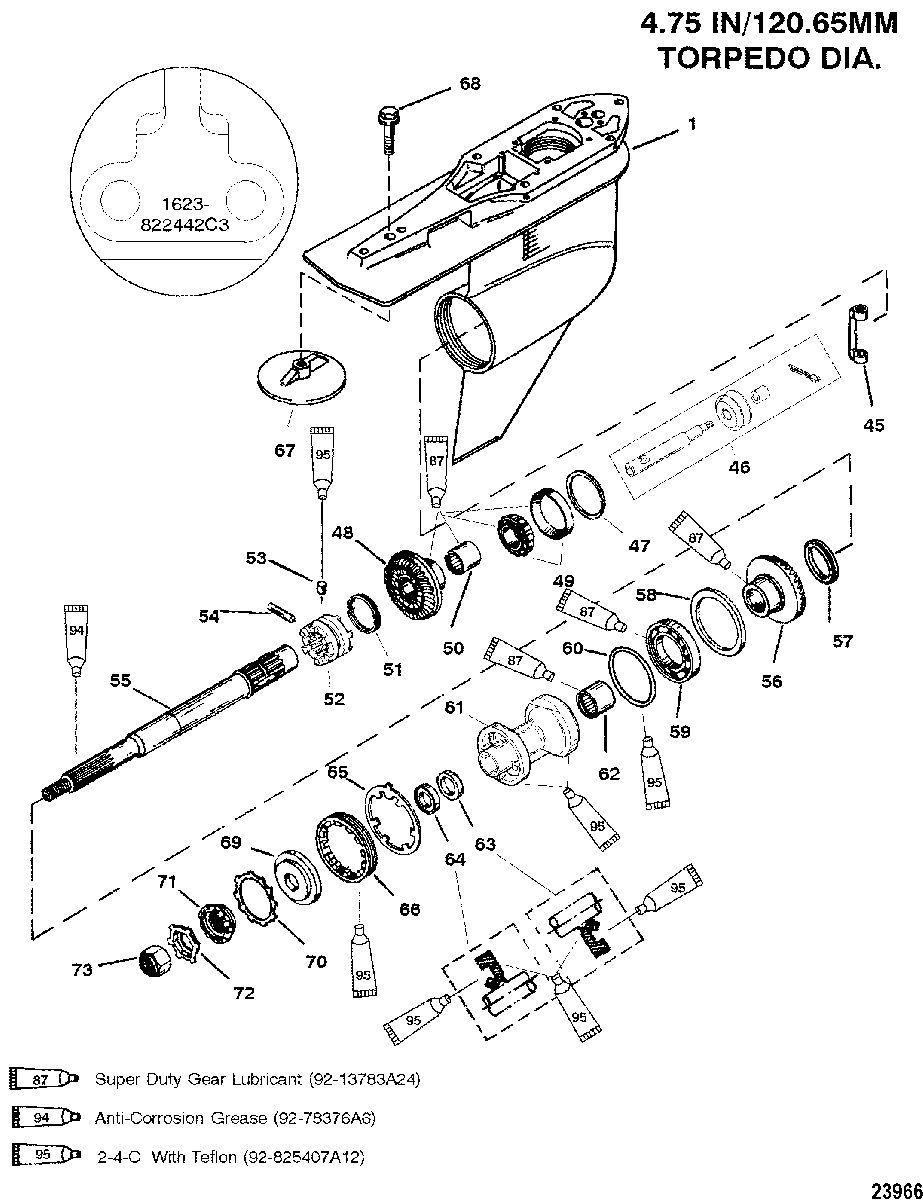

G/HSG, PROP-STD-0G438000 AND UP-1623-822442C3 для Mariner - 225 MARATHON (3.0L CARB) 0G245605 THRU 0G760299

  • №
    Артикул
    Название
  • 1
    1623-822442T77 GEAR HOUSING ASSEMBLY
    (BASIC-BLACK)
    GEAR HOUSING ASSEMBLY
    (BASIC-BLACK)
  • 1
    1623-822442T84 GEAR HOUSING ASSEMBLY
    (BASIC-GRAY)
    GEAR HOUSING ASSEMBLY
    (BASIC-GRAY)
  • 1
    1623-822442T79 GEAR HOUSING ASSEMBLY
    (BASIC-WHITE)
    GEAR HOUSING ASSEMBLY
    (BASIC-WHITE)
  • 45
    823903 SHIFT CRANK
    SHIFT CRANK
  • 46
    19755T7 SPOOL ASSEMBLY
    SPOOL ASSEMBLY
  • 47
    15-8M0063266 SHIM SET
    SHIM SET
  • 48
    43-859321A3 GEAR ASSEMBLY, Forward (INCLUDES PINION GEAR)
    (1.75:1 - 12/21)
    GEAR ASSEMBLY, Forward (INCLUDES PINION GEAR)
    (1.75:1 - 12/21)
  • 48
    43-878611A2 GEAR SET, Forward And Pinion (INCLUDES PINION GEAR)
    (1.87:1 - 15/28)
    GEAR SET, Forward And Pinion (INCLUDES PINION GEAR)
    (1.87:1 - 15/28)
  • 49
    31-30894A1 BEARING SET, Cup And Cone
    BEARING SET, Cup And Cone
  • 50
    31-30895T BEARING, Needle
    BEARING, Needle
  • 51
    24-30893 SPRING
    SPRING
  • 52
    52-859340T SLIDING CLUTCH
    SLIDING CLUTCH
  • 53
    17-828356 PIN, Detent
    PIN, Detent
  • 54
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 55
    44-8M0140440 PROPELLER SHAFT
    PROPELLER SHAFT
  • 56
    43-859322A1 GEAR ASSEMBLY, Reverse
    (1.75:1 - 12/21)
    GEAR ASSEMBLY, Reverse
    (1.75:1 - 12/21)
  • 56
    43-844147T01 GEAR, Reverse
    (1.87:1 - 15/28)
    GEAR, Reverse
    (1.87:1 - 15/28)
  • 57
    23-824108 SPACER
    SPACER
  • 58
    681001 RING, Thrust
    RING, Thrust
  • 59
    30-88957T BEARING ASSEMBLY, Ball
    BEARING ASSEMBLY, Ball
  • 60
    25-31534 O-RING
    O-RING
  • 61
    818763T11 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 62
    31-30956T BEARING, Needle
    BEARING, Needle
  • 63
    26-14077 SEAL, Oil (INSIDE)
    SEAL, Oil (INSIDE)
  • 64
    26-76868 SEAL (OUTSIDE)
    SEAL (OUTSIDE)
  • 65
    14-18323 TAB WASHER
    TAB WASHER
  • 66
    8M2000347 RETAINER
    RETAINER
  • 67
    97-76214Q5 ANODE KIT
    (These replacement parts are not included with complete gear housing replacement)
    ANODE KIT
    (These replacement parts are not included with complete gear housing replacement)
  • 68
    10-806327 SCREW, (.437-14 x 1.750)
    (These replacement parts are not included with complete gear housing replacement)
    SCREW, (.437-14 x 1.750)
    (These replacement parts are not included with complete gear housing replacement)
  • 69
    12-835467Q01 THRUST HUB
    (These replacement parts are not included with complete gear housing replacement)
    THRUST HUB
    (These replacement parts are not included with complete gear housing replacement)
  • 70
    13-423511 LOCKWASHER, Toothed
    (These replacement parts are not included with complete gear housing replacement)
    LOCKWASHER, Toothed
    (These replacement parts are not included with complete gear housing replacement)
  • 71
    12-31211Q03 WASHER, Splined
    (These replacement parts are not included with complete gear housing replacement)
    WASHER, Splined
    (These replacement parts are not included with complete gear housing replacement)
  • 72
    14-816629Q TAB WASHER
    (These replacement parts are not included with complete gear housing replacement)
    TAB WASHER
    (These replacement parts are not included with complete gear housing replacement)
  • 73
    11-52707Q1 PROP NUT KIT, (.750-16)
    (These replacement parts are not included with complete gear housing replacement)
    PROP NUT KIT, (.750-16)
    (These replacement parts are not included with complete gear housing replacement)
  • -
    26-816575A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
