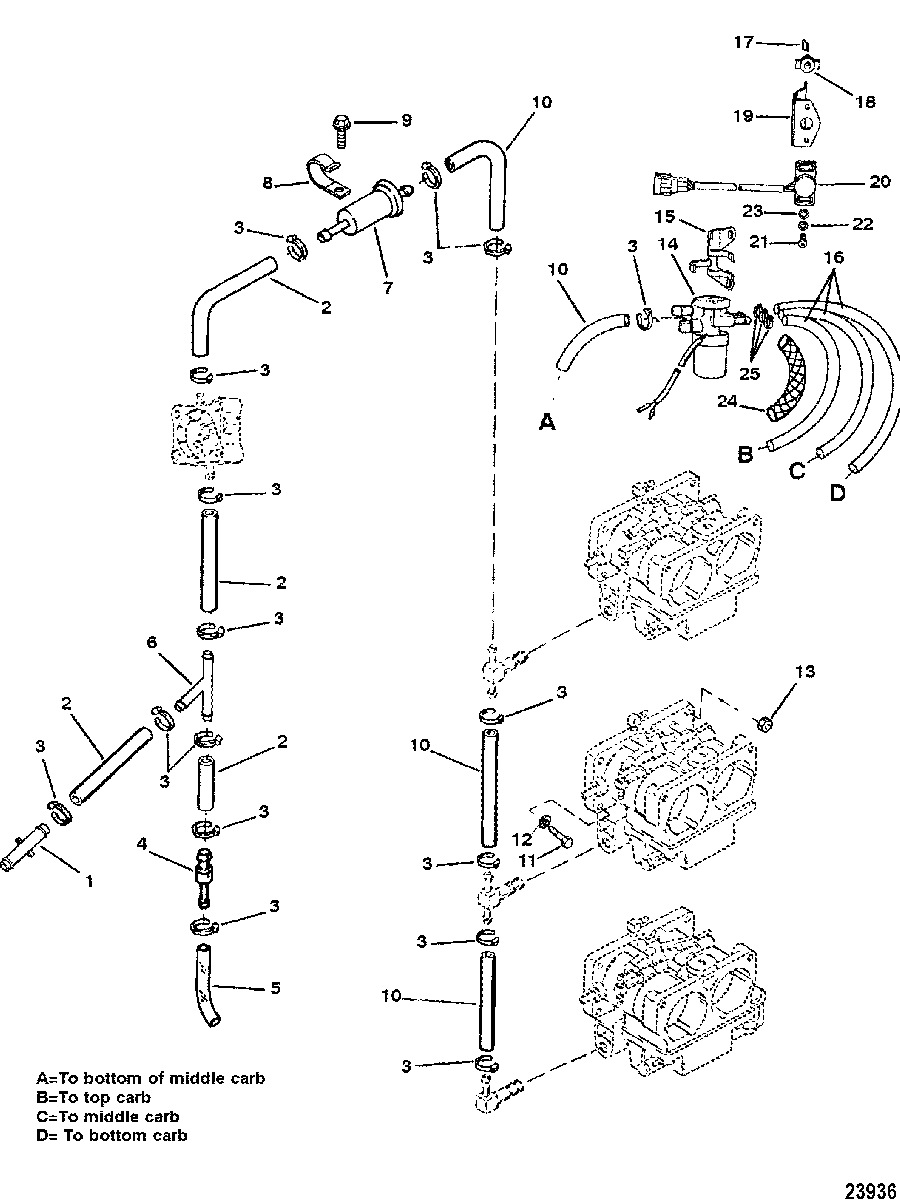

FUEL LINES(NON SEAPRO/MARATHON) для Mariner - 225 MARATHON (3.0L CARB) 0G245605 THRU 0G760299
-
№АртикулНазвание
-
122-822769 CONNECTORCONNECTOR
-
232-8M0108349 TUBING, (28.00 Inches Bulk) (4 IN.)(1-1/2 IN.)(7 IN.)(13-1/2 IN.)TUBING, (28.00 Inches Bulk) (4 IN.)(1-1/2 IN.)(7 IN.)(13-1/2 IN.)
-
354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
422-8189941 CHECK VALVECHECK VALVE
-
532-82381335 TUBING, (12.00 Inches Bulk) (6 IN.)TUBING, (12.00 Inches Bulk) (6 IN.)
-
622-818992 CONNECTORCONNECTOR
-
735-816296Q2 FILTER, FuelFILTER, Fuel
-
854-49542 CLAMPCLAMP
-
910-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
1032-8M0108355 HOSE, (57.00 Inches Bulk) (6-1/2 IN.)(5 IN.)(5 IN.)(4-1/2 IN.)HOSE, (57.00 Inches Bulk) (6-1/2 IN.)(5 IN.)(5 IN.)(4-1/2 IN.)
-
1110-4008820 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
1213-400256 LOCKWASHER, (M6)LOCKWASHER, (M6)
-
1311-401386 NUT, (M6)NUT, (M6)
-
14822528T SOLENOID VALVESOLENOID VALVE
-
158224931 BRACKETBRACKET
-
1632-9912878 HOSE, (.187) (26.00 Inches Bulk) (8-3/4 IN.)(8-3/4 IN.)(6 IN.)HOSE, (.187) (26.00 Inches Bulk) (8-3/4 IN.)(8-3/4 IN.)(6 IN.)
-
1728-89694 KEYKEY
-
18821153 COUPLINGCOUPLING
-
198212021 BRACKET, SensorBRACKET, Sensor
-
20821664 SENSOR, Throttle Position (TPI)SENSOR, Throttle Position (TPI)
-
2110-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
2212-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
2313-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
2423-82459612 OVERSLEEVEOVERSLEEVE
-
2556762 TIE STRAP, (4.00 Inches)TIE STRAP, (4.00 Inches)
