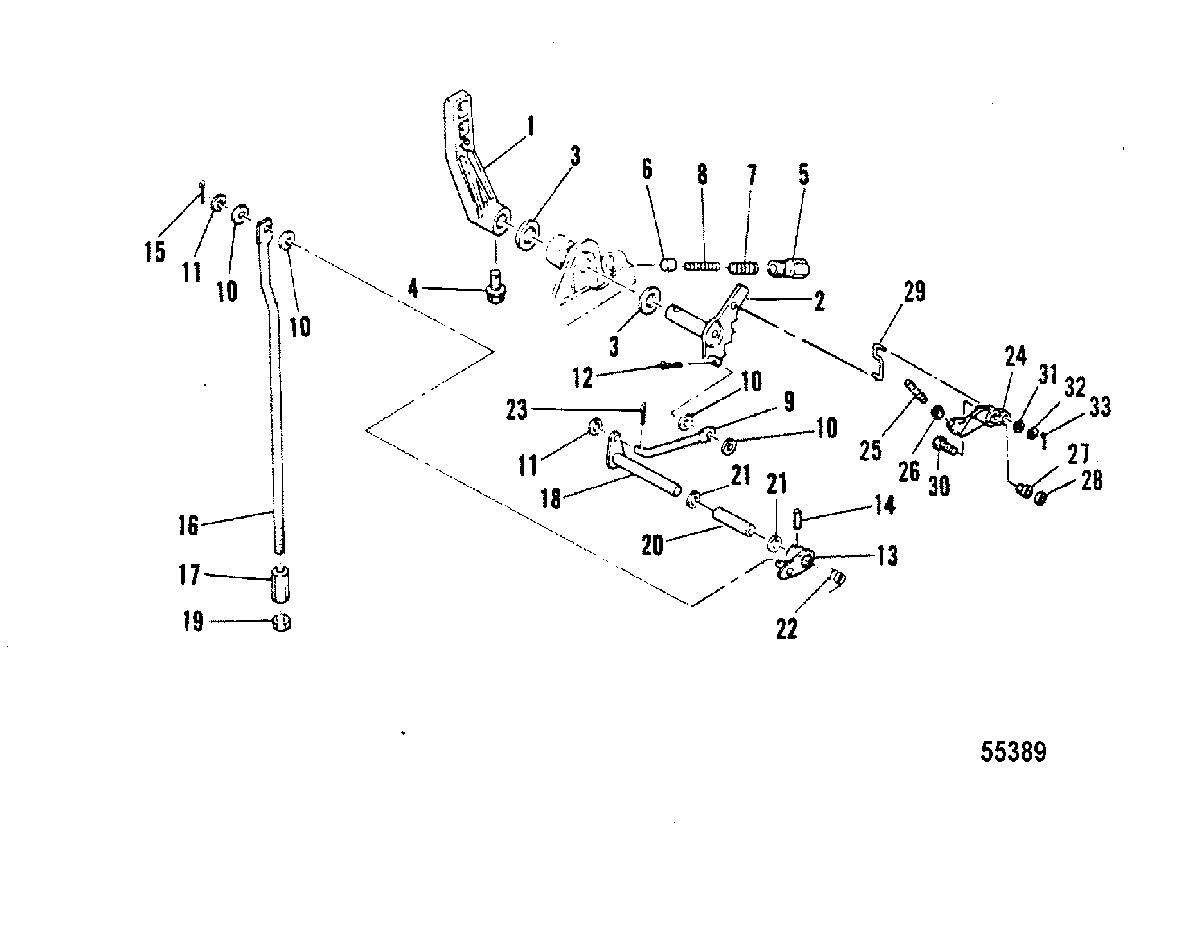

GEAR SHIFT LINKAGE для Mariner - 20C (THRU PROP. EXHAUST) 6A9-010112 & Up

  • №
    Артикул
    Название
  • 1
    84865M HANDLE, GEAR SHIFT
    HANDLE, GEAR SHIFT
  • 2
    84653M CAM, SHAFT
    CAM, SHAFT
  • 3
    12-81851M WASHER
    WASHER
  • 4
    10-84830M BOLT
    BOLT
  • 5
    84459M RETAINER, SHIFT DETENT
    RETAINER, SHIFT DETENT
  • 6
    84460M PLUNGER, SHIFT CAM
    PLUNGER, SHIFT CAM
  • 7
    24-84461M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 8
    24-84462M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 9
    81595M LINK ROD, SHIFT
    LINK ROD, SHIFT
  • 10
    12-81843M WASHER
    WASHER
  • 11
    12-82211M WASHER
    WASHER
  • 12
    18-82125M COTTER PIN, SHAFT CAM
    COTTER PIN, SHAFT CAM
  • 13
    84867M LEVER, SHIFT ROD
    LEVER, SHIFT ROD
  • 14
    17-82155M PIN, ROLL
    PIN, ROLL
  • 15
    18-82127M COTTER PIN, COTTER
    COTTER PIN, COTTER
  • 16
    81596M SHIFT ROD, SHIFT-UPPER
    SHIFT ROD, SHIFT-UPPER
  • 17
    80652M CONNECTOR, SHIFT
    CONNECTOR, SHIFT
  • 18
    97139M LEVER, SHIFT ROD
    LEVER, SHIFT ROD
  • 19
    11-81767M NUT
    NUT
  • 20
    23-97142M COLLAR
    COLLAR
  • 21
    12-81846M WASHER
    WASHER
  • 22
    24-97140M SPRING
    SPRING
  • 23
    18-16189 COTTER PIN, COTTER
    COTTER PIN, COTTER
  • 24
    91648M ARM
    MANUAL AND MANUAL LONG MODELS ONLY
    ARM
    MANUAL AND MANUAL LONG MODELS ONLY
  • 25
    16-41883M STUD
    MANUAL AND MANUAL LONG MODELS ONLY
    STUD
    MANUAL AND MANUAL LONG MODELS ONLY
  • 26
    11-82388M NUT
    MANUAL AND MANUAL LONG MODELS ONLY
    NUT
    MANUAL AND MANUAL LONG MODELS ONLY
  • 27
    23-83310M COLLAR
    MANUAL AND MANUAL LONG MODELS ONLY
    COLLAR
    MANUAL AND MANUAL LONG MODELS ONLY
  • 28
    12-81969M WASHER
    MANUAL AND MANUAL LONG MODELS ONLY
    WASHER
    MANUAL AND MANUAL LONG MODELS ONLY
  • 29
    91650M LINK
    MANUAL AND MANUAL LONG MODELS ONLY
    LINK
    MANUAL AND MANUAL LONG MODELS ONLY
  • 30
    10-84058M BOLT, (M6 x 20)
    MANUAL AND MANUAL LONG MODELS ONLY
    BOLT, (M6 x 20)
    MANUAL AND MANUAL LONG MODELS ONLY
  • 31
    13-81865M WASHER, WAVE
    MANUAL AND MANUAL LONG MODELS ONLY
    WASHER, WAVE
    MANUAL AND MANUAL LONG MODELS ONLY
  • 32
    12-82211M WASHER
    MANUAL AND MANUAL LONG MODELS ONLY
    WASHER
    MANUAL AND MANUAL LONG MODELS ONLY
  • 33
    18-82125M COTTER PIN, COTTER
    MANUAL AND MANUAL LONG MODELS ONLY
    COTTER PIN, COTTER
    MANUAL AND MANUAL LONG MODELS ONLY
