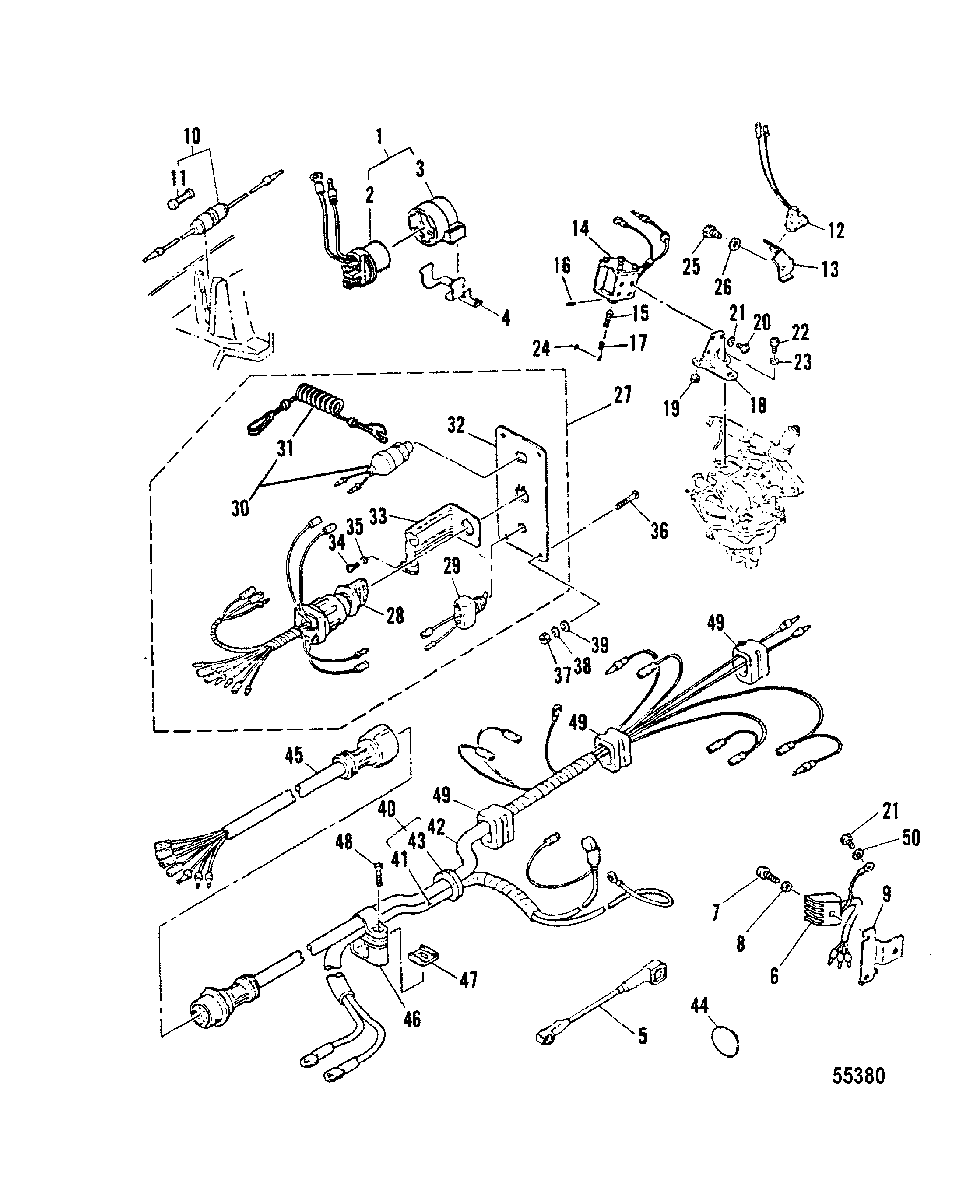

ELECTRIC START COMPONENTS для Mariner - 20C (THRU PROP. EXHAUST) 6A9-010112 & Up

  • №
    Артикул
    Название
  • 1
    89-8M0098898 SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 2
    89-8M0098898 SOLENOID
    SOLENOID
  • 3
    8M0010250 BRACKET
    BRACKET
  • 4
    92601M PLATE, SOLENOID MOUNTING
    PLATE, SOLENOID MOUNTING
  • 5
    84-96358M WIRE, SOLENOID
    WIRE, SOLENOID
  • 6
    8M0091976 RECTIFIER
    RECTIFIER
  • 7
    10-83108M SCREW
    SCREW
  • 8
    12-82211M WASHER
    WASHER
  • 9
    92603M PLATE, RECTIFIER MOUNTING
    SN# 00012379 THRU 09999999
    PLATE, RECTIFIER MOUNTING
    SN# 00012379 THRU 09999999
  • 10
    84937M FUSE ASSEMBLY
    FUSE ASSEMBLY
  • 11
    88-81522M FUSE (12V-20A)
    FUSE (12V-20A)
  • 12
    87-97684M SWITCH ASSEMBLY, Neutral Start
    SWITCH ASSEMBLY, Neutral Start
  • 13
    81110M PLATE, SWITCH AND LOCKOUT MOUNTING
    PLATE, SWITCH AND LOCKOUT MOUNTING
  • 14
    14230M SOLENOID, Choke
    SN# 00012380 THRU 09999999
    SOLENOID, Choke
    SN# 00012380 THRU 09999999
  • 14
    84940M SOLENOID, Choke
    SN# 00000000 THRU 00012379
    SOLENOID, Choke
    SN# 00000000 THRU 00012379
  • 15
    84702M HOOK, WIRE
    SN# 00012380 THRU 09999999
    HOOK, WIRE
    SN# 00012380 THRU 09999999
  • 15
    84411M HOOK, WIRE
    SN# 00000000 THRU 00012379
    HOOK, WIRE
    SN# 00000000 THRU 00012379
  • 16
    17-82145M PIN, ROLL
    PIN, ROLL
  • 17
    24-81667M WIRE, PULL
    WIRE, PULL
  • 18
    14231M PLATE, SOLENOID MOUNTING
    SN# M-012380 ML-308064 MUL-600476 E-251173 EL-550877 EUL-65010 AND ABOVE
    PLATE, SOLENOID MOUNTING
    SN# M-012380 ML-308064 MUL-600476 E-251173 EL-550877 EUL-65010 AND ABOVE
  • 18
    84941M PLATE, SOLENOID MOUNTING
    SN# M-012379 ML-308063 MUL-600475 E-251172 EL-550876 EUL-65010 AND BELOW
    PLATE, SOLENOID MOUNTING
    SN# M-012379 ML-308063 MUL-600475 E-251172 EL-550876 EUL-65010 AND BELOW
  • 19
    25-82060M GROMMET
    GROMMET
  • 20
    10-82512M SCREW
    SCREW
  • 21
    10-91772M BOLT
    SN# 00012380 THRU 09999999
    BOLT
    SN# 00012380 THRU 09999999
  • 22
    10-14232M SCREW
    SN# 00012380 THRU 09999999
    SCREW
    SN# 00012380 THRU 09999999
  • 22
    10-14232M SCREW
    SN# 00000000 THRU 00012379
    SCREW
    SN# 00000000 THRU 00012379
  • 23
    12-82211M WASHER
    WASHER
  • 24
    25-82258M O-RING
    O-RING
  • 25
    10-91772M BOLT
    SN# 00000000 THRU 00012379
    BOLT
    SN# 00000000 THRU 00012379
  • 26
    12-82214M WASHER
    SN# 00000000 THRU 00012379
    WASHER
    SN# 00000000 THRU 00012379
  • 27
    18975A1 PANEL ASSEMBLY, Switch
    PANEL ASSEMBLY, Switch
  • 28
    87-8M0078321 KEY SWITCH
    KEY SWITCH
  • 29
    87-84944M SWITCH, Choke
    SWITCH, Choke
  • 30
    87-97682M SWITCH ASSEMBLY, Stop
    SWITCH ASSEMBLY, Stop
  • 31
    97756M STOPPER
    STOPPER
  • 32
    42435M PANEL
    PANEL
  • 33
    81537M BRACKET
    BRACKET
  • 34
    10-82500M SCREW
    SCREW
  • 35
    13-82206M LOCKWASHER
    LOCKWASHER
  • 36
    10-80164M SCREW
    SCREW
  • 37
    11-82377M NUT
    NUT
  • 38
    13-82206M LOCKWASHER
    LOCKWASHER
  • 39
    12-82847M WASHER
    WASHER
  • 40
    84-95646M HARNESS ASSEMBLY, Engine Wiring
    HARNESS ASSEMBLY, Engine Wiring
  • 41
    84-97771M WIRE ASSEMBLY, BATTERY
    WIRE ASSEMBLY, BATTERY
  • 42
    84-95671M WIRE ASSEMBLY, IGNITION
    WIRE ASSEMBLY, IGNITION
  • 43
    25-84950M GROMMET
    GROMMET
  • 44
    82066M GROMMET
    GROMMET
  • 45
    84-84711M EXTENSION, WIRE HARNESS (5M)
    EXTENSION, WIRE HARNESS (5M)
  • 46
    54-97772M CLAMP
    CLAMP
  • 47
    84708M PLATE
    PLATE
  • 48
    10-84709M SCREW
    SCREW
  • 49
    25-84876M GROMMET
    GROMMET
  • 50
    13-82212M WASHER
    SN# 00012380 THRU 09999999
    WASHER
    SN# 00012380 THRU 09999999
