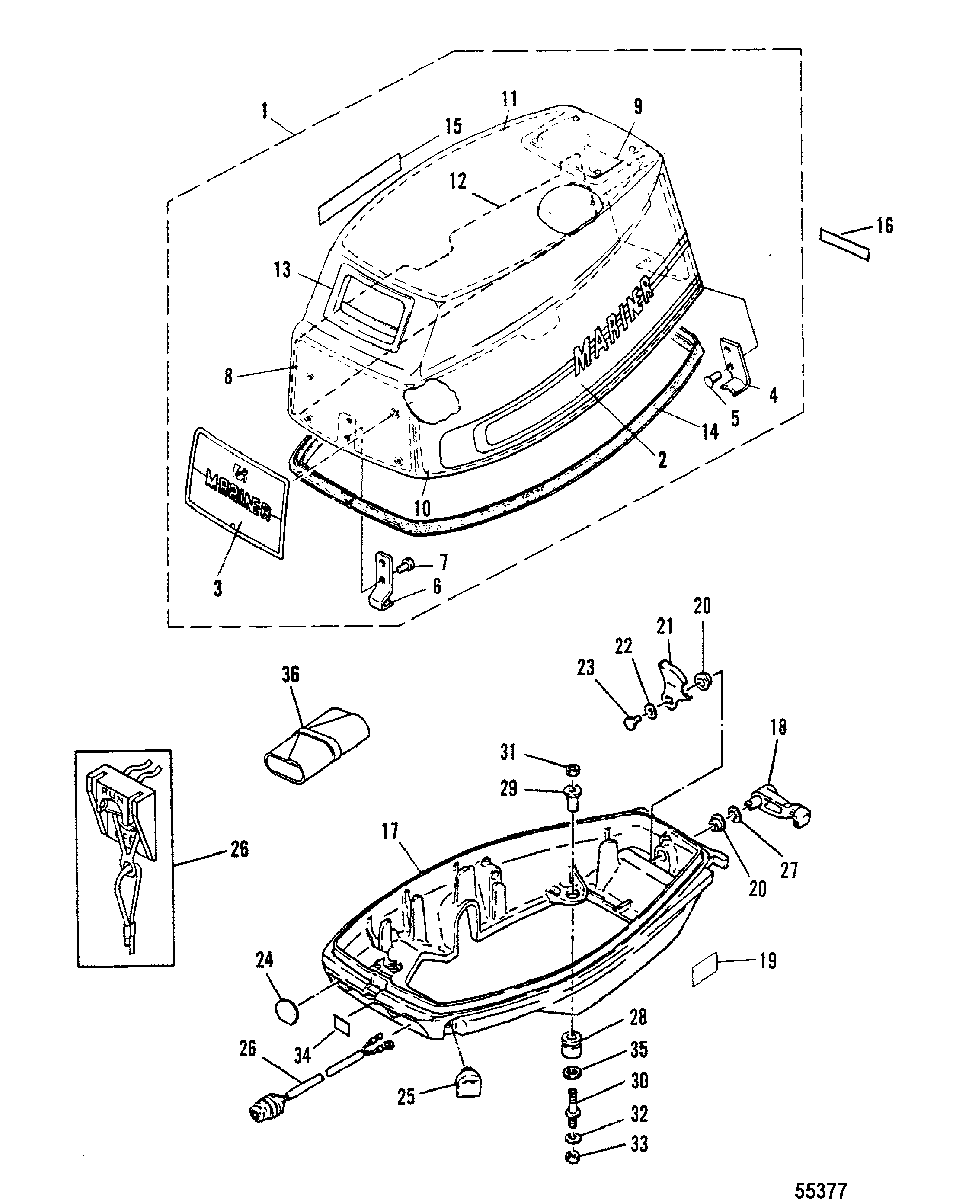

COWLING для Mariner - 20C (THRU PROP. EXHAUST) 6A9-010112 & Up

  • №
    Артикул
    Название
  • 1
    2168-9290M TOP COWL ASSEMBLY
    TOP COWL ASSEMBLY
  • 2
    37-95640M DECAL, SIDE SET
    DECAL, SIDE SET
  • 3
    37-95641M EMBLEM, FRONT
    EMBLEM, FRONT
  • 4
    83212M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 5
    17-84903M RIVET
    RIVET
  • 6
    83137M HOOK
    HOOK
  • 7
    17-83140M RIVET
    RIVET
  • 8
    84323M SOUND BLANKET
    SOUND BLANKET
  • 9
    84323M SOUND BLANKET
    SOUND BLANKET
  • 10
    83125M SOUND BLANKET
    SOUND BLANKET
  • 11
    83232M SOUND BLANKET
    SOUND BLANKET
  • 12
    83125M SOUND BLANKET
    SOUND BLANKET
  • 13
    80601M SEAL, RUBBER-STARTER
    SEAL, RUBBER-STARTER
  • 14
    84901M SEAL, TOP COWL
    SEAL, TOP COWL
  • 15
    37-81202M DECAL, Shift Indicator, SHIFT
    DECAL, Shift Indicator, SHIFT
  • 16
    37-95547M DECAL, ELECTRIC MODEL
    DECAL, ELECTRIC MODEL
  • 17
    2168-9349M BOTTOM COWL
    BOTTOM COWL
  • 18
    84913M LEVER, COWL CLAMP
    LEVER, COWL CLAMP
  • 19
    37-83054M GRAPHIC, SIDE (HP)
    GRAPHIC, SIDE (HP)
  • 20
    23-81949M BUSHING, COWL CLAMP LEVER
    BUSHING, COWL CLAMP LEVER
  • 21
    54-84914M CLAMP, COWL
    CLAMP, COWL
  • 22
    12-81794M WASHER
    WASHER
  • 23
    10-84088M BOLT
    BOLT
  • 24
    25-83988M GROMMET, BOTTOM COWL (MANUAL)
    GROMMET, BOTTOM COWL (MANUAL)
  • 25
    25-826981M GROMMET, BOTTOM COWL
    GROMMET, BOTTOM COWL
  • 26
    87-14222M LANYARD IGNITION SWITCH ASSEMBLY
    SN# 00012380 THRU 09999999
    LANYARD IGNITION SWITCH ASSEMBLY
    SN# 00012380 THRU 09999999
  • 26
    87-93102M SWITCH ASSEMBLY, Stop (MANUAL)
    SN# 00000000 THRU 00012379
    SWITCH ASSEMBLY, Stop (MANUAL)
    SN# 00000000 THRU 00012379
  • 27
    13-81869M WASHER, WAVE
    WASHER, WAVE
  • 28
    25-84910M GROMMET
    GROMMET
  • 29
    23-84911M COLLAR
    COLLAR
  • 30
    16-95505M STUD, SPECIAL
    SN# 00012380 THRU 09999999
    STUD, SPECIAL
    SN# 00012380 THRU 09999999
  • 30
    16-95505M STUD, SPECIAL
    SN# 00000000 THRU 00012379
    STUD, SPECIAL
    SN# 00000000 THRU 00012379
  • 31
    11-82383M NUT
    NUT
  • 32
    12-82217M WASHER
    WASHER
  • 33
    11-82383M NUT
    NUT
  • 34
    37-95570M DECAL
    SN# 00000000 THRU 00012379
    DECAL
    SN# 00000000 THRU 00012379
  • 35
    12-95507M WASHER
    SN# 00012380 THRU 09999999
    WASHER
    SN# 00012380 THRU 09999999
  • 36
    91-803581 TOOL KIT
    TOOL KIT
