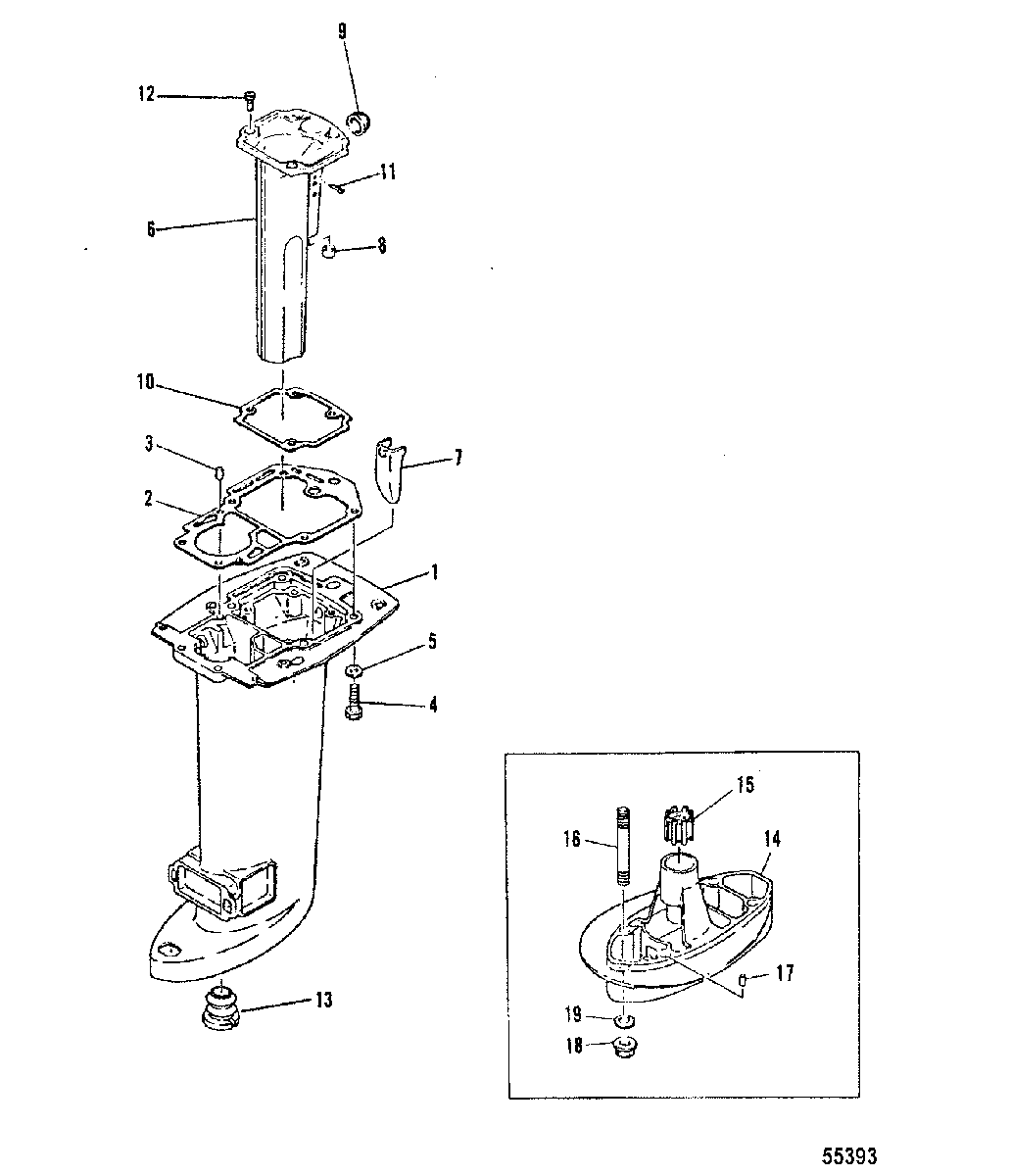

DRIVESHAFT HOUSING для Mariner - 20C (THRU PROP. EXHAUST) 6A9-010112 & Up

  • №
    Артикул
    Название
  • 1
    1587-9244M HOUSING, Driveshaft (SHORT SHAFT)
    HOUSING, Driveshaft (SHORT SHAFT)
  • 1
    1587-7843M HOUSING, Driveshaft
    (LONG AND ULTRA LONG SHAFT)
    HOUSING, Driveshaft
    (LONG AND ULTRA LONG SHAFT)
  • 2
    27-84775 GASKET
    GASKET
  • 3
    17-82364M PIN, Dowel, DOWEL
    PIN, Dowel, DOWEL
  • 4
    10-95416M BOLT
    BOLT
  • 5
    12-82217M WASHER
    WASHER
  • 6
    83306M MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 7
    84776M GUIDE, Exhaust (SHORT SHAFT)
    GUIDE, Exhaust (SHORT SHAFT)
  • 7
    84777M GUIDE, Exhaust
    (LONG AND ULTRA LONG SHAFT)
    GUIDE, Exhaust
    (LONG AND ULTRA LONG SHAFT)
  • 8
    26-81574M SEAL, EXHAUST MANIFOLD
    SEAL, EXHAUST MANIFOLD
  • 9
    26-81572M SEAL, EXHAUST MANIFOLD
    SEAL, EXHAUST MANIFOLD
  • 10
    27-826991M GASKET, EXHAUST MANIFOLD
    GASKET, EXHAUST MANIFOLD
  • 11
    18-82132M COTTER PIN, COTTER
    COTTER PIN, COTTER
  • 12
    10-83870M SCREW
    SCREW
  • 13
    26-43114M SEAL
    SEAL
  • 14
    84783M EXTENSION (ULTRA LONG SHAFT) (SEE NOTE)
    OPTIONAL PARTS
    EXTENSION (ULTRA LONG SHAFT) (SEE NOTE)
    OPTIONAL PARTS
  • 15
    23-84784M BUSHING
    OPTIONAL PARTS
    BUSHING
    OPTIONAL PARTS
  • 16
    16-84785M STUD
    OPTIONAL PARTS
    STUD
    OPTIONAL PARTS
  • 17
    17-82364M PIN, Dowel, DOWEL
    OPTIONAL PARTS
    PIN, Dowel, DOWEL
    OPTIONAL PARTS
  • 18
    11-84786M NUT
    OPTIONAL PARTS
    NUT
    OPTIONAL PARTS
  • 19
    12-82220M WASHER
    OPTIONAL PARTS
    WASHER
    OPTIONAL PARTS
