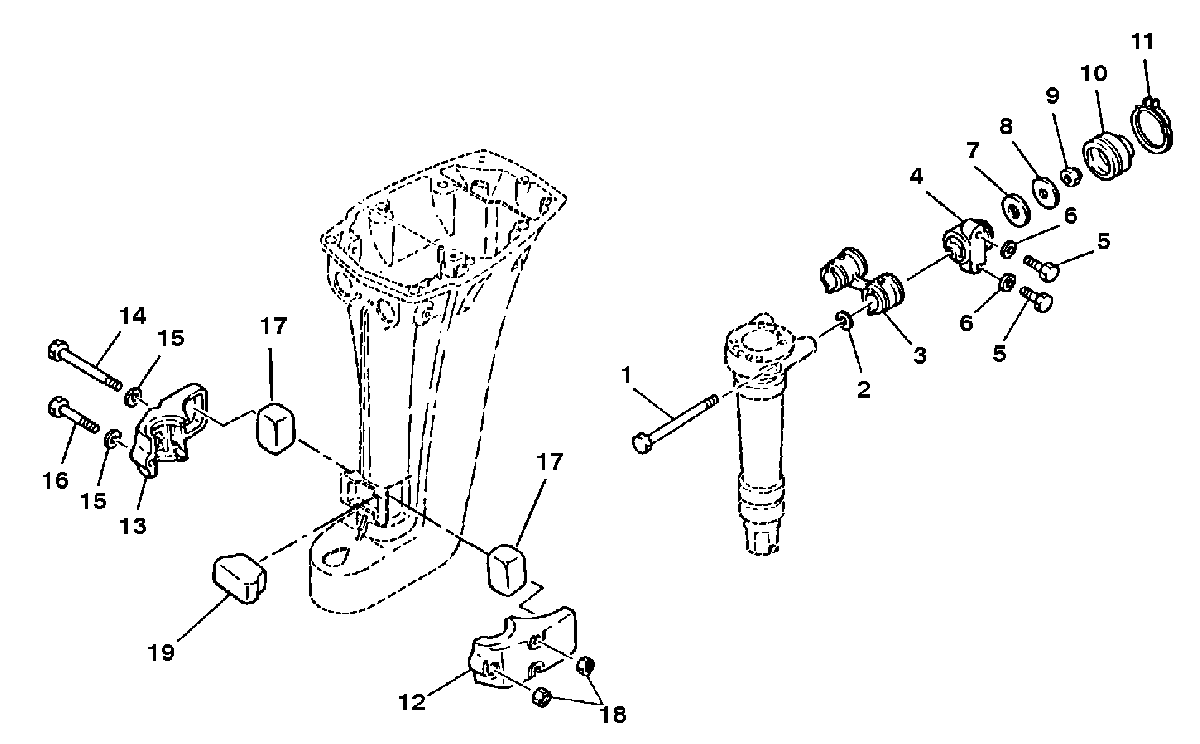

MOUNTING SYSTEM для Mariner - 15K 6M7-400101 AND UP
-
№АртикулНазвание
-
110-84061M BOLTBOLT
-
212-84292M WASHERWASHER
-
326-94574M SEALSEAL
-
4898101359 MOUNT DAMPERMOUNT DAMPER
-
510-82405M BOLTBOLT
-
612-82214M WASHERWASHER
-
712-84294M WASHERWASHER
-
812-84293M WASHERWASHER
-
911-84295M NUTNUT
-
1026-84034M SEALSEAL
-
1154-827148M CLAMP
(M-100131 ML-402041 AND UP)CLAMP
(M-100131 ML-402041 AND UP) -
1154-84296M CLAMP
(M-100130 ML-402040 AND BELOW)CLAMP
(M-100130 ML-402040 AND BELOW) -
1294575M HOUSING (PORT)HOUSING (PORT)
-
1394614M HOUSING (STARBOARD)HOUSING (STARBOARD)
-
1410-94615M BOLTBOLT
-
1512-82217M WASHERWASHER
-
1610-84057M BOLTBOLT
-
1784037M MOUNT DAMPERMOUNT DAMPER
-
1811-82383M NUTNUT
-
1984038M MOUNT DAMPERMOUNT DAMPER
Все узлы модели:
- C.D.I. MAGNETO
- CARBURETOR
- CLAMP AND SWIVEL BRACKET
- CLAMP AND SWIVEL BRACKET
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- FUEL PUMP/FUEL LINES
- FUEL TANK AND FUEL LINE ASSEMBLY
- GEAR HOUSING ASSEMBLY
- GEAR HOUSING ASSEMBLY
- GEAR SHIFT LINKAGE
- INTAKE MANIFOLD AND CHOKE
- LOWER GEAR HOUSING
- • MOUNTING SYSTEM
- OPTIONAL PARTS
- RECOIL STARTER
- STEERING HANDLE
- THROTTLE LINKAGE
