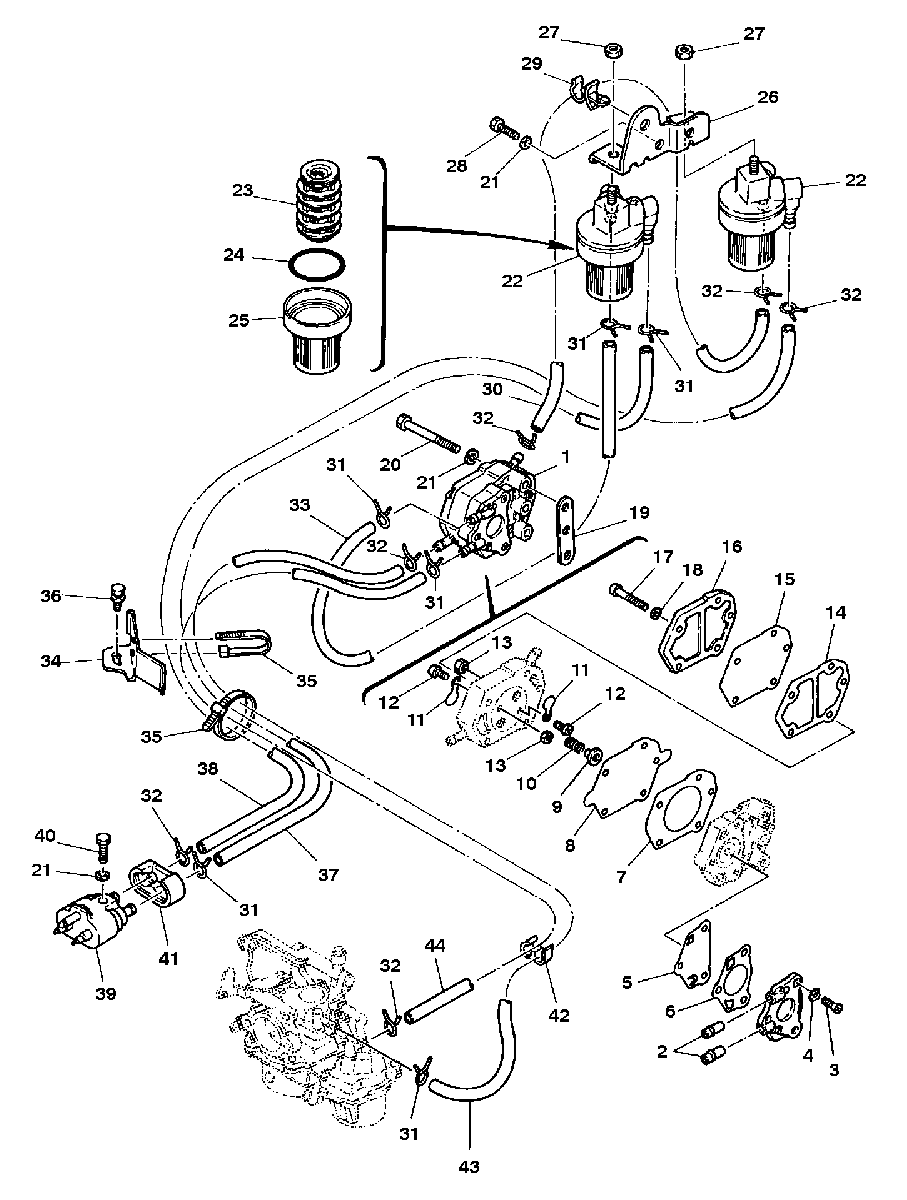

FUEL PUMP/FUEL LINES для Mariner - 15K 6M7-400101 AND UP

  • №
    Артикул
    Название
  • 1
    804358T1 FUEL PUMP ASSEMBLY
    FUEL PUMP ASSEMBLY
  • 2
    22-94716M CONNECTOR
    CONNECTOR
  • 3
    10-94724M SCREW
    SCREW
  • 4
    13-94725M LOCKWASHER
    LOCKWASHER
  • 5
    94717M DIAPHRAGM
    DIAPHRAGM
  • 6
    27-94718M GASKET
    GASKET
  • 7
    27-80613 GASKET
    GASKET
  • 8
    80606M DIAPHRAGM
    DIAPHRAGM
  • 9
    80611M PLATE
    PLATE
  • 10
    24-80610M SPRING
    SPRING
  • 11
    21-41888M CHECK VALVE
    CHECK VALVE
  • 12
    10-41889M SCREW
    SCREW
  • 13
    11-82537M NUT
    NUT
  • 14
    84141M DIAPHRAGM
    DIAPHRAGM
  • 15
    27-80614 GASKET
    GASKET
  • 16
    80607M COVER
    COVER
  • 17
    10-82522M SCREW
    SCREW
  • 18
    13-82186M LOCKWASHER
    LOCKWASHER
  • 19
    27-811263M GASKET
    GASKET
  • 20
    10-84931M BOLT
    BOLT
  • 21
    12-82214M WASHER
    WASHER
  • 22
    35-8M0121336 FUEL FILTER
    M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD
    FUEL FILTER
    M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD
  • 23
    35-826965T FILTER
    M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD
    FILTER
    M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD
  • 24
    25-826966T O-RING
    M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD
    O-RING
    M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD
  • 25
    826967M CUP
    M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD
    CUP
    M-100131 ML-402041 AND UP REF. #22 HAS EXTERNAL THREAD REF. #25 HAS INTERNAL THREAD
  • 22
    35-8M0121336 FUEL FILTER
    M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD
    FUEL FILTER
    M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD
  • 23
    35-826965T FILTER
    M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD
    FILTER
    M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD
  • 24
    25-84957M O-RING
    M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD
    O-RING
    M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD
  • 25
    11935M CUP
    M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD
    CUP
    M-100130 ML-402040 AND BELOW REF. #22 HAS INTERNAL THREAD REF. #25 HAS EXTERNAL THREAD
  • 26
    811260M BRACKET
    BRACKET
  • 27
    11-82382M NUT
    NUT
  • 28
    10-826957M BOLT
    BOLT
  • 29
    54-811261M CLAMP
    CLAMP
  • 30
    32-98976M HOSE
    HOSE
  • 31
    54-82047M CLIP
    CLIP
  • 32
    54-98974M CLIP
    CLIP
  • 33
    32-82012M HOSE
    HOSE
  • 34
    811258M BRACKET
    BRACKET
  • 35
    56762 STA-STRAP
    STA-STRAP
  • 36
    10-811259M BOLT
    BOLT
  • 37
    32-811256M HOSE
    HOSE
  • 38
    32-82012M HOSE
    HOSE
  • 39
    95604M CONNECTOR
    CONNECTOR
  • 40
    10-84058M BOLT
    BOLT
  • 41
    25-97607M SEAL
    SEAL
  • 42
    54-811264M CLAMP
    CLAMP
  • 43
    32-82012M HOSE
    HOSE
  • 44
    32-82012M HOSE
    HOSE
  • -
    27-811233M POWERHEAD GASKET SET
    POWERHEAD GASKET SET
