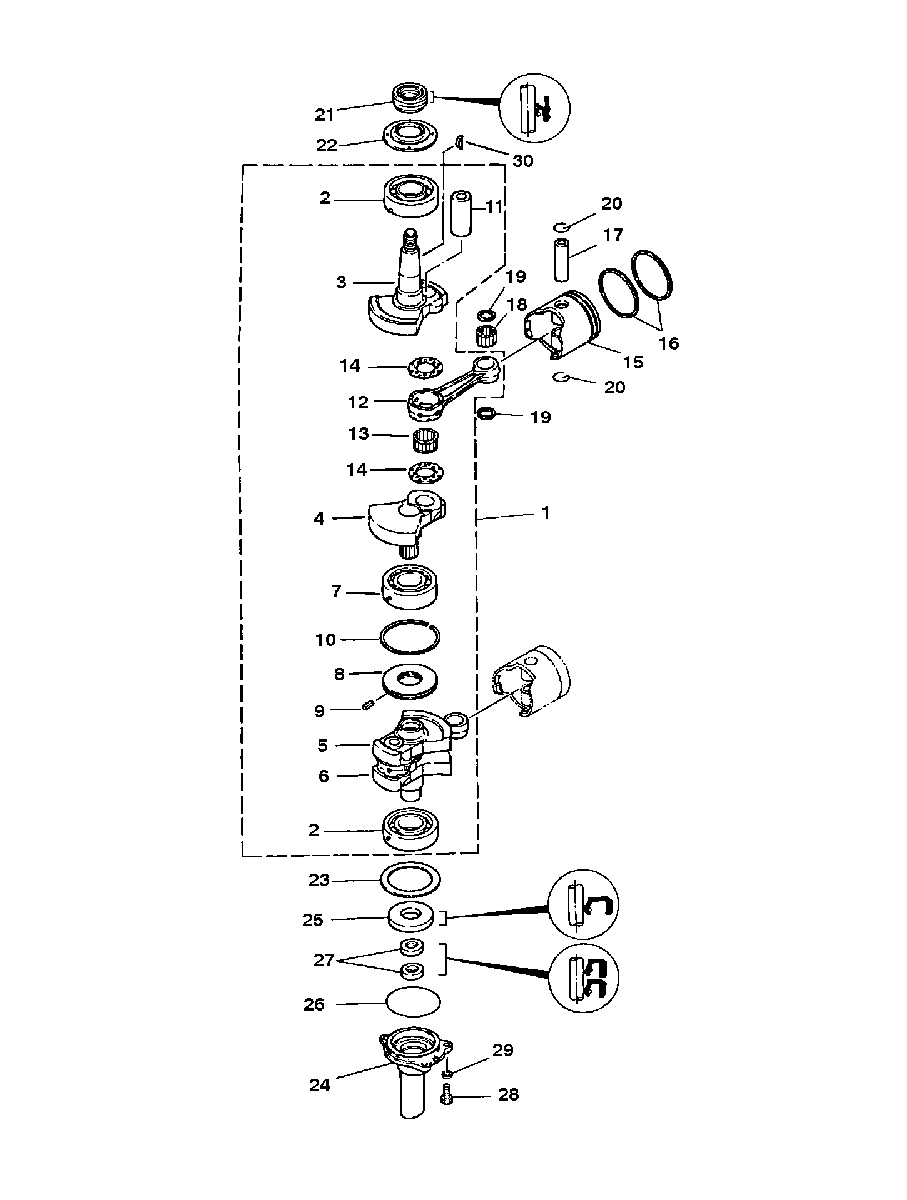

CRANKSHAFT AND PISTON для Mariner - 15K 6M7-400101 AND UP

  • №
    Артикул
    Название
  • 1
    463-9579M CRANKSHAFT
    (CYLINDRICAL UNION CRANK)
    CRANKSHAFT
    (CYLINDRICAL UNION CRANK)
  • 2
    30-82303T BEARING
    BEARING
  • 3
    827192M CRANK
    SPLINDED UNION CRANK
    CRANK
    SPLINDED UNION CRANK
  • 4
    19262M CRANK
    SPLINDED UNION CRANK
    CRANK
    SPLINDED UNION CRANK
  • 5
    19263M CRANK
    SPLINDED UNION CRANK
    CRANK
    SPLINDED UNION CRANK
  • 6
    812492M CRANK
    SPLINDED UNION CRANK
    CRANK
    SPLINDED UNION CRANK
  • 7
    30-84626T BEARING
    SPLINDED UNION CRANK
    BEARING
    SPLINDED UNION CRANK
  • 8
    94556M SEAL
    SPLINDED UNION CRANK
    SEAL
    SPLINDED UNION CRANK
  • 3
    827192M CRANK
    CYLINDRICAL UNION CRANK
    CRANK
    CYLINDRICAL UNION CRANK
  • 4
    852799 CRANK
    CYLINDRICAL UNION CRANK
    CRANK
    CYLINDRICAL UNION CRANK
  • 5
    8527991 CRANK
    CYLINDRICAL UNION CRANK
    CRANK
    CYLINDRICAL UNION CRANK
  • 6
    812492M CRANK
    CYLINDRICAL UNION CRANK
    CRANK
    CYLINDRICAL UNION CRANK
  • 7
    30-84626T BEARING
    CYLINDRICAL UNION CRANK
    BEARING
    CYLINDRICAL UNION CRANK
  • 8
    827435M SEAL
    CYLINDRICAL UNION CRANK
    SEAL
    CYLINDRICAL UNION CRANK
  • 9
    17-812493M PIN
    PIN
  • 10
    53-94555M CIRCLlP
    CIRCLlP
  • 11
    17-84625M PIN
    PIN
  • 12
    629-812494M CONNECTING ROD
    CONNECTING ROD
  • 13
    31-812495M BEARING
    BEARING
  • 14
    12-84636M WASHER
    WASHER
  • 15
    761-9580T PISTON (STANDARD)
    PISTON (STANDARD)
  • 15
    761-9581M PISTON (1st. O.S. 0.25MM)
    PISTON (1st. O.S. 0.25MM)
  • 15
    761-9582M PISTON (2nd. O.S. 0.50MM)
    PISTON (2nd. O.S. 0.50MM)
  • 16
    39-15320T PISTON RING SET (STANDARD)
    PISTON RING SET (STANDARD)
  • 16
    39-18939T PISTON RING SET (1st. O.S. 0.25MM)
    PISTON RING SET (1st. O.S. 0.25MM)
  • 16
    39-15322T PISTON RING SET (2nd. O.S. 0.50MM)
    PISTON RING SET (2nd. O.S. 0.50MM)
  • 17
    41-80272M PISTON PIN
    PISTON PIN
  • 18
    29-82349M BEARING
    BEARING
  • 19
    12-81823M WASHER
    WASHER
  • 20
    53-82343M SNAP RING
    SNAP RING
  • 21
    26-83936M OIL SEAL
    OIL SEAL
  • 22
    23-84243M SPACER
    SPACER
  • 23
    12-15323M WASHER
    WASHER
  • 24
    18940M HOUSING
    HOUSING
  • 25
    26-18843M OIL SEAL
    OIL SEAL
  • 26
    25-83930M O-RING
    O-RING
  • 27
    26-96606M OIL SEAL
    OIL SEAL
  • 28
    10-826957M BOLT
    BOLT
  • 29
    12-82214M WASHER
    WASHER
  • 30
    28-8M0057164 WOODRUFF KEY
    WOODRUFF KEY
  • -
    811230M POWERHEAD
    POWERHEAD
  • -
    27-811233M POWERHEAD GASKET SET
    POWERHEAD GASKET SET
