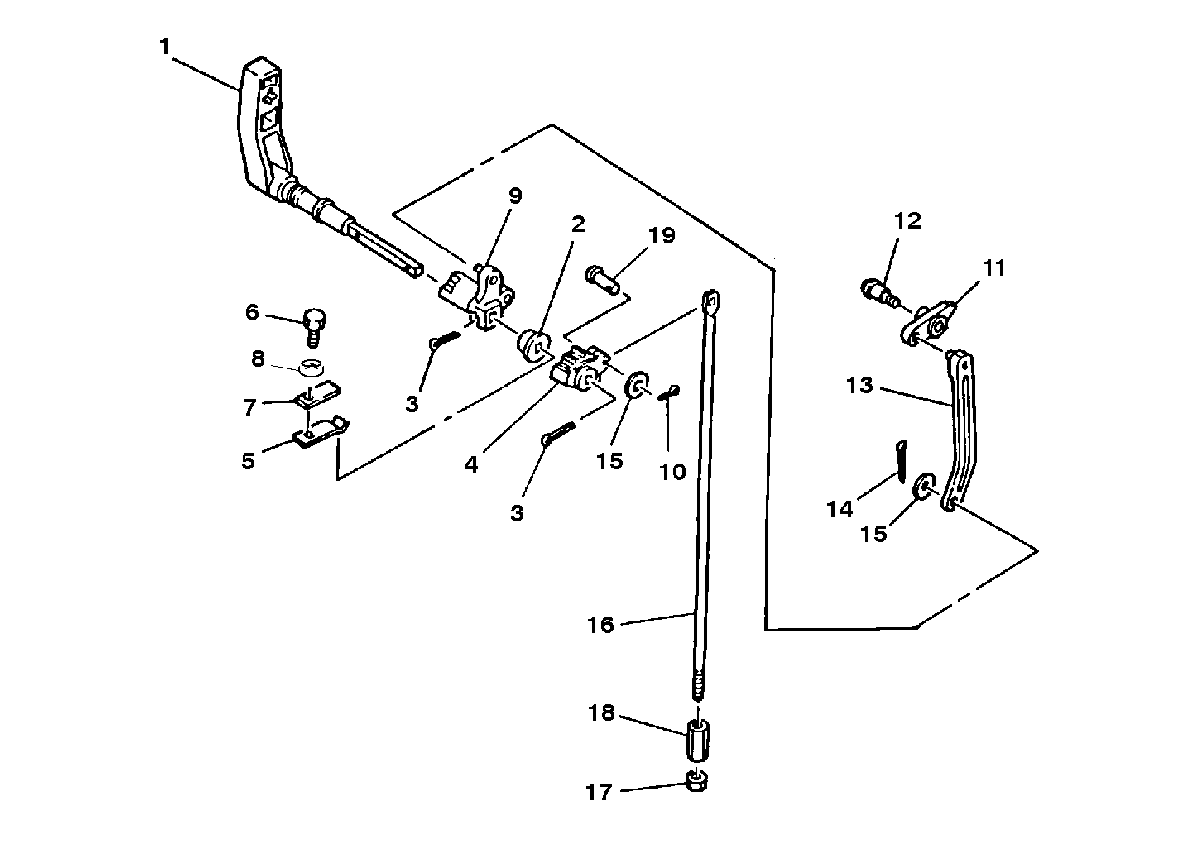

GEAR SHIFT LINKAGE для Mariner - 15K 6M7-400101 AND UP

  • №
    Артикул
    Название
  • 1
    84005M GEAR SHIFT HANDLE
    GEAR SHIFT HANDLE
  • 2
    23-84013M BUSHING
    BUSHING
  • 3
    18-84301M COTTER PIN
    COTTER PIN
  • 4
    84009M SHIFT ROD LEVER
    S/N-M-6M7-100155/ML-6M7-402510 & BELOW
    SHIFT ROD LEVER
    S/N-M-6M7-100155/ML-6M7-402510 & BELOW
  • 5
    84302M SPRING PLATE
    S/N-M-6M7-100155/ML-6M7-402510 & BELOW
    SPRING PLATE
    S/N-M-6M7-100155/ML-6M7-402510 & BELOW
  • 6
    10-91772M BOLT
    S/N-M-6M7-100155/ML-6M7-402510 & BELOW
    BOLT
    S/N-M-6M7-100155/ML-6M7-402510 & BELOW
  • 7
    84007M BRACKET
    S/N-M-6M7-100155/ML-6M7-402510 & BELOW
    BRACKET
    S/N-M-6M7-100155/ML-6M7-402510 & BELOW
  • 4
    852065M SHIFT ROD LEVER
    S/N-M-6M7-100156/ML-6M7-402511 & UP
    SHIFT ROD LEVER
    S/N-M-6M7-100156/ML-6M7-402511 & UP
  • 5
    852064M SPRING PLATE
    S/N-M-6M7-100156/ML-6M7-402511 & UP
    SPRING PLATE
    S/N-M-6M7-100156/ML-6M7-402511 & UP
  • 6
    10-84368M BOLT
    S/N-M-6M7-100156/ML-6M7-402511 & UP
    BOLT
    S/N-M-6M7-100156/ML-6M7-402511 & UP
  • 8
    12-82214M WASHER
    S/N-M-6M7-100156/ML-6M7-402511 & UP
    WASHER
    S/N-M-6M7-100156/ML-6M7-402511 & UP
  • 9
    94565M SHIFT ROD LEVER
    SHIFT ROD LEVER
  • 10
    18-82125M COTTER PIN
    COTTER PIN
  • 11
    83968M STOPPER
    STOPPER
  • 12
    10-94544M BOLT
    BOLT
  • 13
    84011M SHIFT ROD LINK
    SHIFT ROD LINK
  • 14
    18-82127M COTTER PIN
    COTTER PIN
  • 15
    12-82211M WASHER
    WASHER
  • 16
    84015M SHIFT ROD
    SHIFT ROD
  • 17
    11-82390M NUT
    NUT
  • 18
    11-81763M NUT
    NUT
  • 19
    17-84304M CLEVIS PIN
    CLEVIS PIN
