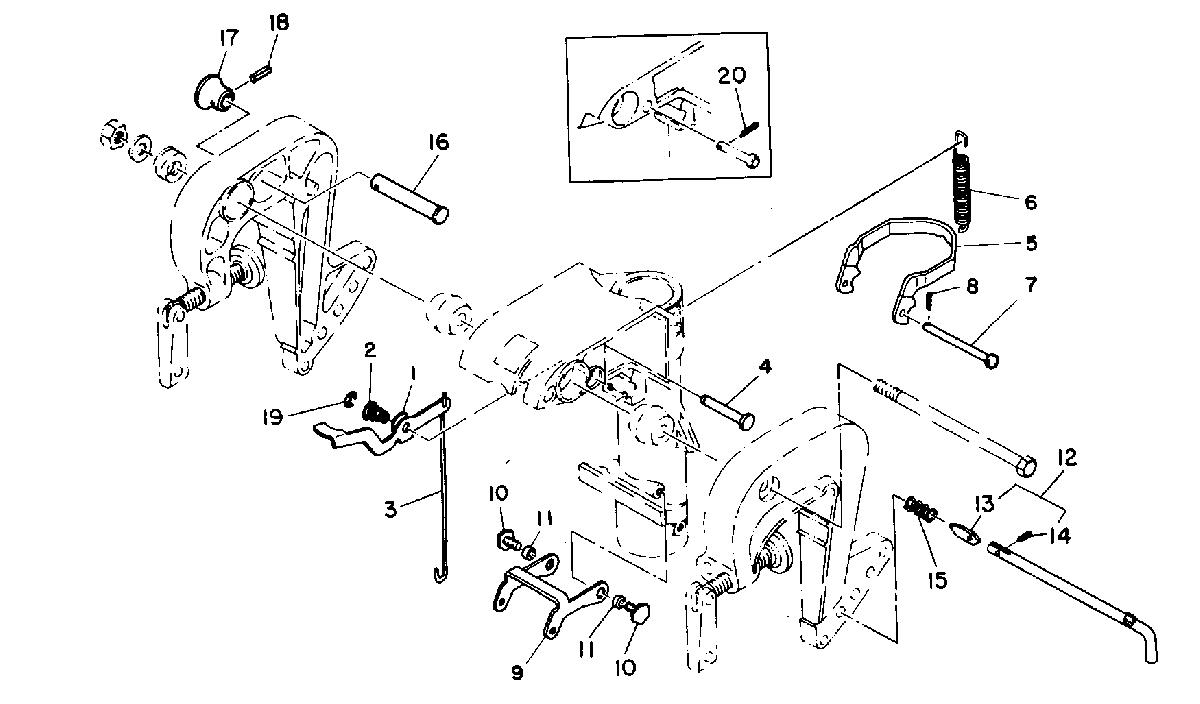

REVERSE LOCK для Mariner - 15A 651-000285 AND BELOW

  • №
    Артикул
    Название
  • 1
    80236M LEVER, LOCK/RELEASE
    SERIAL 00000000-00012755
    LEVER, LOCK/RELEASE
    SERIAL 00000000-00012755
  • 1
    82880M LEVER, LOCK/RELEASE
    SERIAL 00012756-09999999
    LEVER, LOCK/RELEASE
    SERIAL 00012756-09999999
  • 2
    24-82098M SPRING, LEVER RETURN
    SPRING, LEVER RETURN
  • 3
    80235M ROD, REVERSE LOCK LEVER
    ROD, REVERSE LOCK LEVER
  • 4
    17-18945M PIN
    SERIAL 00006921-09999999
    PIN
    SERIAL 00006921-09999999
  • 5
    80233M HOOK, REVERSE LOCK-REAR
    HOOK, REVERSE LOCK-REAR
  • 6
    24-82104M SPRING, REVERSE LOCK
    SPRING, REVERSE LOCK
  • 7
    17-81881M SHAFT, REVERSE LOCK
    SHAFT, REVERSE LOCK
  • 8
    18-82125M PIN, REVERSE LOCK SHAFT
    SERIAL 00000000-00009770
    PIN, REVERSE LOCK SHAFT
    SERIAL 00000000-00009770
  • 8
    18-82125M PIN, REVERSE LOCK SHAFT
    SERIAL 00009771-09999999
    PIN, REVERSE LOCK SHAFT
    SERIAL 00009771-09999999
  • 9
    80234M HOOK, REVERSE LOCK-FRONT
    HOOK, REVERSE LOCK-FRONT
  • 10
    10-81702M SCREW, REVERSE LOCK
    SCREW, REVERSE LOCK
  • 11
    23-81966M COLLAR, REVERSE LOCK SCREW
    COLLAR, REVERSE LOCK SCREW
  • 12
    17-80266M TILT LOCK PIN ASS'Y (SHORT)
    TILT LOCK PIN ASS'Y (SHORT)
  • 12
    17-80266M TILT LOCK PIN ASS'Y (LONG)
    TILT LOCK PIN ASS'Y (LONG)
  • 13
    80640M STOPPER PLATE
    SERIAL 00000000-00012755
    STOPPER PLATE
    SERIAL 00000000-00012755
  • 13
    82857M STOPPER PLATE
    SERIAL 00012756-09999999
    STOPPER PLATE
    SERIAL 00012756-09999999
  • 14
    17-82141M PIN
    SERIAL 00000000-00012755
    PIN
    SERIAL 00000000-00012755
  • 14
    17-82144M PIN
    SERIAL 00012756-09999999
    PIN
    SERIAL 00012756-09999999
  • 15
    24-82099M SPRING, TILT LOCK PIN
    SPRING, TILT LOCK PIN
  • 16
    17-81150M SHAFT, TILT STOP
    SHAFT, TILT STOP
  • 17
    95426M KNOB, TILT STOP
    KNOB, TILT STOP
  • 18
    17-82148M PIN, TILT STOP KNOB
    PIN, TILT STOP KNOB
  • 19
    53-82330M CIRCLIP
    SERIAL 00006921-09999999
    CIRCLIP
    SERIAL 00006921-09999999
  • 20
    18-43089M PIN, COTTER
    SERIAL 00000000-00006920
    PIN, COTTER
    SERIAL 00000000-00006920
