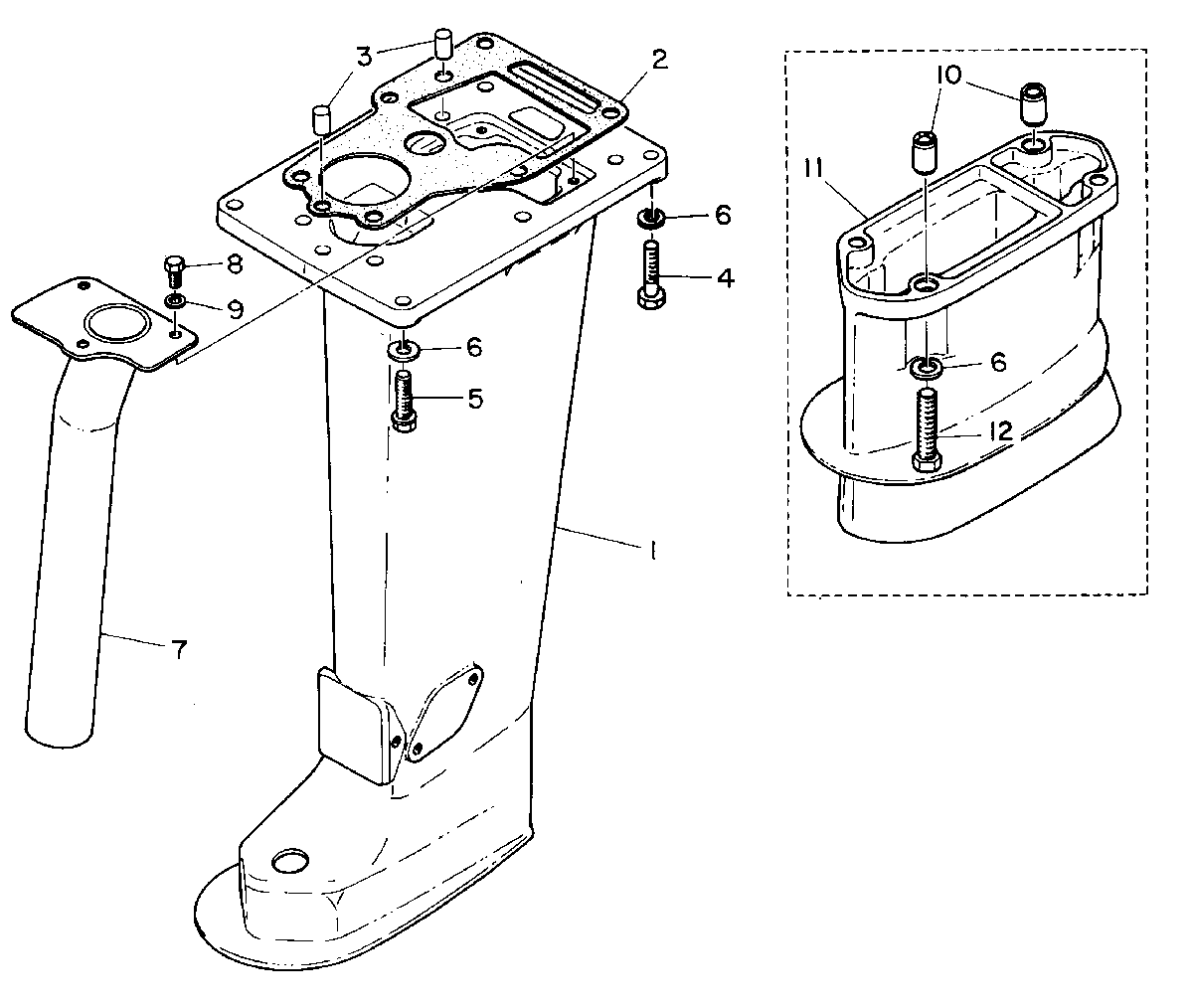

DRIVESHAFT HOUSING для Mariner - 15A 651-000285 AND BELOW

  • №
    Артикул
    Название
  • 1
    1587-6757M DRIVESHAFT HOUSING
    DRIVESHAFT HOUSING
  • 2
    27-80244M GASKET, DRIVESHAFT HOUSING-UPPER
    GASKET, DRIVESHAFT HOUSING-UPPER
  • 3
    17-82368M PIN, DOWEL-DRIVESHAFT HOUSING
    PIN, DOWEL-DRIVESHAFT HOUSING
  • 4
    10-95416M BOLT,DRIVESHAFT HOUSING ATTACHING
    SERIAL 00000000-00007241
    BOLT,DRIVESHAFT HOUSING ATTACHING
    SERIAL 00000000-00007241
  • 4
    10-95416M BOLT, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00007241-09999999
    BOLT, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00007241-09999999
  • 5
    10-43106M BOLT, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00039556-09999999
    BOLT, DRIVESHAFT HOUSING ATTACHING
    SERIAL 00039556-09999999
  • 6
    13-82215M LOCK WASHER
    LOCK WASHER
  • 7
    80943M MANIFOLD, EXHAUST
    MANIFOLD, EXHAUST
  • 8
    10-84313M BOLT, MANIFOLD ATTACHING
    BOLT, MANIFOLD ATTACHING
  • 9
    13-82186M LOCK WASHER, MANIFOLD BOLT
    LOCK WASHER, MANIFOLD BOLT
  • 10
    17-82163M PIN, DOWEL
    SERIAL 00000000-00012755
    PIN, DOWEL
    SERIAL 00000000-00012755
  • 11
    80910M EXTENTION, LONG SHAFT (141.7 MM)
    EXTENTION, LONG SHAFT (141.7 MM)
  • 12
    10-82442M BOLT, EXTENTION ATTACHING
    BOLT, EXTENTION ATTACHING
