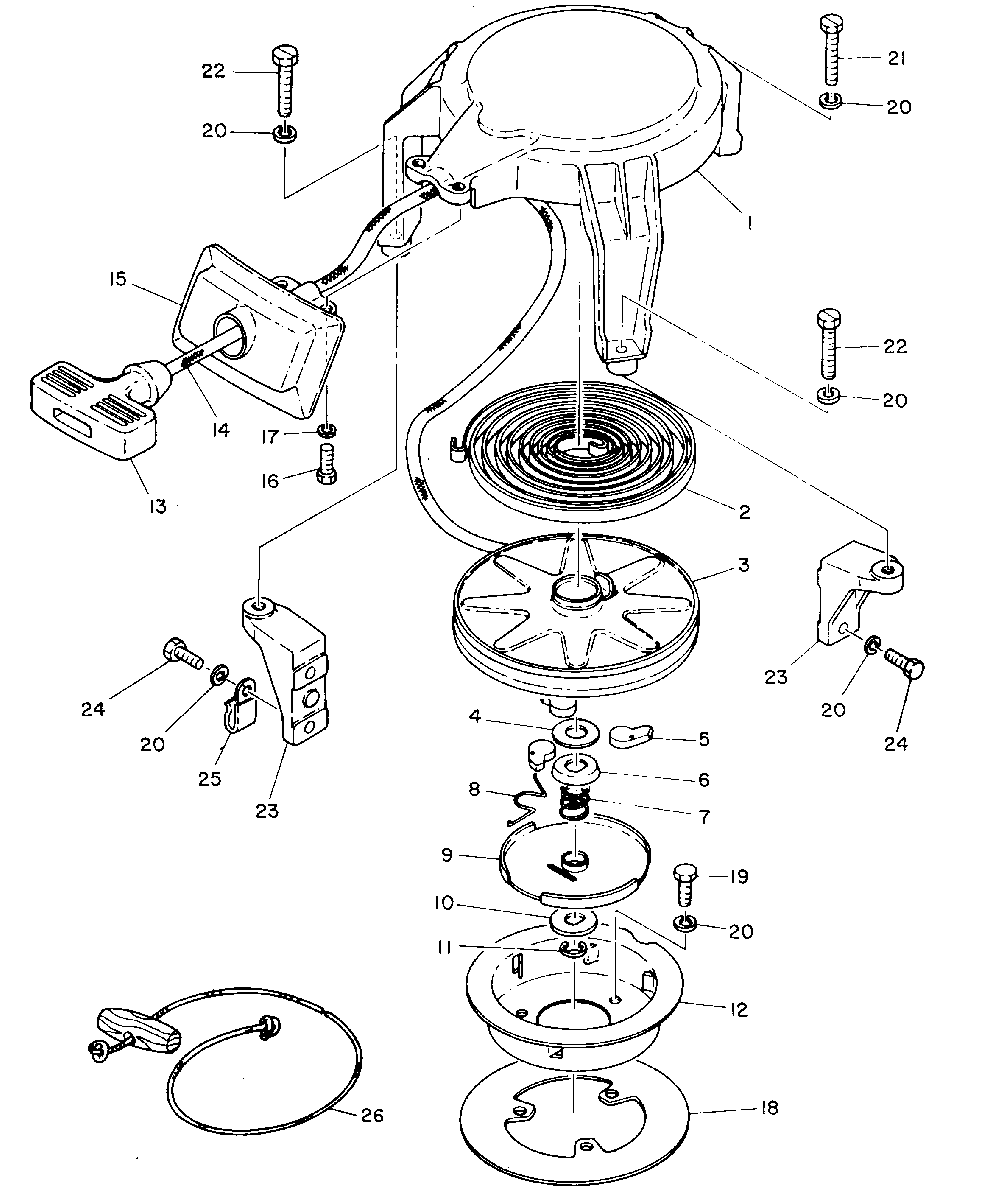

RECOIL STARTER для Mariner - 15A 651-000285 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    2169-6750M STARTER ASS'Y
    STARTER ASS'Y
  • 1
    2169-7174M HOUSING, STARTER
    HOUSING, STARTER
  • 2
    24-80207M SPRING, STARTER
    SPRING, STARTER
  • 3
    50-80208M STARTER, SHEAVE
    STARTER, SHEAVE
  • 4
    12-80213M WASHER, THRUST-SHEAVE STARTER
    WASHER, THRUST-SHEAVE STARTER
  • 5
    80214M PAWL, STARTER
    PAWL, STARTER
  • 6
    12-80211M WASHER, THRUST-PLATE SPRING
    WASHER, THRUST-PLATE SPRING
  • 7
    24-80209M SPRING, DRIVE PLATE
    SPRING, DRIVE PLATE
  • 8
    24-81696M SPRING, STARTER PAWL
    SPRING, STARTER PAWL
  • 9
    80210M DRIVE, PLATE
    DRIVE, PLATE
  • 10
    12-80212M WASHER, STARTER HOUSING STUD
    WASHER, STARTER HOUSING STUD
  • 11
    53-81693M SNAP RING, STARTER HOUSING STUD
    SNAP RING, STARTER HOUSING STUD
  • 12
    80747M PULLEY, STARTER
    PULLEY, STARTER
  • 13
    814491A1 HANDLE, STARTER
    HANDLE, STARTER
  • 14
    50-12066Q10 STARTER ROPE
    STARTER ROPE
  • 15
    80748M GUIDE, ROPE
    GUIDE, ROPE
  • 16
    10-826957M BOLT
    BOLT
  • 17
    13-82212M LOCK WASHER
    LOCK WASHER
  • 18
    81247M BASE, STARTER PULLEY
    BASE, STARTER PULLEY
  • 19
    10-826957M BOLT
    BOLT
  • 20
    13-82212M WASHER
    WASHER
  • 21
    10-81750M SCREW, HOUSING ATTACHING-REAR
    SCREW, HOUSING ATTACHING-REAR
  • 22
    10-81749M SCREW, HOUSING ATTACHING-FRONT
    SCREW, HOUSING ATTACHING-FRONT
  • 23
    80750M BRACKET, STARTER HOUSING
    SERIAL 00000000-00012755
    BRACKET, STARTER HOUSING
    SERIAL 00000000-00012755
  • 23
    82867M BRACKET, STARTER HOUSING
    SERIAL 00012756-09999999
    BRACKET, STARTER HOUSING
    SERIAL 00012756-09999999
  • 24
    10-82423M BOLT, STARTER BRACKET ATTACHING
    SERIAL 00000000-00012755
    BOLT, STARTER BRACKET ATTACHING
    SERIAL 00000000-00012755
  • 24
    10-826957M BOLT, STARTER BRACKET ATTACHING
    SERIAL 00012756-09999999
    BOLT, STARTER BRACKET ATTACHING
    SERIAL 00012756-09999999
  • 25
    54-82041M CLAMP
    CLAMP
  • 26
    47341A11 EMERGENCY STARTER ROPE
    EMERGENCY STARTER ROPE
